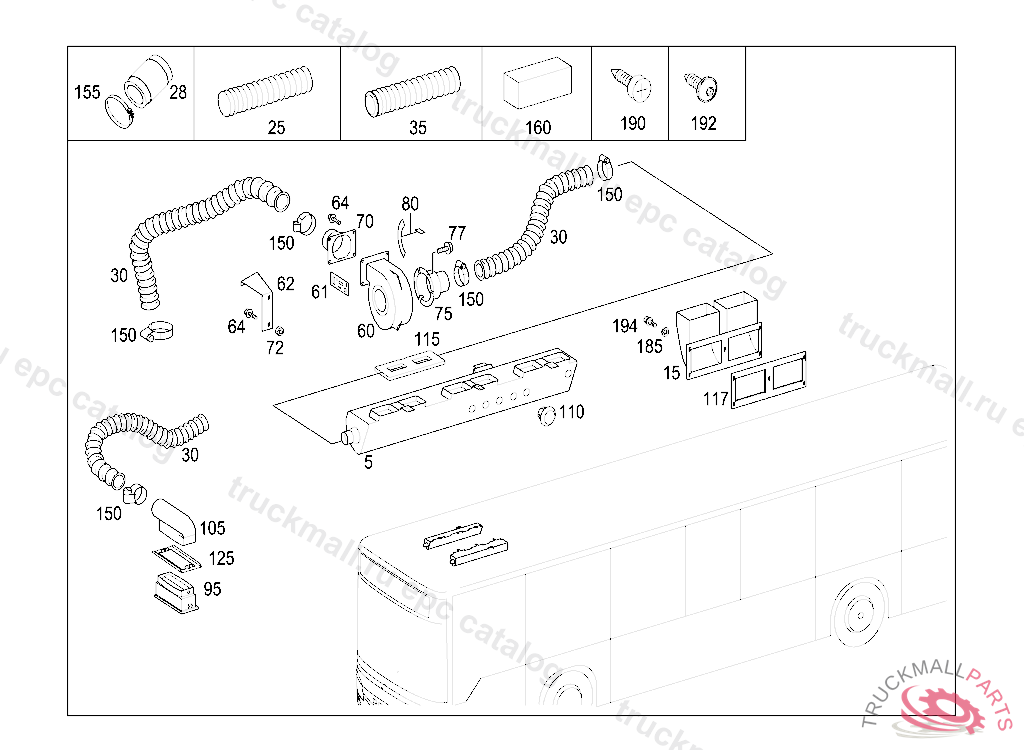

Поз.
Артикул
Описание
5
DUCT ABOVE FRONT AXLE,LEFT
5
DUCT ABOVE FRONT AXLE,RIGHT
5
DUCT ABOVE FRONT AXLE,LEFT
15
DUCT ABOVE FRONT AXLE
25
HOSE604MM/48MM, TO BE ADAPTED DURING ASSEMBLY
25
HOSE716MM/48MM, TO BE ADAPTED DURING ASSEMBLY
25
HOSE1168MM/48MM, TO BE ADAPTED DURING ASSEMBLY
25
HOSE493MM/48MM, TO BE ADAPTED DURING ASSEMBLY
25
HOSE275MM/48MM, TO BE ADAPTED DURING ASSEMBLY
25
HOSE1575MM/48MM, TO BE ADAPTED DURING ASSEMBLY
25
HOSE827MM/48MM, TO BE ADAPTED DURING ASSEMBLY
28
HOSE390MM/200MM, TO BE ADAPTED DURING ASSEMBLY
30
HOSE COWL VENTILATION,TOP 75MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
35
HOSE LENGTH: 725 MM/45 MM, TO BE ADAPTED DURING ASSEMBLY
35
HOSE300MM/60MM, TO BE ADAPTED DURING ASSEMBLY
35
HOSE1000MM/60MM, TO BE ADAPTED DURING ASSEMBLY
35
HOSE500MM/45MM, TO BE ADAPTED DURING ASSEMBLY
35
HOSE400MM/45MM, TO BE ADAPTED DURING ASSEMBLY
35
HOSE LENGTH: 800 MM/45 MM, TO BE ADAPTED DURING ASSEMBLY
35
HOSE1000MM/45MM, TO BE ADAPTED DURING ASSEMBLY
35
HOSE460MM/60MM, TO BE ADAPTED DURING ASSEMBLY
35
HOSE REAR LEFT,TOP 875MM/60MM, TO BE ADAPTED DURING ASSEMBLY
60
BLOWER
61
PRINTED CIRCUIT PLATE
62
BRACKET
64
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
64
SCREW , Replaced By: N910143008000
70
PIPE SOCKET BLOWER MOTOR
72
NUT HORN TO BRACKET M8
72
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
75
PIPE SOCKET BLOWER MOTOR, TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6288311325
75
FITTING BLOWER MOTOR, TO BE ADAPTED DURING ASSEMBLY
77
SCREW DIODE TO BRACKET
77
HEXALOBULAR BOLT CAN NEUTRAL POINT ON EQUIPMENT PLATE M4X12,V 202043
80
PLASTIC SECTION VOLTAGE TRANSFORMER 290 MM, ORDER BY THE METER
95
NOZZLE
105
CONNECTING PIPE TRANSVERSE DUCT RIGHT
110
FASTENER
115
FRAME SEAL
115
FRAME SEAL
117
FRAME SEAL
125
COVERING
150
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
150
CLAMP HOSE TO RETARDER 60-80X13 MM
155
CLAMP180-200X12MM
160
SEALING STRIP5880MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
185
WASHER LINE MOUNTING
190
SHEET METAL SCREW WIRE CABLE TO CAB
192
SCREW ROLLER BLIND TO BODY
192
TAPPING SCREW WIRE CABLE TO CAB 4.2X9.5
194
SCREW BRACKET AND CLAMP M6X20
