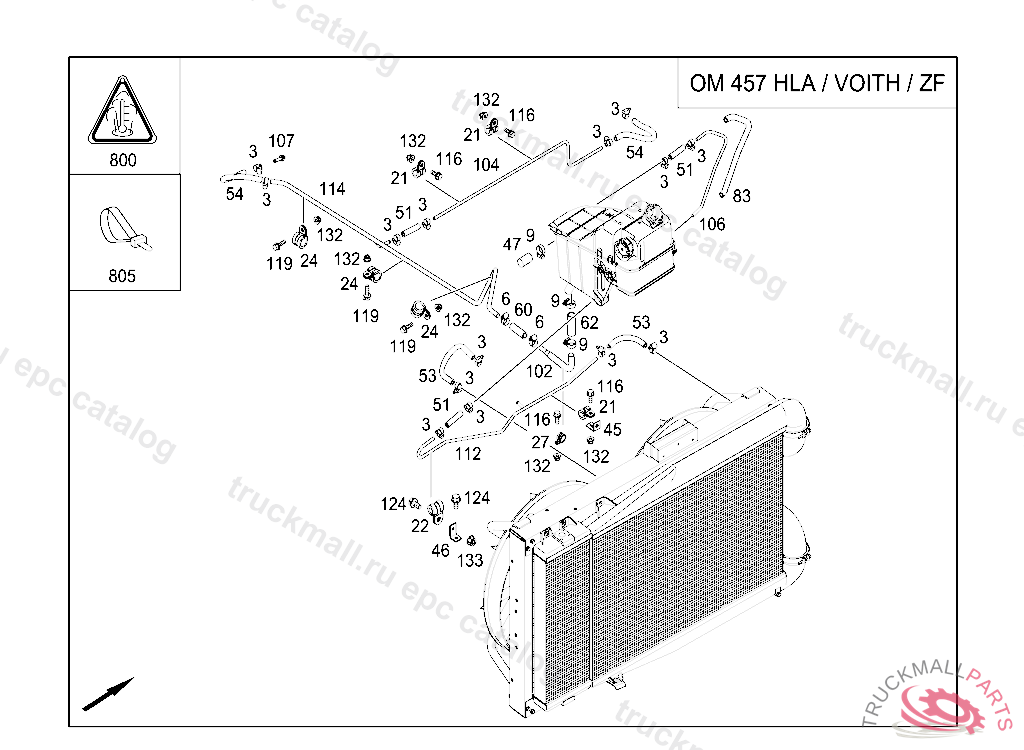

Поз.
Артикул
Описание
3
CLAMP HOSE TO FITTING 11 - 20 MM
6
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
9
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
21
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
22
CLAMP10/20MM
24
CLAMP LINE MOUNTING
27
CLAMP DELIVERY AND SUCTION LINES TO FRAME
45
BRACKET LINE MOUNTING
46
ANGLE
47
CAP EXPANSION TANK
51
HOSE10X19X85MM, TO BE ADAPTED DURING ASSEMBLY
51
HOSE10 X 19 X 85 MM, TO BE ADAPTED DURING ASSEMBLY
53
HOSE COOLING WATER LINE 10X19X240
53
HOSE10X19X240MM, TO BE ADAPTED DURING ASSEMBLY
54
HOSE COOLING WATER LINE
54
HOSE10X19X325MM
60
HOSE , Replaced By: N900271015037
60
HOSE15X24X80MM, TO BE ADAPTED DURING ASSEMBLY
62
HOSE22 X 31 X 80 MM, TO BE ADAPTED DURING ASSEMBLY
83
INSULATING HOSE. HOSE INSULATION ID12 MM / AD20 MM, ORDER BY THE METER
102
COOLING WATER PIPE
104
COOLING WATER PIPE
106
COOLING WATER PIPE
107
VENTILATION NECK COOLING WATER BREATHING
112
COOLANT LINE. LINE DE-AERATION PIPE TO RADIATOR
114
COOLANT LINE
116
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
116
SCREW , Replaced By: N914146006102
119
SCREW BRACKET AND CLAMP M6X20
124
SCREW , Replaced By: N910143008000
132
NUT BRACKET TO FIRE WALL
133
NUT HORN TO BRACKET M8
800
INFORMATION LABEL TEMPERATURE, COOLANT EXPANSION RESERVOIR (KWA) SELF-ADHESIVE
800
INFORMATION LABEL TEMPERATURE, RIGID PVC
805
LOOM TIE
