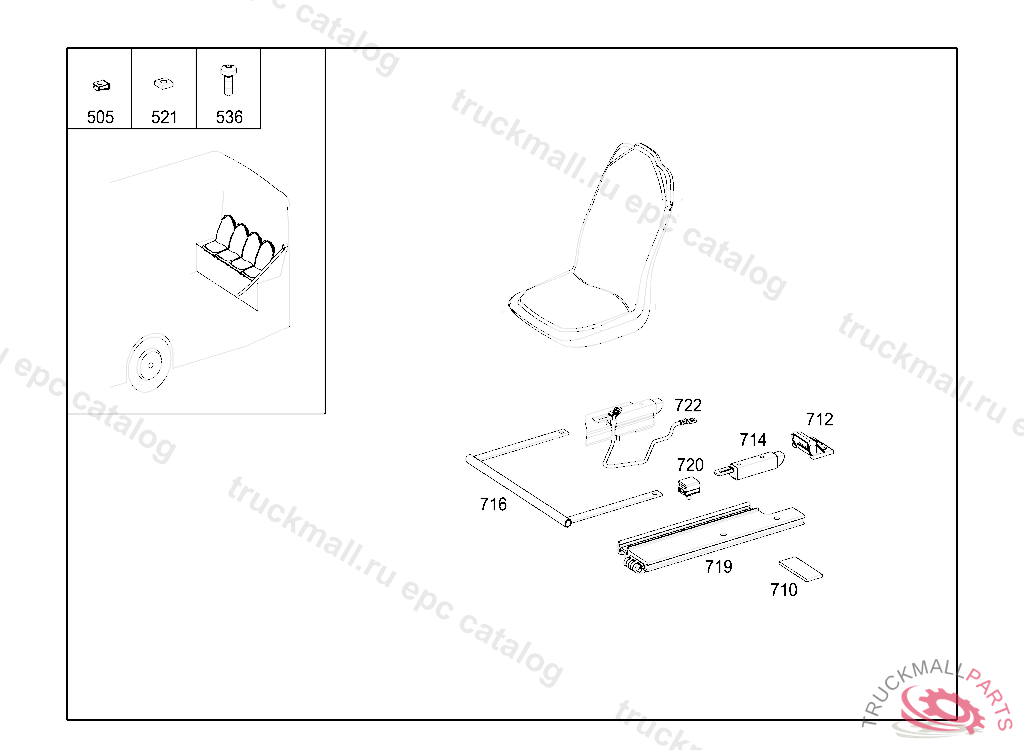

S 415 NF 3-TUERER - 628.788 - 95 SEATS
Поз.
Артикул
Описание
505
NUTM8
505
LOCK NUT. SPRING NUT MOUNTING PARTS
521
NUT CONDENSER TO RADIATOR
536
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
536
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
536
SCREWM10X40T50
536
SCREW BRACKET TO COVERING
536
SCREWM8X12
536
SCREW W SOCKET DRIVEM8X16, T45
536
HEXALOBULAR BOLT PIPE ELBOW TO BRACKET M8X16
536
SCREW CLAMP MOUNTING M 6X16
710
SUPPORT75MM X 30MM X 4MM
712
TAKE-UP DEVICE
714
LOCK
716
LOCKING MECHANISM
719
RAIL LEFT
719
RAIL RIGHT
720
BRACKET
722
RETAINING ROPE
