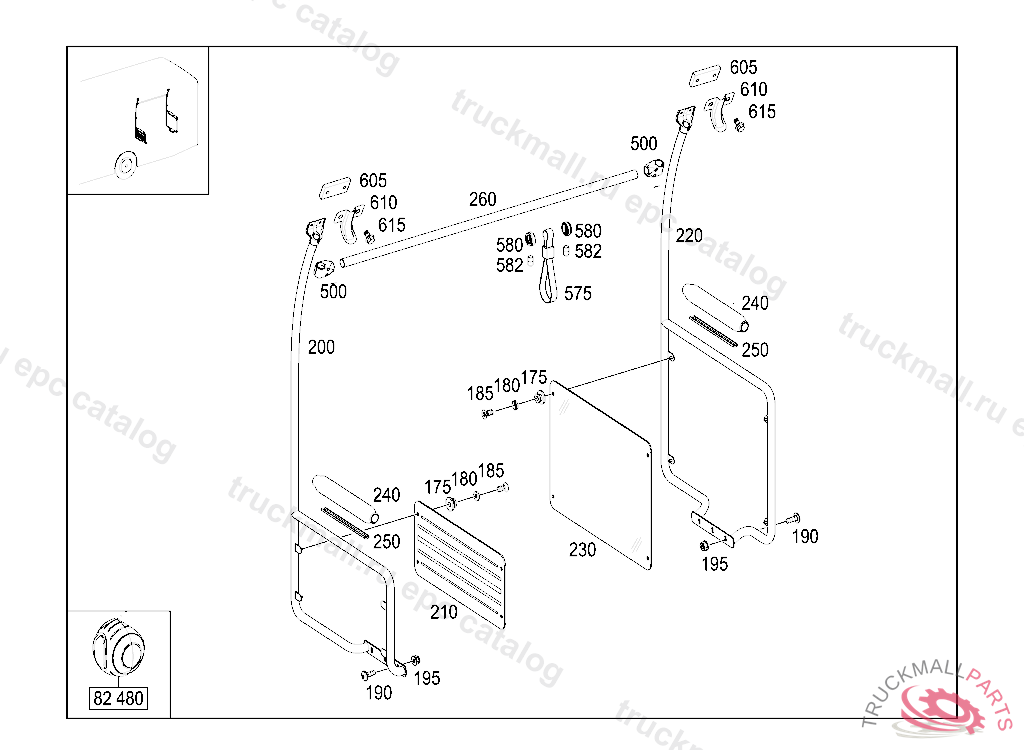

S 415 NF 3-TUERER - 628.788 - 71 PARTITION PANELS

Поз.
Артикул
Описание
175
A3577110043
MOUNTING
180
A6669900040
WASHER
185
A0019909920
SCREWM6X12 TX30
190
A0009901129
SCREWM 8X22, T40
195
N913023008006
NUT SHAFT TO THROTTLE VALVE, 401-403 , 421-423 , 441-443550204 407 , 409 , 427 , 429 , 44739905 404 , 424 , 44411324
200
A6287103701
PARTITION PANEL , .......I.......INR.7E87I.......I II
210
A3117112510
GLASS PANE
220
A6287103801
PARTITION PANEL , .......I.......INR.7E87I.......I II
230
A3117110610
GLASS PANE REAR
240
A6288151365
PAD
250
A3068150262
LEDGE LEFT AND RIGHT
260
A3578159553
GRIP RAIL1376 MM, .......I.......INO.7E87I.......I UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.01.2008
500
A6288150214
BRACKET
605
A6288150011
PLATE
610
A6288150714
BRACKET
615
N914112008032
SCREW COVER TO AXLE HOUSING
