Поз.
Артикул
Описание
123

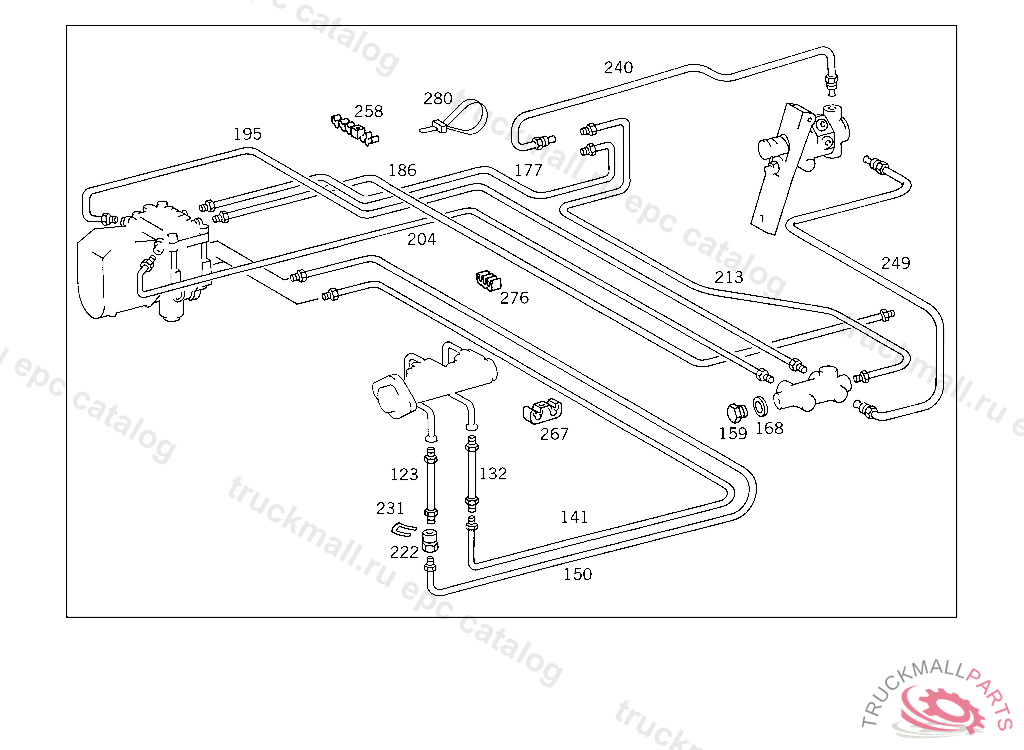

LINE FROM MASTER CYLINDER TO CONNECTOR
123
LINE FROM DISTRIBUTOR TO REAR RIGHT BRAKE HOSE
132
LINE FROM MASTER CYLINDER TO CONNECTOR
141
LINE FROM MASTER CYLINDER TO HYDRAULIC UNIT
150
LINE FROM MASTER CYLINDER TO HYDRAULIC UNIT
150
LINE FROM BRAKE POWER REGULATOR TO RIGHT FRONT WHEEL 2000 MM
159
SCREW PLUG AT DISTRIBUTOR
168
SEAL RING BRAKE CYLINDER STROKE INDICATOR
177
LINE FROM DISTRIBUTOR TO RIGHT BRACKET,097945
177
LINE FROM DISTRIBUTOR TO RIGHT BRACKET
177
LINE FROM MASTER CYLINDER TO FRONT LEFT BRAKE HOSE, 000 193701 003 097469 086 006508 093 007717 102,103 209243 183 013349 190 020074 193 000014 200 006559 283 001514 INAPPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)
186
LINE FROM BRAKE POWER REGULATOR TO RIGHT FRONT WHEEL 2000 MM
186
LINE FROM BRAKE POWER REGULATOR TO ADAPTER FITTING
195
LINE FROM MASTER CYLINDER TO REAR BRAKE PRESSURE REGULATOR
195
LINE FROM DISTRIBUTOR TO BRAKE POWER REGULATOR
204
LINE FROM BRAKE POWER REGULATOR TO RIGHT FRONT WHEEL 2000 MM
204
LINE FROM DISTRIBUTOR TO BRAKE POWER REGULATOR
213
LINE FROM DISTRIBUTOR TO RIGHT BRACKET,097946
213
LINE FROM DISTRIBUTOR TO RIGHT BRACKET,097945
213
LINE FROM DISTRIBUTOR TO LEFT WHEEL BRAKE CYLINDER 1165 MM
222
CONNECTOR BRAKE LINE MOUNTING
231
LOCK BRAKE HOSE TO FRAME
231
BRACKET BRAKE HOSE TO BRACKET
240
LINE FROM MASTER CYLINDER TO HOSE 2890 MM
240
LINE FROM CONNECTOR TO AUTOMATIC LOADDEPENDING BRAKE PRESSURE REGULATOR
249
LINE FROM PRESSURE RETAINING VALVE TO RIGHT REAR BRAKE HOSE 3090 MM,P 136599
249
LINE FROM BRAKE POWER REGULATOR TO ADAPTER FITTING
258
CLIP BRAKE LINE MOUNTING
258
LOCK ,111915
267
CLAMP , Replaced By: A6314310843
267
CLAMP BRAKE LINE MOUNTING
276
BRACKET AT SIDE MEMBER
280
LOOM TIE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 097945, Replaced By: A0004760536
280
LOOM TIE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 097945, Replaced By: A0039975690
999
RELAY (ENGINE RELAY) TO 001 431 80 12
999
RELAY SOLENOID VALVE TO 001 431 80 12
999
CLAMP BRAKE LINE MOUNTING
999
EXTENSION
999
EXTENSION
999
BODY SUPPORT , NOT USED
999
FRAME
999
FRAME
999
FRAME
999
FRAME
999
SUPPORT , NOT USED
999
BEARING BRACKET , NOT USED
999
BEARING BRACKET , NOT USED
999
LINE
999
LINE
999
LINE
999
LINE
999
RUBBER PAD BRAKE LINE MOUNTING
999
CLAMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 097945, Replaced By: A4639940148
999
GUIDE SIGN ANTI-LOCK BRAKING SYSTEM
999
LOOM TIE
999
GROMMET ,021972
999
GROMMET ,021972
