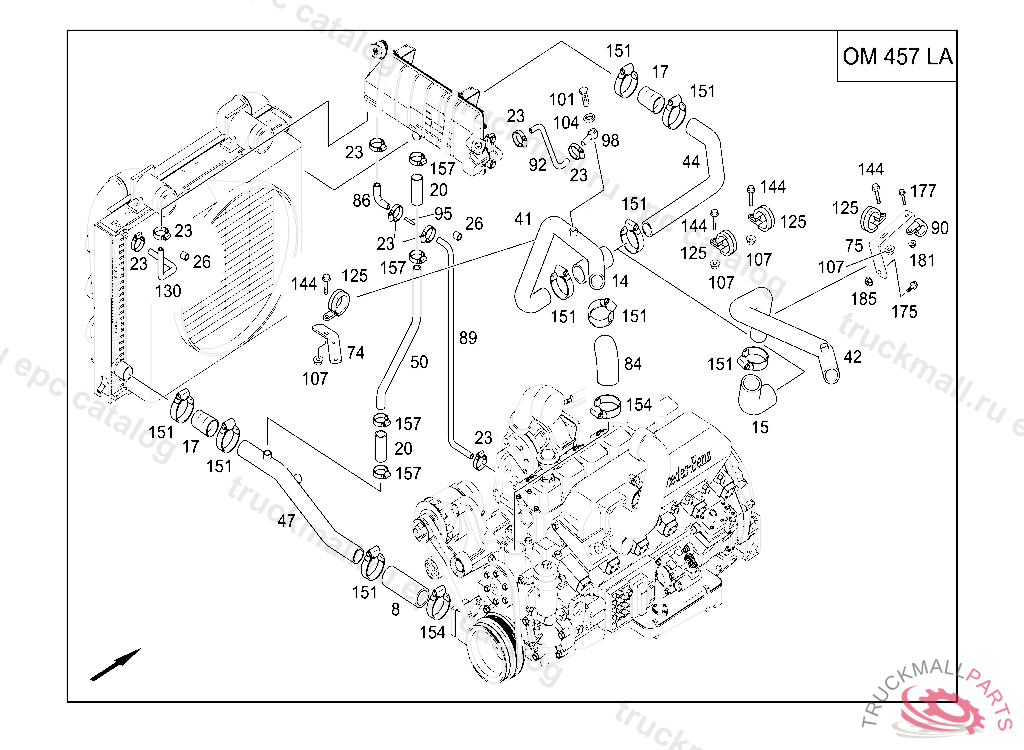

Поз.
Артикул
Описание
8
HOSE NARROWED STRAIGHT SURFACE 70/60MM
14
HOSE RETURN, FROM RETARDER TO ENGINE
14
HOSE RETURN, FROM RETARDER TO ENGINE, Replaced By: N000000005010
15
MOLDED HOSE 90-DEGREE ARC D60
17
MOLDED HOSE NARROWED STRAIGHT SURFACE 65/60
17
HOSE FEED AND RETURN LINES TO OIL COOLER, Replaced By: A0015013782
20
RADIATOR HOSE38X100MM, Replaced By: N000000004992
20
HOSE ,D 209702
23
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
26
THROTTLE
41
LINE FEED D60MM
42
COOLING WATER PIPE
44
COOLING WATER PIPE FEED D60MM
47
COOLING WATER PIPE COOLING WATER RETURN D60MM
50
COOLING WATER PIPE38X1X60MM
74
BRACKET
75
BRACKET ALTERNATOR
84
MOLDED HOSE ARC REDUCED 90 DEGREES 70/60MM
86
MOLDED HOSE ARC REDUCED 90 DEGREES 15/10MM
89
HOSE10X19X850MM
89
RADIATOR HOSENW10/L850MM, Replaced By: N000000004939
90
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
90
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RSGU 20/15
92
HOSE12X21X350MM
92
RADIATOR HOSE , Replaced By: N000000004947
92
HOSE
95
COOLING WATER PIPEL60MM
98
BANJO UNION DE-AERATION LINE TO THERMOSTAT
98
BANJO UNION SUCTION LINE
101
HOLLOW SCREWA15
101
HOLLOW SCREW , Replaced By: N915036015201
104
SEAL RING VALVE TO VALVE,K 025179
107
NUT , Replaced By: N913023010002
125
CLAMP60/25RSGU
125
CLAMP60/25
130
BLEED HOSE WITH CHECK VALVE 180MM
144
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
144
SCREWM 10X20
151
CLAMP CONNECTION OF COOLING WATER LINES 55-75X13MM
151
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
154
CLAMP
157
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
175
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
177
SCREW BRACKET AND CLAMP M6X20
181
NUT BRACKET TO FIRE WALL
185
NUT BRACKET TO SIDE MEMBER M12X1.5
