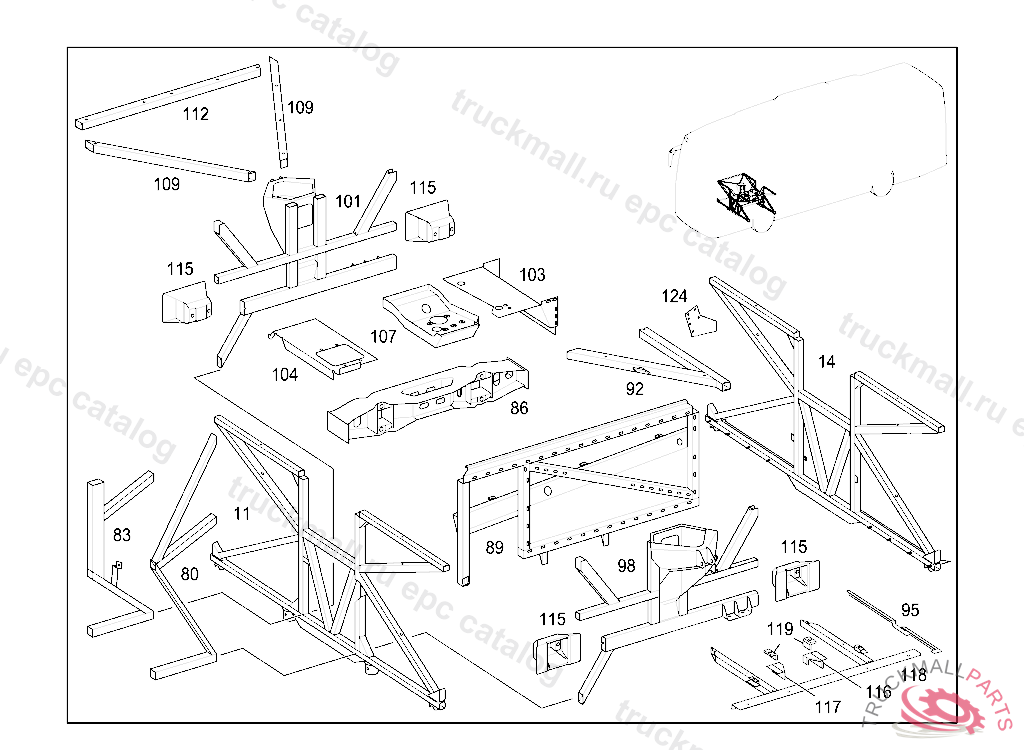

TRAVEGO 15 SHD 2 - ACHSER - 632.010 - 61 SUBSTRUCTURE
Поз.
Артикул
Описание
11
CROSS MEMBERQT 3
11
CROSS MEMBER3
14
CROSS MEMBER4
14
CROSS MEMBERQT 4
80
FRAME GIRDER LEFT
83
FRAME GIRDER ABOVE FRONT AXLE,RIGHT
86
CROSS MEMBER
86
CROSS MEMBER
89
BEAM RIGHT
89
ENTRANCE SUPPORT LEFT
89
ENTRANCE SUPPORT RIGHT
89
BEAM LEFT
92
SIDE MEMBER
95
ANGLE
98
SIDE MEMBER FRONT AXLE,LEFT
101
SIDE MEMBER FRONT AXLE,RIGHT
103
COVERING REAR
104
COVERING FRONT
104
COVERING
107
CROSS MEMBER
109
SUPPORT1038MM
112
SUPPORT1287MM
115
MOUNTING , Replaced By: A6296115027
115
BEARING FORMED PART
116
BRACKET RIGHT
117
BRACKET LEFT
118
SIDE MEMBER
119
ANGLE
124
BRACKET
