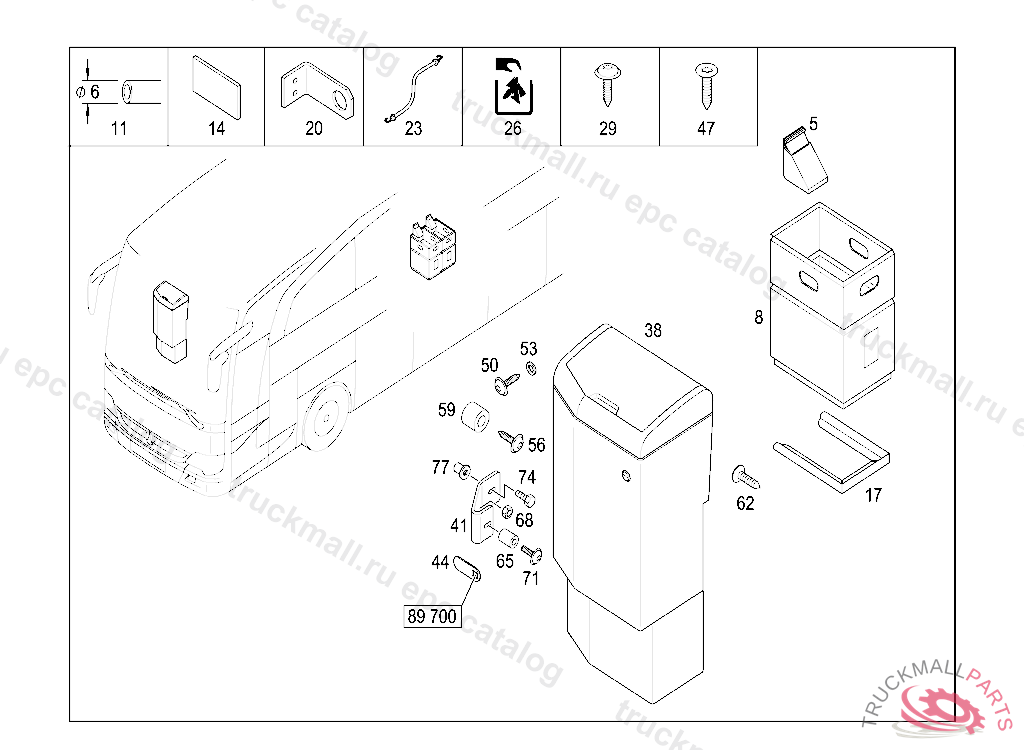

Поз.
Артикул
Описание
5
HINGED DOOR LITTER-BIN
5
FLAP LITTER-BIN
8
CONTAINER
11
RUBBER STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
14
PLATE SIDE PANEL
17
ANGLE
20
ANGLE
23
BAND (RUBBER TENSIONING STRAP)
26
KEYHOLE COVER LITTER-BIN
26
KEYHOLE COVER LITTER-BIN
29
TAPPING SCREW3.5X22
38
WARDROBE
38
WARDROBE
38
DRIVER'S CABINET , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.01.2009
41
BRACKET
44
LATCH PLATE
47
TAPPING SCREW BRACKET MOUNTING
47
TAPPING SCREW BRACKET TO PLATE 4.8X38
47
TAPPING SCREW3,5X13
50
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
50
TAPPING SCREW4.8X38
53
WASHER BRACKET TO CAB REAR PANEL
53
WASHER
56
TAPPING SCREW4,8X60
59
STOP BUFFER
59
RUBBER BUFFER
62
TAPPING SCREW2,9X9,5
65
SPACER TUBE
68
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
71
SCREW CLAMP ON BRACKET
71
SCREW
74
HEXALOBULAR BOLT UNDERRUN PROTECTION TO CROSS MEMBER M8X90
74
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
77
RIVETED NUTM8
