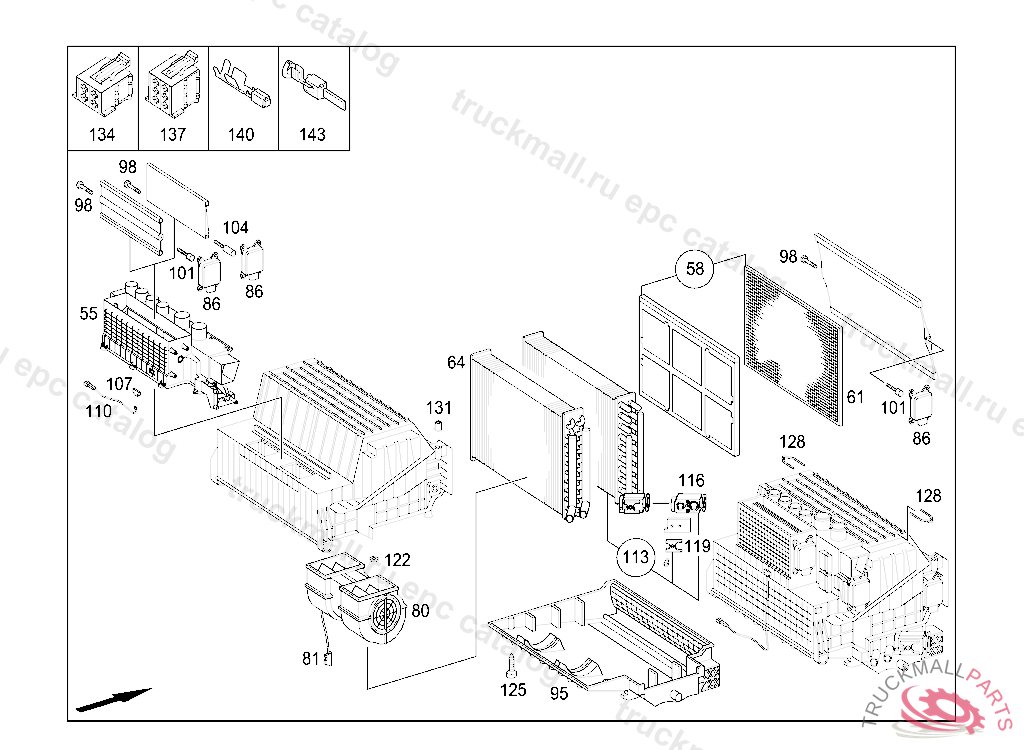

TRAVEGO 15 SHD 2 - ACHSER - 632.010 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
55
AIR DISTRIBUTOR
58
FRAME WITH FILTER ELEMENT BEHR
61
FILTER
64
HEAT EXCHANGERBEHR
80
RADIAL BLOWER
81
CABLE HARNESS BLOWER BEHR
86
ELECTRIC MOTOR , Replaced By: A0068207842
86
SERVO-D.C. W.GEARBOX
95
HOUSING LOWER PART BEHR
98
MOUNTINGBEHR
101
CONNECTOR SHORT BEHR
104
CONNECTOR LONG
107
SENSOR
110
CABLE HARNESS
113
EVAPORATOR
116
VALVEBEHR
119
PLATEBEHR, Replaced By: A0008353311
119
PLATE
122
SHIMBEHR
125
SCREWM4X14,BEHR
128
BRACKET FUSE
131
SLEEVEBEHR
134
PLUG
137
PIN BUSHING HOUSING 6-POLE
140
CONTACT SPRING0,2-0,5 MM2
143
PLUG0,5 - 1,0 MM2
