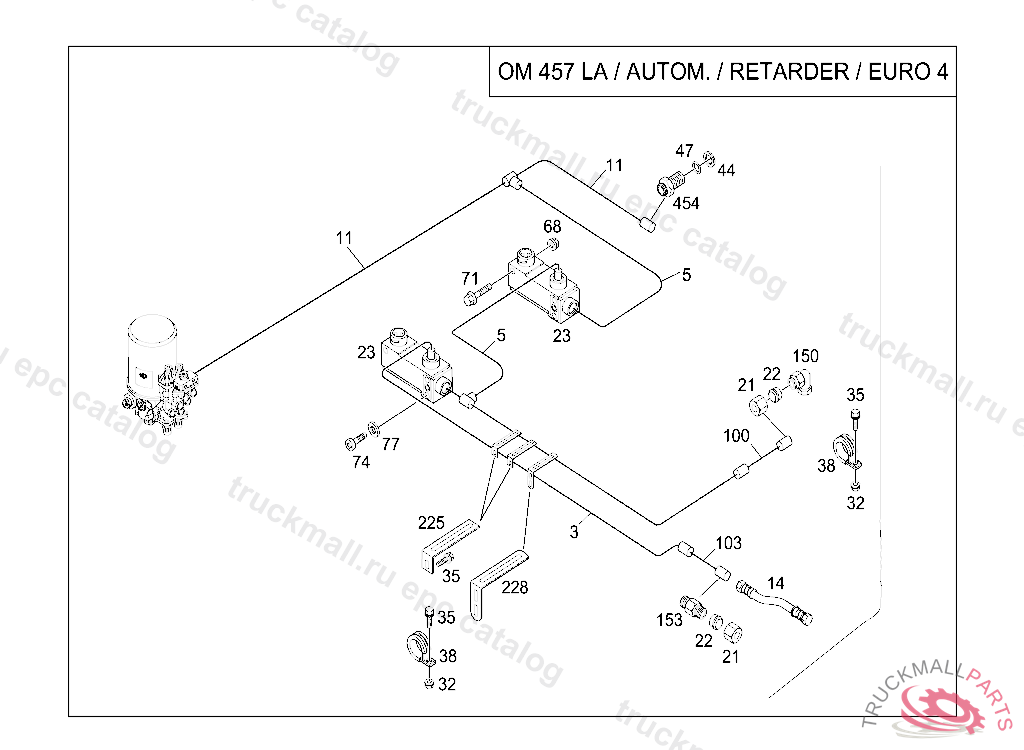

Поз.
Артикул
Описание
3
PLASTIC PIPE RISING PIPE 4X6 MM
5
PLASTIC PIPE AERATION, ORDER BY THE METER
11
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
14
HOSE DELIVERY LINE TO POWER CYLINDER
21
NUTM 14 X 1,5AL
21
UNION NUT
22
GLANDBS6
22
CUTTING RINGBS8
23
3-2-WAY PNEUMATIC VALVE (3/2-WAY SOLENOID VALVE)
23
SOLENOID VALVE (3/2-WAY SOLENOID VALVE)
23
VALVE (3/2-WAY SOLENOID VALVE) ENGINE SHUT-OFF EKS, REPAIR IMPOSSIBLE
23
VALVE (3/2-WAY SOLENOID VALVE) ENGINE SHUT-OFF WABCO
32
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
35
SCREW BRACKET TO SIDE MEMBER M8X20
35
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
35
SCREW SPEED SENSOR TO REAR AXLE
35
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
35
SCREWM 10X20
35
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
35
SCREW BRACKET AND CLAMP M6X20
35
SCREW SHIFT LEVER TO BRACKET M8X30
35
SCREW , Replaced By: N910143008000
38
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
38
CLAMP LINE MOUNTING 15-18 MM,V 207570
38
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
38
CLAMP6/15, Replaced By: N000000007509
38
CLAMP BRAKE HOSE BRACKET
38
CLAMP PIPE ON FAN SHROUD
38
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RSGU 20/15
38
CLAMPRSGU S 18/15
38
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
38
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 6/15
38
CLAMP LINE MOUNTING 8/15
44
SEAL RING LINE CONNECTION
44
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
44
THRUST RING CHECK VALVE TO AIR RESERVOIR
47
O-RING CHECK VALVE TO AIR RESERVOIR
68
NUT ENGINE MOUNTING M8
71
HEXALOBULAR BOLT SOLENOID VALVE TO BRACKET M8X100
71
HEXAGON HEAD BOLT. SCREW 3/2-WAY VALVE TO BRACKET M 8X100
74
SCREWM6X12 TX30
77
SEAL RINGBOSCH
100
103
150
150
FITTING FROM PUMP TO CYLINDER
153
FITTING , Replaced By: A0029906071
153
FITTING PARKING BRAKE VALVE,CONNECTION: "23"
153
FITTING , Replaced By: A0039979072
225
BRACKET140X44
228
BRACKET
228
454
FITTING (CHECK VALVE) NG12/M22X1.5, FROM IDENT NO. WEB 105309 ALSO INSTALLED ON 104831-104930,104931-105130,105261,105268-105295,105307. EXCEPT 105317,105318,105324,105382,105388. FROM IDENT NO. VF9 300289 ALSO INSTALLED ON 300046,300282-300284.
