Поз.
Артикул
Описание

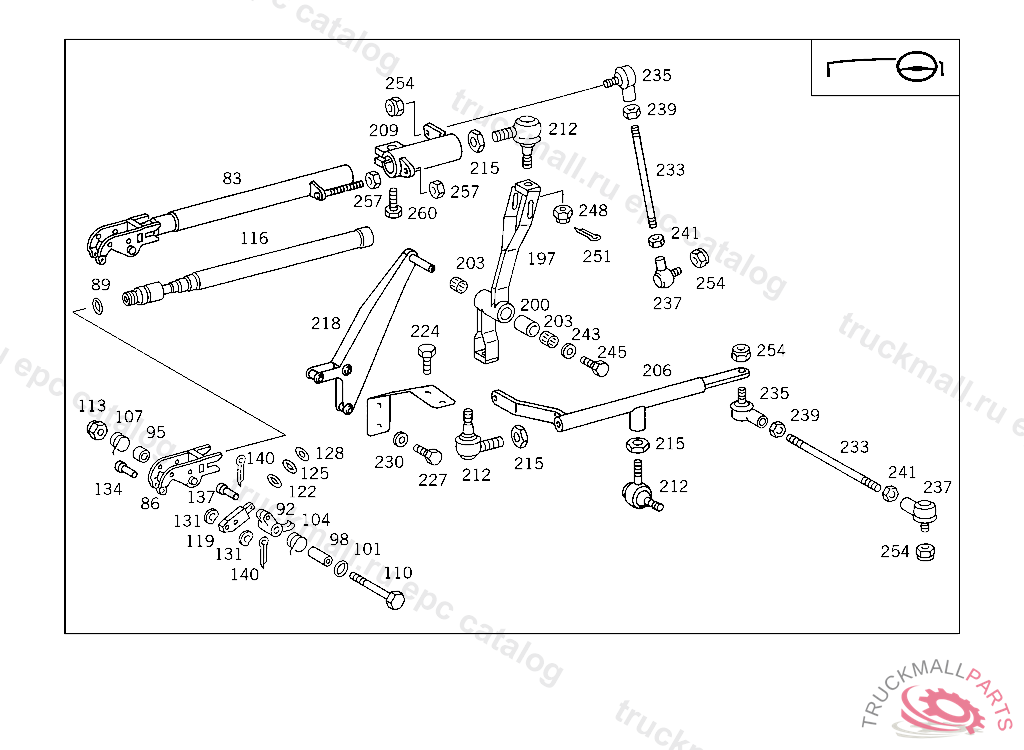

83
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
86
ROD END HYDRAULIC RELEASE
89
SEAL RING HYDRAULIC RELEASE
92
PAWL SHIFTING ROD,5 443048
92
PAWL ,5 4430475 443048, Replaced By: A6202600087, +001A6202680150
95
BUSHING PAWL TO ROD END,5 443048
95
BUSHING PAWL TO ROD END,5 443048
95
BUSHING PAWL TO ROD END,5 443047
98
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
101
ROUND CORD RING. SEAL RING ROD END
104
SPRING ROD END
107
SPRING ROD END
110
SCREW SHIFTING ROD TO SHIFT LEVER
110
SCREW , Replaced By: N000933010192
113
NUT , Replaced By: N910113010000
113
NUT STRAP TO BRACKET
116
SHIFTING TUBE (TELESCOPIC TUBE)
119
SHIFTING CYLINDER HYDRAULIC RELEASE WABCO
119
SHIFTING CYLINDER HYDRAULIC RELEASE TECHNOMATIK
122
SEAL RING PISTON RINGS WABCO
125
SEAL RING SCREW FITTING WABCO
128
SEAL RING OUTSIDE WABCO
131
SPRING WASHER SHIFTING CYLINDER TO YOKE
134
PIN SHIFTING CYLINDER TO YOKE 8X45 MM
137
PIN SHIFTING CYLINDER TO PAWL 8X20 MM
140
COTTER PIN LEVER TO ROD
140
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
