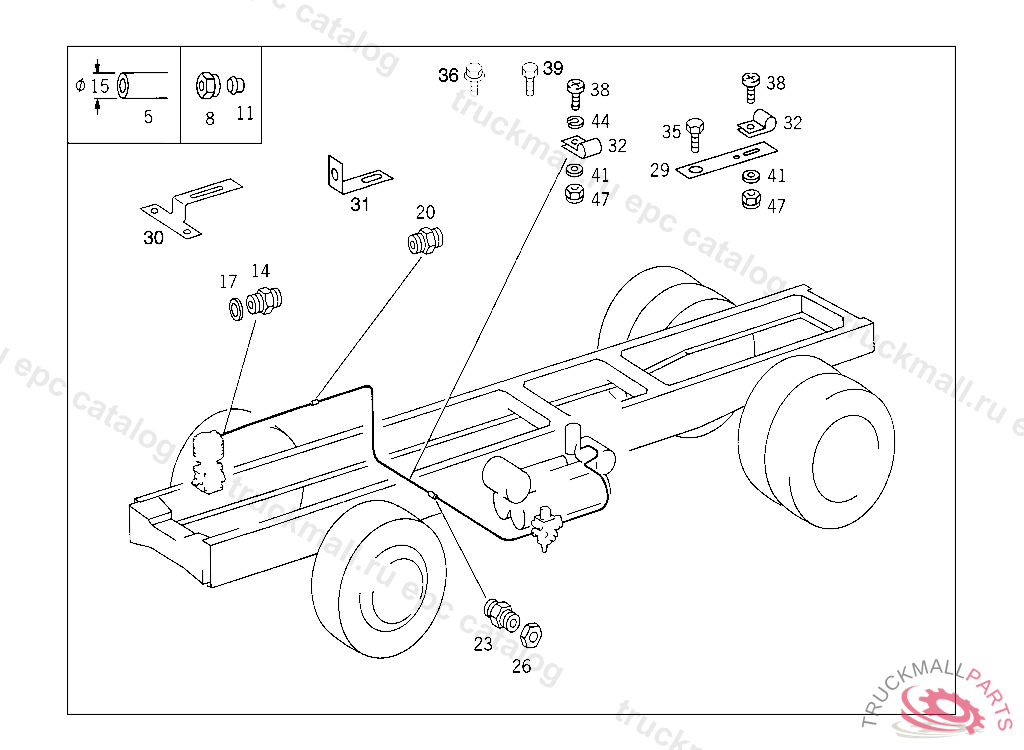

Поз.
Артикул
Описание
5
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
14
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
17
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
20
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
23
BULKHEAD FITTING THROUGH SIDE MEMBER
26
NUT CHECK VALVE TO AIR RESERVOIR
29
BRACKET LINE MOUNTING
32
CLAMP DELIVERY AND SUCTION LINES TO STEERING
32
CLAMP , Replaced By: A6739950001
35
SCREW BRACKET TO SUPPORT M 16X20
35
SCREW BRACKET TO SUPPORT M 16X16
38
SCREW CLAMP MOUNTING M 6X16
38
SCREW , Replaced By: N000000001146
41
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
41
WASHER COMPRESSED AIR LINE TO BRACKET
44
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
47
NUT PUMP TO BRACKET
47
NUT , Replaced By: N913004006001
