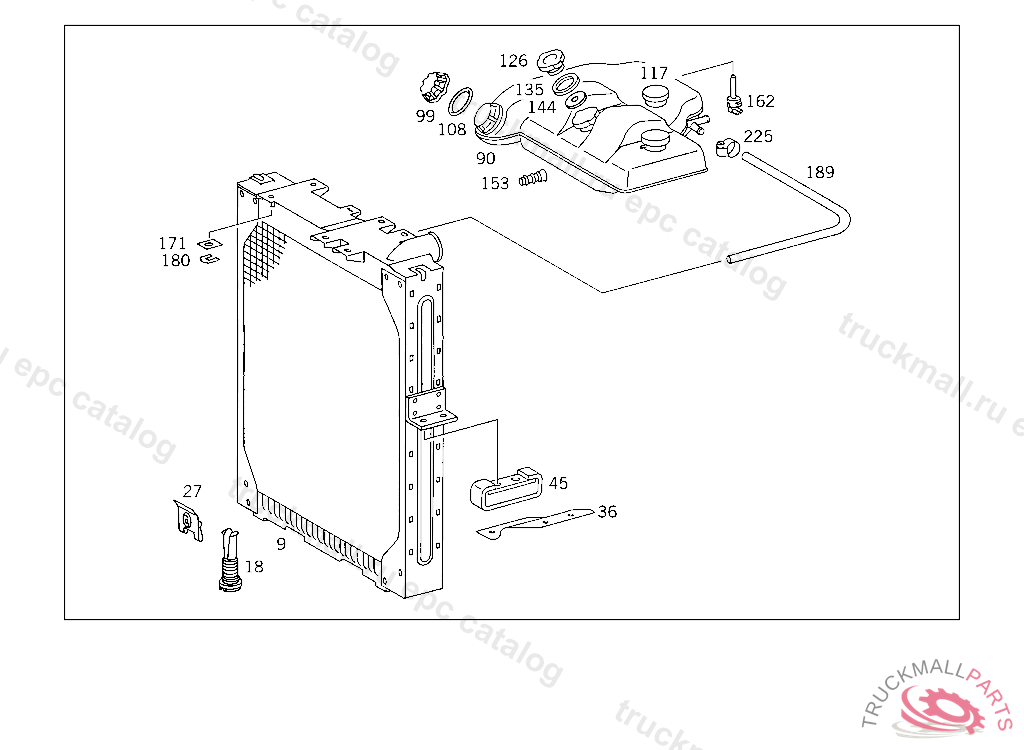

Поз.
Артикул
Описание
9
RADIATOR WATER
18
SCREW WATER DRAIN
27
LOCK
36
SUPPORT RADIATOR,LEFT,K 096749
45
RUBBER MOUNTING RADIATOR
90
TANK COOLING WATER EXPANSION
99
RADIATOR CAP FILLER NECK
99
RADIATOR CAP , Replaced By: A0005016415
108
SEAL RING
117
RADIATOR CAP
126
RADIATOR CAP CENTRAL
126
RADIATOR CAP CENTRAL
135
GASKET O.D., 52 MM
144
GASKET O.D., 37 MM
153
DRAIN PIPE
162
SENDER UNIT COOLING WATER LEVEL INDICATOR
171
PLATE FROM EXPANSION TANK TO RADIATOR 48X40 MM
171
PLATE FROM EXPANSION TANK TO RADIATOR 40X40 MM
180
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
189
HOSE FROM EXPANSION TANK TO ENGINE
225
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
225
CLAMP , Replaced By: N916017011001
