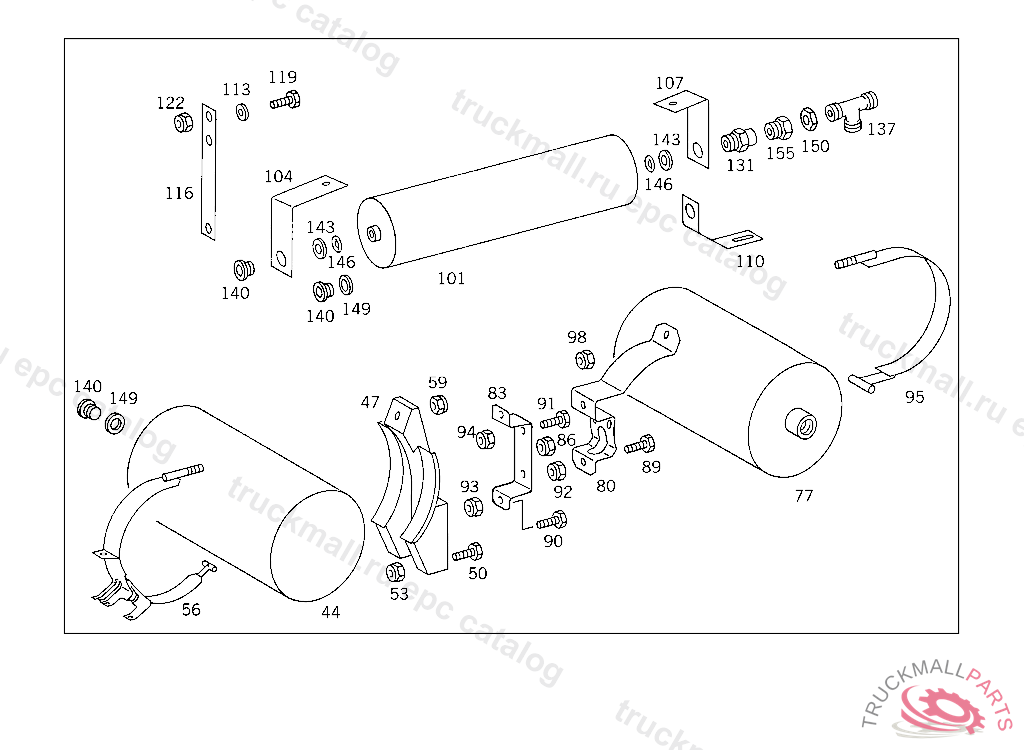

Поз.
Артикул
Описание
44
RESERVOIR SPRING LOAD ACCUMULATOR 20 L, Replaced By: A0034321601
44
RESERVOIR20L,276 MM,8.5 BAR
47
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
50
SCREW , Replaced By: A0089907401
50
SCREW BRACKET TO SIDE MEMBER,K 168169
53
NUT , Replaced By: N913004008001
53
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
53
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
56
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
59
NUT STRAP TO BRACKET
59
NUT , Replaced By: N910113010000
77
RESERVOIR10L,206 MM,8.5 BAR
77
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
80
BRACKET CLUTCH BOOSTER AIR RESERVOIR
86
NUT STRAP TO BRACKET
86
NUT , Replaced By: N910113010000
91
SCREW BRACKET TO FRAME SIDE MEMBER
94
NUT END PIECE TO EXHAUST PIPE
95
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
95
STRAP AIR RESERVOIR TO BRACKET
98
NUT STRAP TO BRACKET
98
NUT , Replaced By: N910113010000
101
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0024325001
101
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0034320501
101
RESERVOIR5.6L,114,3 MM,10 BAR
116
BRACKET BRACKET TO SIDE PART,FRONT,5 433281, Replaced By: A3974922841
116
BRACKET BRACKET TO SIDE PART,FRONT,5 433281
119
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
122
NUT , Replaced By: N910113010000
122
NUT STRAP TO BRACKET
131
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
137
T-FITTING LINE CONNECTION
140
SCREW PLUG , Replaced By: N000908022011
140
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
143
THRUST RING CHECK VALVE TO AIR RESERVOIR
143
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
146
O-RING CHECK VALVE TO AIR RESERVOIR
149
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
150
NUT CHECK VALVE TO AIR RESERVOIR
155
SCREW. UNION SCREW , Replaced By: A0009973734
155
SCREW. UNION SCREW LINE CONNECTION
