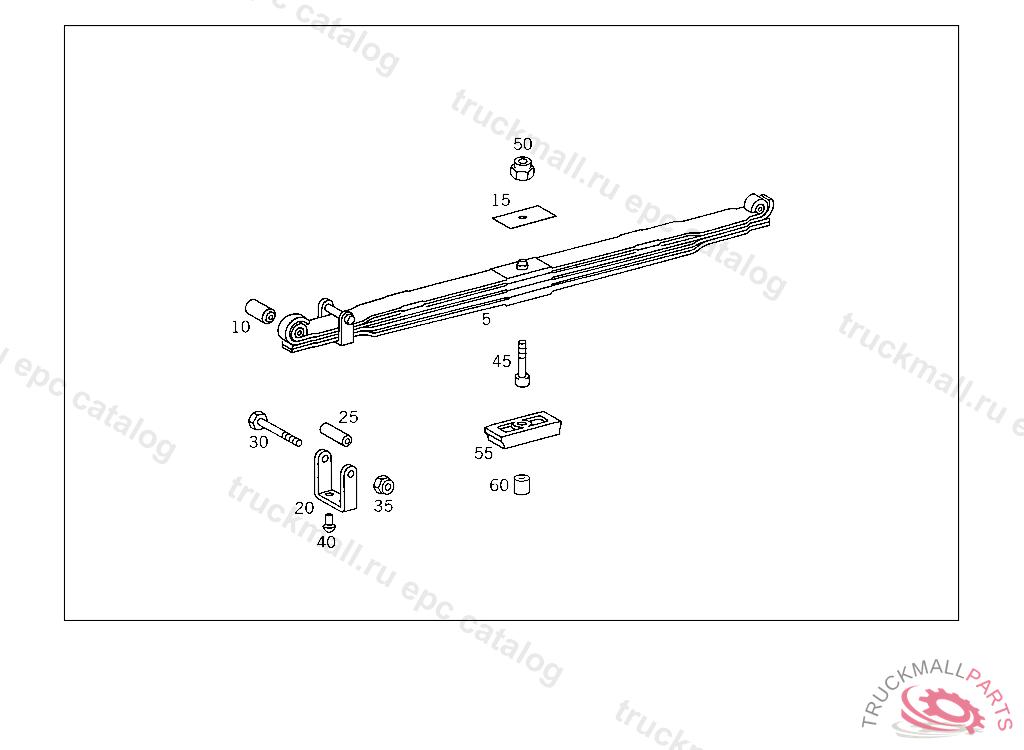

Поз.
Артикул
Описание
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "3"
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
10
RUBBER MOUNTING
10
RUBBER MOUNTING
15
SHIM
20
SPRING CLAMP , Replaced By: A6173210333
20
SPRING CLAMP TO SPRING LEAF NO.4,5 484790
20
SPRING CLAMP ,5 940410
20
SPRING CLAMP ,5 484790
20
SPRING CLAMP ,5 484790
25
SPACER TUBE SPRING CLAMP
25
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
30
SCREW , Replaced By: N308765012007
30
SCREW FOR SPRING CLAMPS,5 484789
30
SCREW SPRING CLAMP TO SPRING LEAF,5 484790
35
NUT SUPPORT TO SIDE MEMBER
40
RIVET SPRING CLAMP TO SPRING LEAF,5 940410
40
RIVET SPRING CLAMP TO SPRING LEAF
45
SPRING BOLT
45
SPRING BOLT
45
SPRING BOLT
50
NUT , Replaced By: N910113012005
50
HEXAGON NUT. NUT SPRING BOLT
55
SHIM FRONT AXLE TO FRONT SPRINGS
55
SHIM FRONT AXLE TO FRONT SPRINGS
55
SHIM FRONT AXLE TO FRONT SPRINGS
60
DOWEL PIN FRONT AXLE TO FRONT SPRINGS
999
U-BOLT FRONT SPRINGS TO FRONT AXLE 250 MM
