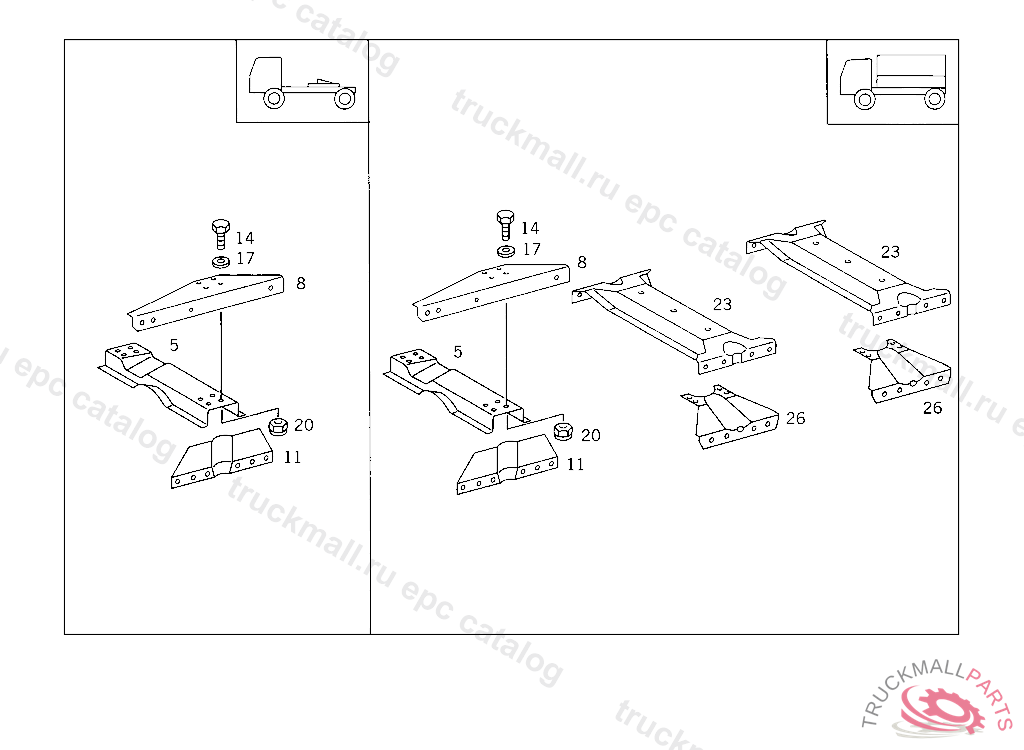

Поз.
Артикул
Описание
5
CROSS MEMBER BATTERY/APPARATUS SUPPORT NO.3, TO BE ADAPTED DURING ASSEMBLY
8
GUSSET PLATE TOP RIGHT, TO BE ADAPTED DURING ASSEMBLY
8
GUSSET PLATE TOP LEFT, TO BE ADAPTED DURING ASSEMBLY
11
STRUT BOTTOM RIGHT
11
STRUT BOTTOM LEFT
14
SCREW STRUT TO CONSOLE
14
SCREW STRUT TO CONSOLE
17
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
20
NUT STRAP TO SUPPORT
20
NUT STRAP TO SUPPORT
23
CROSS MEMBERNO.5A
26
REINFORCEMENT LEFT AND RIGHT TO 617 312 01 17
999
SCREW , Replaced By: N308676014003
999
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
999
NUT STEERING SUPPORT TO FRAME
999
NUT , Replaced By: N910113014000
