Поз.
Артикул
Описание

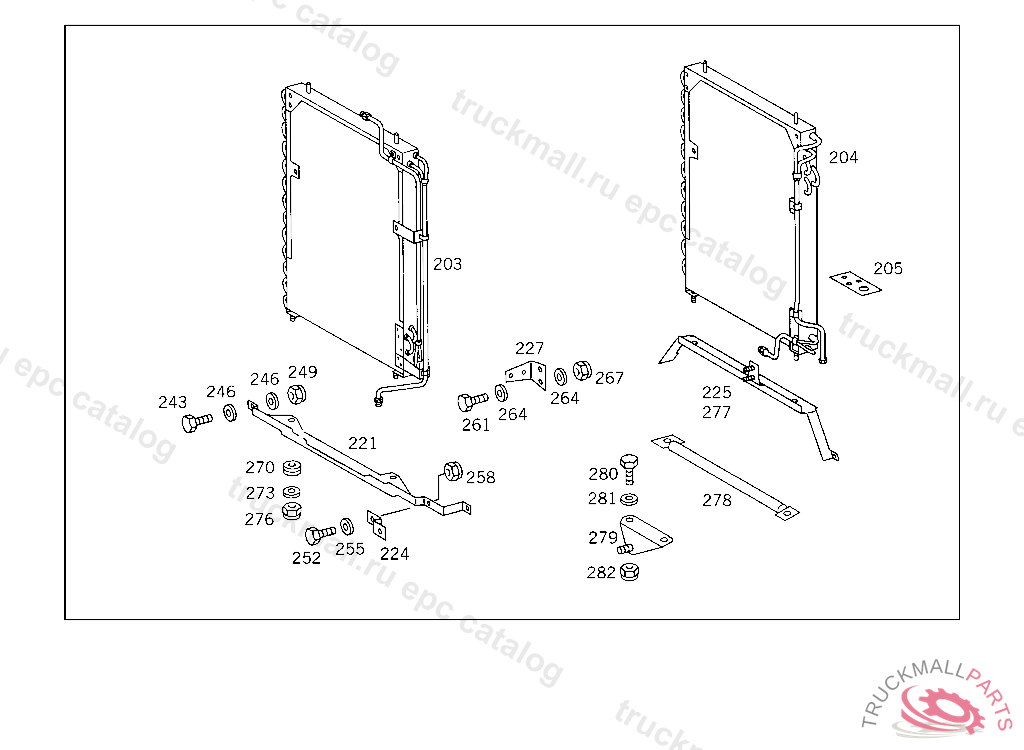

203
CONDENSER AIR CONDITIONER
203
CONDENSER AIR CONDITIONER
203
CONDENSER , Replaced By: A0005001254
203
CONDENSER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.5 765272, Replaced By: A0005001154
204
CONDENSER AIR CONDITIONER
205
BRACKET FROM COMPRESSOR TO CONDENSER
221
BRACKET CONDENSER TO CHARGE AIR INTERCOOLER, BOTTOM
224
BRACKET CONDENSER TO CHARGE AIR INTERCOOLER
225
BRACKET CONDENSER TO CHARGE AIR INTERCOOLER
227
BRACKET CONDENSER TO CHARGE AIR INTERCOOLER
243
SCREW PIPE CLAMP
243
SCREW , Replaced By: N304017008021
246
WASHER , Replaced By: N000125008443
246
WASHER EXHAUST MUFFLER TO STRAP
249
NUT , Replaced By: N913004008001
249
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
252
SCREW , Replaced By: N304017006016
252
SCREW PUMP TO BRACKET
255
WASHER COMPRESSED AIR LINE TO BRACKET
255
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
258
NUT , Replaced By: N913004006001
258
NUT PUMP TO BRACKET
261
SCREW PIPE CLAMP
261
SCREW COVER PLATE TO BRACKET
261
SCREW , Replaced By: N304017008021
264
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
264
WASHER , Replaced By: N000125008443
264
WASHER COMPRESSED AIR LINE TO BRACKET
264
WASHER EXHAUST MUFFLER TO STRAP
267
NUT , Replaced By: N913004006001
267
NUT , Replaced By: N913004008001
267
NUT PUMP TO BRACKET
267
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
270
GROMMET CONDENSER TO BRACKET
273
WASHER COMPRESSED AIR LINE TO BRACKET
273
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
276
NUT , Replaced By: N913004006001
276
NUT PUMP TO BRACKET
277
BRACKET CONDENSER TO RADIATOR
278
BRACKET CONDENSER TO RADIATOR
279
BRACKET CONDENSER TO RADIATOR
280
SCREW , Replaced By: N304017006016
280
SCREW PUMP TO BRACKET
280
SCREW DE-AERATION LINE TO RADIATOR
281
WASHER COMPRESSED AIR LINE TO BRACKET
281
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
282
NUT , Replaced By: N913004006001
282
NUT PUMP TO BRACKET
999
SWITCH ,K 157608
999
BRACKET CONNECTING HOSE TO CAB MOUNTED ELECTRIC CABLE HARNESS BRACKET
999
BRACKET CONNECTING HOSE TO CAB MOUNTED ELECTRIC CABLE HARNESS BRACKET
999
BRACKET HOSE TO RADIATOR
999
PIPE ELBOW , Replaced By: A6565200006
999
PIPE LINE FROM COMPRESSOR TO RADIATOR SEPARATION POINT
