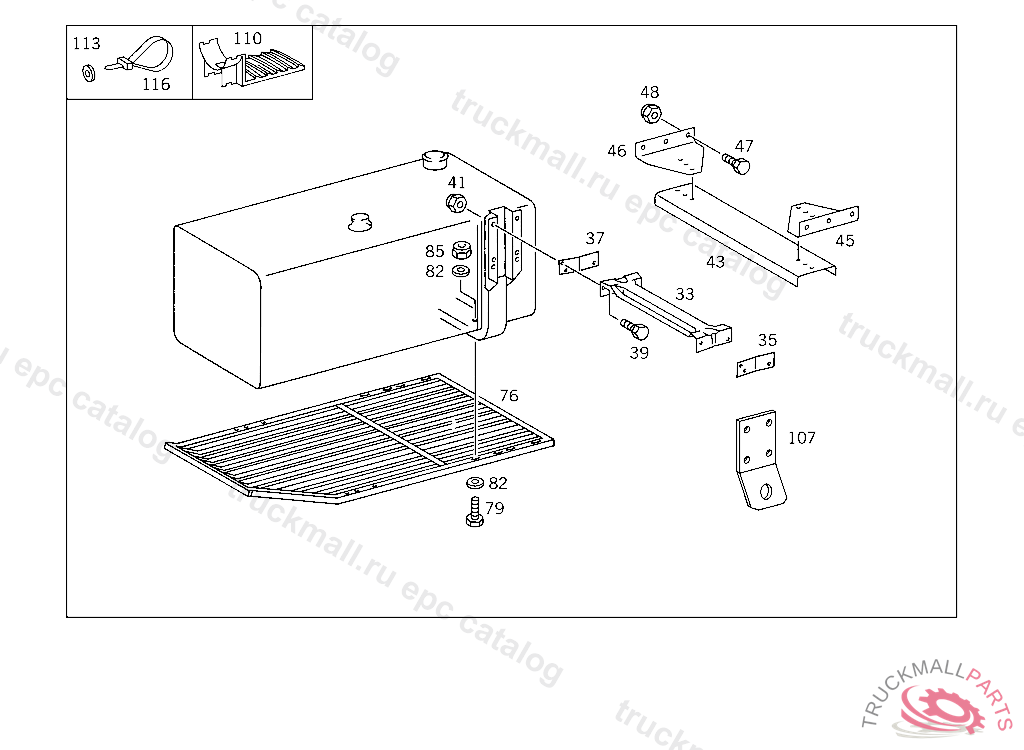

Поз.
Артикул
Описание
33
CROSS MEMBER LEFT AND RIGHT CONSOLES TO FRAME
35
SHIM LEFT CONSOLE TO FRAME
37
SHIM RIGHT CONSOLE TO FRAME
39
SCREW BRACKET TO CAB CONSOLE,K 035197
41
NUT BRACKET TO SIDE MEMBER
41
NUT , Replaced By: N910113014001
43
CROSS MEMBER CROSS MEMBER TO GUSSET PLATE
45
GUSSET PLATE LEFT AND RIGHT CONSOLES TO FRAME
46
GUSSET PLATE GUSSET PLATE TO FRAME,RIGHT
47
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
47
SCREW , Replaced By: N308676014020
47
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
47
SCREW BRACKET TO CAB CONSOLE,K 035197
47
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
47
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
48
NUT BRACKET TO SIDE MEMBER
48
NUT CONSOLE TO SUPPORT
48
NUT , Replaced By: N910113014001
48
NUT , Replaced By: N910113016001
76
PROTECTOR FUEL TANK
79
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
79
SCREW , Replaced By: N308676012012
79
SCREW CONSOLE TO SIDE MEMBER
82
WASHER
85
NUT SUPPORT TO SIDE MEMBER
107
BRACKET FUEL LINES TO FUEL TANK,K 179589
110
BRACKET STRAP
113
WASHER BRACKET TO LEFT SIDE MEMBER
116
LOOM TIE LINE MOUNTING
999
WASHER SPARE WHEEL CARRIER
