Поз.
Артикул
Описание

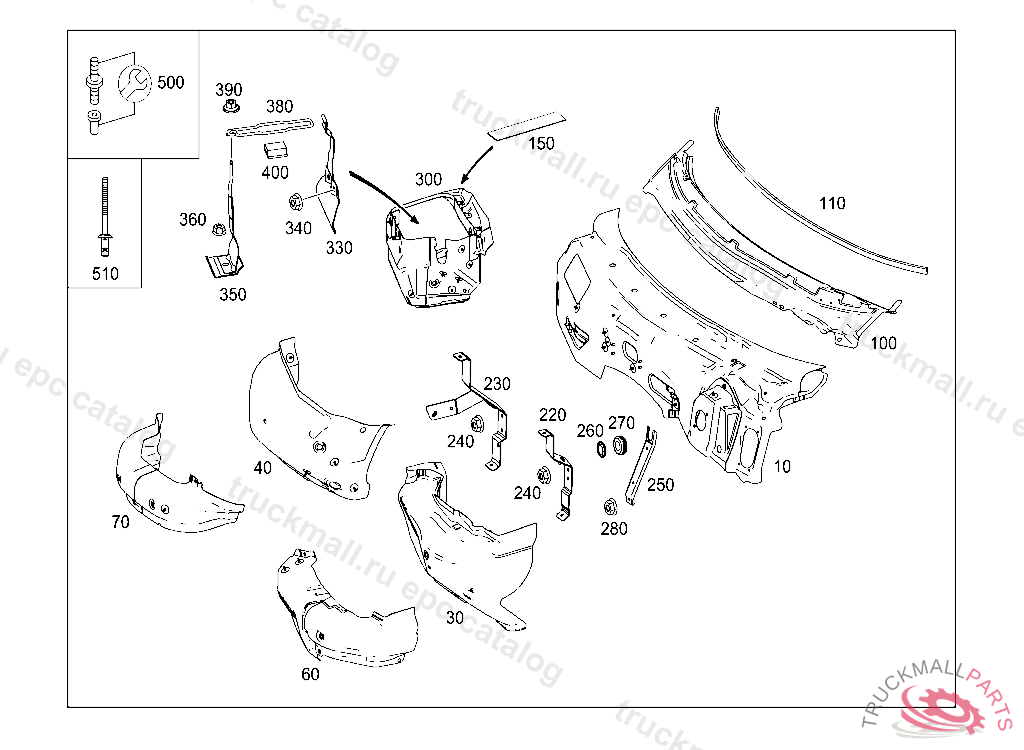

10
FIREWALL TOP
10
FIREWALL TOP
30
FIREWALL BOTTOM LEFT
30
FIREWALL BOTTOM LEFT
40
FIREWALL BOTTOM RIGHT
40
FIREWALL BOTTOM RIGHT
60
CROSS MEMBER FIRE WALL, BOTTOM LEFT
60
CROSS MEMBER BOTTOM LEFT
70
CROSS MEMBER FIRE WALL,BOTTOM RIGHT
70
CROSS MEMBER FIRE WALL,BOTTOM RIGHT
100
CROSS MEMBER BELOW WINDSHIELD
100
CROSS MEMBER BELOW WINDSHIELD
110
SEAL BELOW WINDSHIELD
150
PLASTIC SECTION BATTERY CHAFE PROTECTION
220
SUPPORT LEFT
230
SUPPORT RIGHT
240
NUT , Replaced By: N913023006001
250
STAY LEFT PENDELUM SUPPORT
250
STAY RIGHT PENDELUM SUPPORT
260
FUSE PENDELUM SUPPORT TO BRAKE UNIT
270
GROMMET
280
NUT BRACKET TO BODY SHELL M6
300
PARTITION RIGHT
300
PARTITION LEFT
330
BRACKET BATTERY, REAR
330
BRACKET BATTERY, REAR
340
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
350
BRACKET BATTERY FASTENING
360
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
380
CLAMP BATTERY MOUNTING
390
NUT-AND-WASHER ASSEMBLY. NUT , Replaced By: N910104006000
400
PAD LOCK BRACKET
400
BASE BETWEEN FENDER, LEFT ANDBUMPER, TO BE ADAPTED DURING ASSEMBLY NOTE SERVICE INFORMATION IN WISWIS-NET#SI63.50-P-0001A#
500
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
510
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
