Поз.
Артикул
Описание

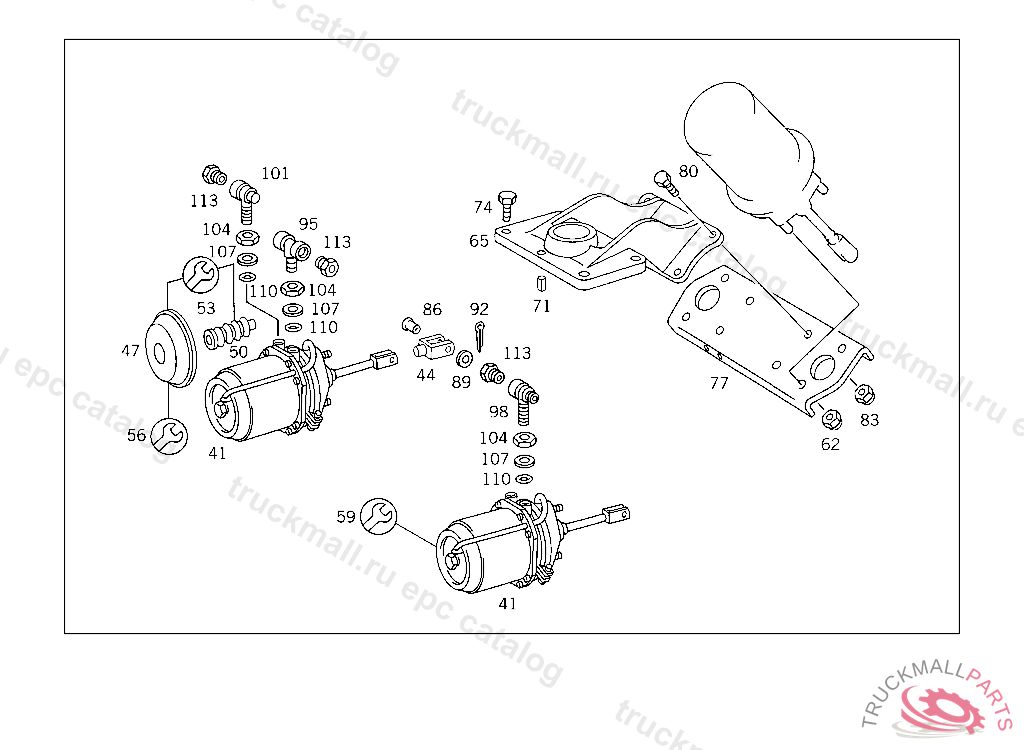

41
WHEEL BRAKE CYLINDER TRISTOP CYLINDER KNORR,K 186394
41
WHEEL BRAKE CYLINDER TRISTOP CYLINDER BOSCH,K 186394
41
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO,K 186394
50
CUPTO 007 420 68 18,WABCO
53
REPAIR KIT DIAPHRAGM PART TO 007 420 68 18, WABCO
53
REPAIR KIT COMBINATION CYLINDER BOSCH,K 180897
56
REPAIR KIT COMBINATION CYLINDER KNORR,K 186394
59
REPAIR KIT SPRING LOAD ACCUMULATOR PART WABCO
62
NUT COMBINATION CYLINDER TO BEARING BRACKET
62
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
74
SCREW BEARING BRACKET TO REAR AXLE M 20X50, IN CASE OF CAST AXLE
77
BRAKE ANCHOR TRISTOP CYLINDER
80
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
83
NUT BRACKET TO SIDE MEMBER
83
NUT , Replaced By: N910113014001
86
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
89
WASHER , Replaced By: N000433015005
89
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
92
COTTER PIN STRAP TO SUPPORT
95
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
98
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
101
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
104
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
107
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
110
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
113
SCREW. UNION SCREW LINE CONNECTION
999
BRACKET BRAKE POWER REGULATOR
