Поз.
Артикул
Описание

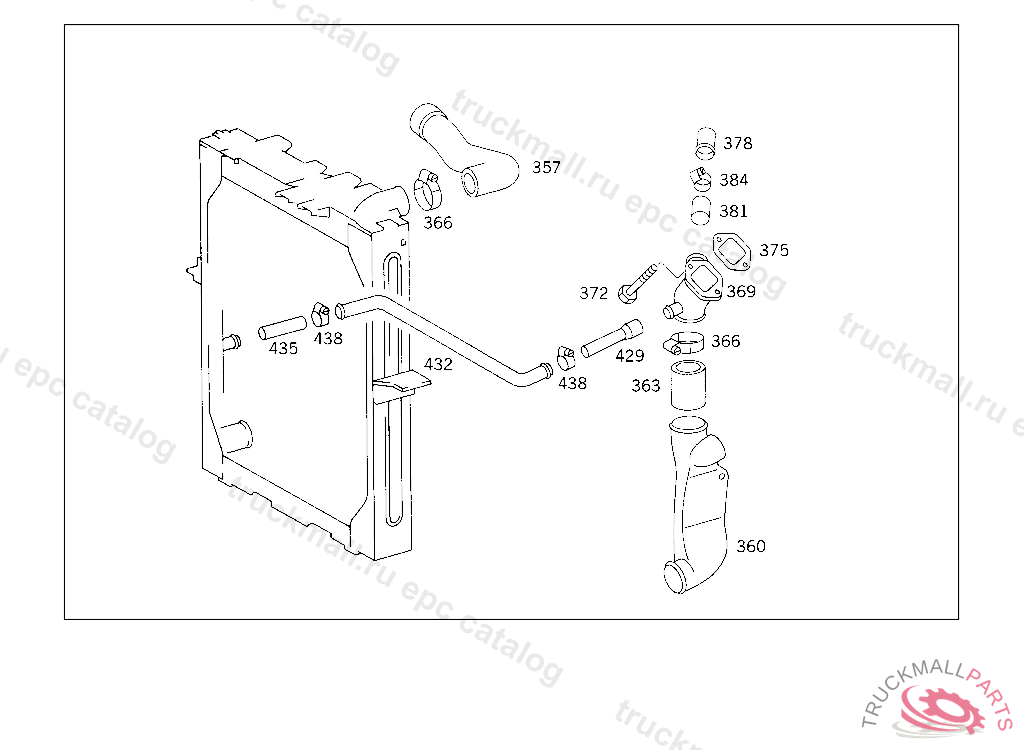

357
HOSE FROM RADIATOR TO THERMOSTAT
360
PIPE ELBOW FROM RADIATOR OUTLET TO WATER PUMP
363
HOSE FROM RADIATOR OUTLET TO WATER PUMP, ORDER BY THE METER
366
CLAMP , Replaced By: N000000000674
366
CLAMP HOSE 70-90X13 MM
369
CONNECTOR FOR SCREW FITTING
372
SCREW BRACKET TO FRAME SIDE MEMBER
375
GASKET CONNECTOR
375
GASKET CONNECTOR, Replaced By: A0002011180
375
GASKET CONNECTOR, Replaced By: A0002011280
375
GASKET CONNECTOR, Replaced By: A0002011080
378
END PIECE CONNECTOR, NOT USED
381
HOSE FROM HEATING LINE TO BUBBLE SEPARATOR,5 602407
384
CLAMP
384
CLAMP , Replaced By: N000000000670
429
HOSE , Replaced By: A3635060235
429
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR,5 534803
432
BREATHER PIPE FROM WATER PUMP TO HEATING PIPE AT RADIATOR
435
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
438
CLAMP , Replaced By: N000000000667
438
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
RADIATOR OIL COOLER TO RADIATOR
999
PIPE SOCKET HOSE TO BUBBLE SEPARATOR,5 602407
999
TANK EXPANSION TANK
999
THREADED UNION BRACKET TO OIL COOLER,TOP
999
RADIATOR COVERING , DISCONTINUED,PART IS NO LONGER REQUIRED
999
BRACKET OIL COOLER,LEFT BOTTOM
999
BRACKET OIL COOLER,RIGHT BOTTOM
999
BRACKET OIL COOLER
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008016
999
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW PIPE CLAMP
999
CLAMP EXPANSION TANK TO SUPPORT
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
