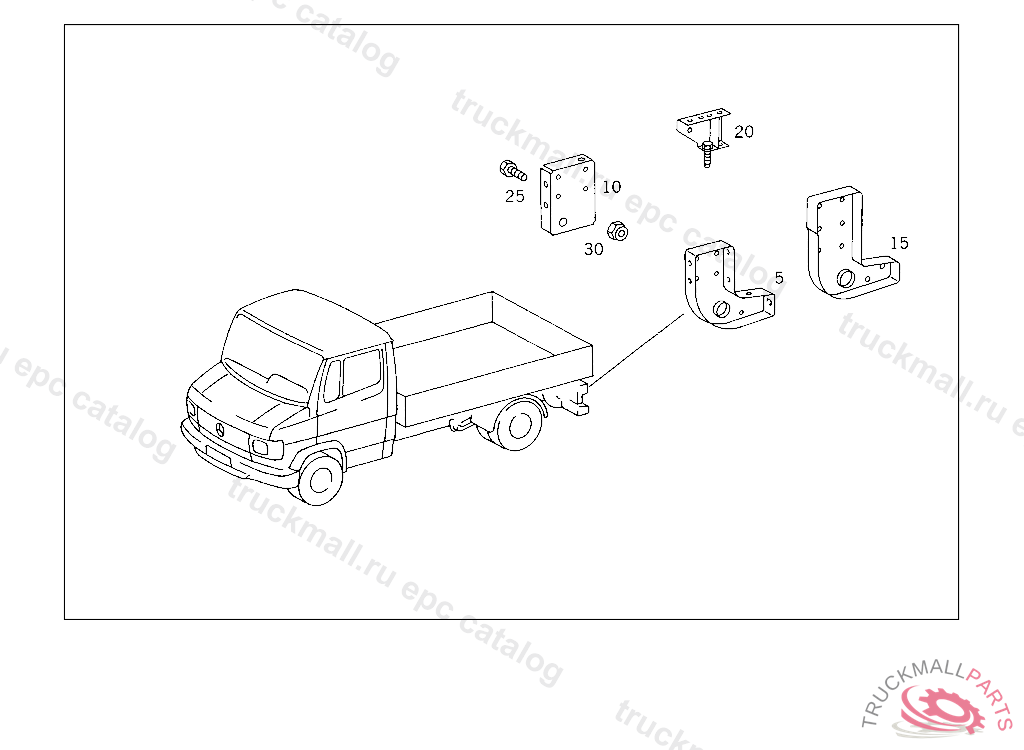

709 D - 669.001 - 52 CHASSIS SHEET METAL
Поз.
Артикул
Описание
5
SUPPORT OIL COOLER
5
BRACKET LEFT, TO BE ADAPTED DURING ASSEMBLY DELIVER ADDITIONALLY: 4X 305 990 04 40, 4X 668 990 00 90, WITH 15-MM-DIA. BORE
5
SUPPORT , Replaced By: A6685000327
5
BRACKET RIGHT, ONLY USED WITH UNDERRUN PROTECION
10
BRACKET RIGHT
10
BRACKET LEFT
15
SUPPORT LEFT
15
SUPPORT RIGHT
20
CONSOLE LEFT
20
CONSOLE RIGHT
25
SCREW BRACKET TO CONSOLE
25
SCREW , Replaced By: N304017010043
30
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
