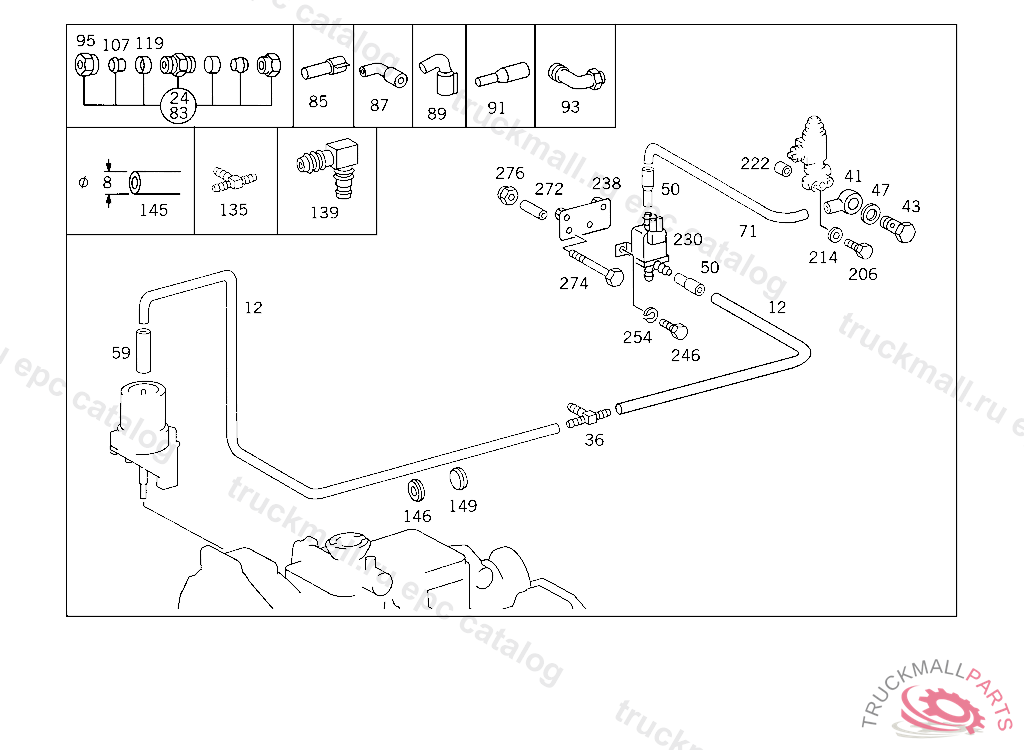

Поз.
Артикул
Описание
12
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
24
FITTING (PARTS KIT),LINE RUPTURE
24
FITTING , Replaced By: A0029905971
36
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
36
T-FITTING BETWEEN THE LINES
41
BANJO UNION
41
BANJO UNION , Replaced By: A0019908288
43
HOLLOW SCREW LINE CONNECTION
47
SEAL RING LINE CONNECTION
50
HOSE 3/2-WAY VALVE,CONNECTIONS: "1","2"
59
HOSE (3/2-WAY SOLENOID VALVE) "3"
59
HOSE P.T.O. CONTROL VALVE
71
PLASTIC PIPE RISING PIPE 4X6 MM
71
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
83
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
85
HOSE VACUUM LINE
87
HOSE
89
HOSE FROM 3/2-WAY VALVE TO POWER CYLINDER, N 000001 P 149402
91
HOSE ENGINE TO REGENERATION VALVE RECHTS, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
93
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
95
UNION NUT
107
GLAND , Replaced By: A0019901667
107
SEAL CONE
119
SLEEVE LEAK LINE
135
DISTRIBUTOR HOSE WIDTH, 6 MM
139
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
145
HOSE MASTER SWITCH AND VACUUM SWITCH 40 MM, 023 164780 033 066774 123 158077 130 172061
146
GROMMET LINE MOUNTING 16/11 MM
149
EXPANSION PLUG HEATER-PLUG INDICATOR RESISTOR,244705-303364
206
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
214
SPACER WASHER VALVE TO VALVE
222
SPACER TUBE VALVE TO VALVE, 826628 N 000001 P 000001
230
VALVE , Replaced By: A0015408697
230
VALVE (3/2-WAY SOLENOID VALVE)
230
VALVE
238
BRACKET 3/2-WAY VALVE, N 000000 P 083147
238
BRACKET 3/2-WAY VALVE, N 000001 P 083148
246
SCREW COVER PLATE TO COVER PLATE M 6 X 12
254
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
272
SPACER TUBE CLAMP ON BRACKET
274
SCREW , Replaced By: N304014008001
274
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
276
NUT STRAP TO BRACKET
999
ACTUATING PARTWABCO
