Поз.
Артикул
Описание

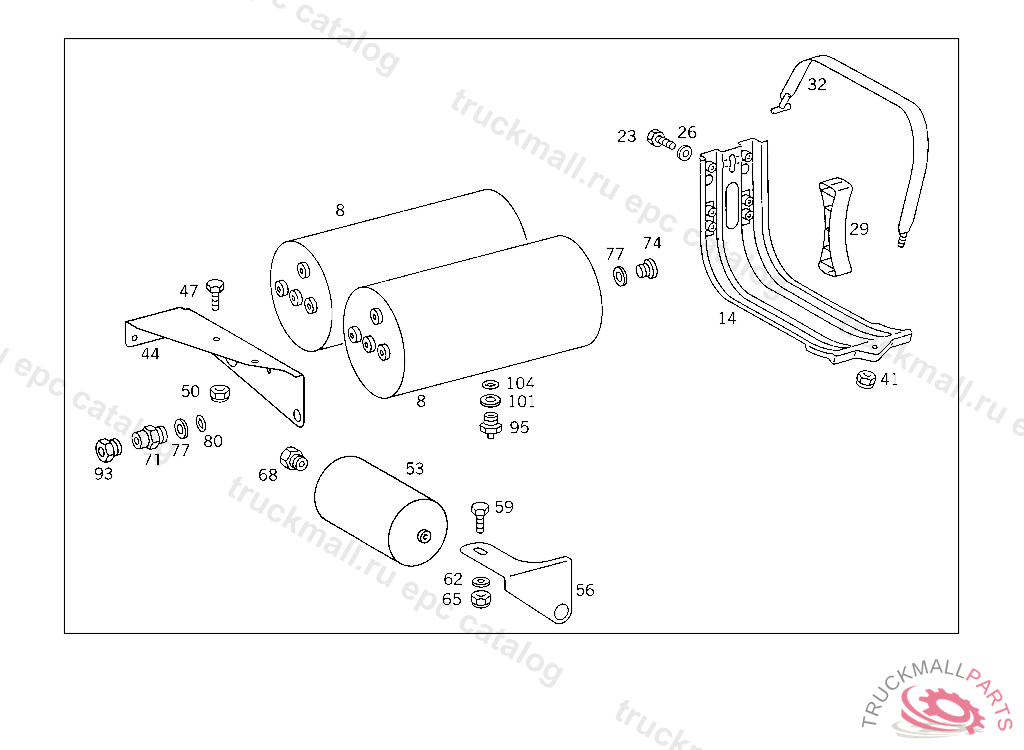

8
RESERVOIR COMPRESSED AIR 30 L, TO VOSS 232,5 9363665 812731 FOR VEHICLES WITH VOSS 230 CONNECTOR: ADD. MOUNT FITTING "A 004 997 82 72" WITH O-RING "A 000 987 04 46" AND THRUST RING "A 000 997 02 03" TO AIR RESERVOIR
8
RESERVOIR , Replaced By: A0054322201, +002A0009870446, +002A0009940203, +002A0049978272
14
CONSOLE AIR RESERVOIR TO FRAME
23
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
23
SCREW CONSOLE TO SIDE MEMBER
23
SCREW , Replaced By: N308676012026
23
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
26
WASHER BRACKET TO FRAME
26
WASHER BRACKET TO SIDE MEMBER
29
BASE AIR RESERVOIR TO CONSOLE
32
STRAP AIR RESERVOIR TO CONSOLE
41
NUT STRAP TO BRACKET
41
NUT , Replaced By: N910113010000
44
BRACKET AIR RESERVOIR
47
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
50
NUT , Replaced By: N910113010000
50
NUT STRAP TO BRACKET
53
RESERVOIR COMPRESSED AIR 4 L,EURO,5 9363665 812731
56
BRACKET AIR RESERVOIR
59
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
62
WASHER RADIATOR TO RUBBER MOUNTING
62
WASHER , Replaced By: N000125010532
65
NUT STRAP TO BRACKET
65
NUT , Replaced By: N910113010000
68
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
71
FITTING LINE CONNECTION
74
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
74
SCREW PLUG , Replaced By: N000908022011
77
THRUST RING CHECK VALVE TO AIR RESERVOIR
77
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
80
O-RING CHECK VALVE TO AIR RESERVOIR
93
SCREW. UNION SCREW LINE CONNECTION
93
SCREW. UNION SCREW , Replaced By: A0009973734
93
SCREW. UNION SCREW LINE CONNECTION
95
VALVE. DRAIN VALVE DRAIN
95
VALVE. DRAIN VALVE DRAIN
95
VALVE DRAIN, Replaced By: A0004322407
95
VALVE DRAIN, Replaced By: A0004322107
95
VALVE DRAIN, Replaced By: A0004322107
101
THRUST RING CHECK VALVE TO AIR RESERVOIR
101
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
104
O-RING CHECK VALVE TO AIR RESERVOIR
