Поз.
Артикул
Описание

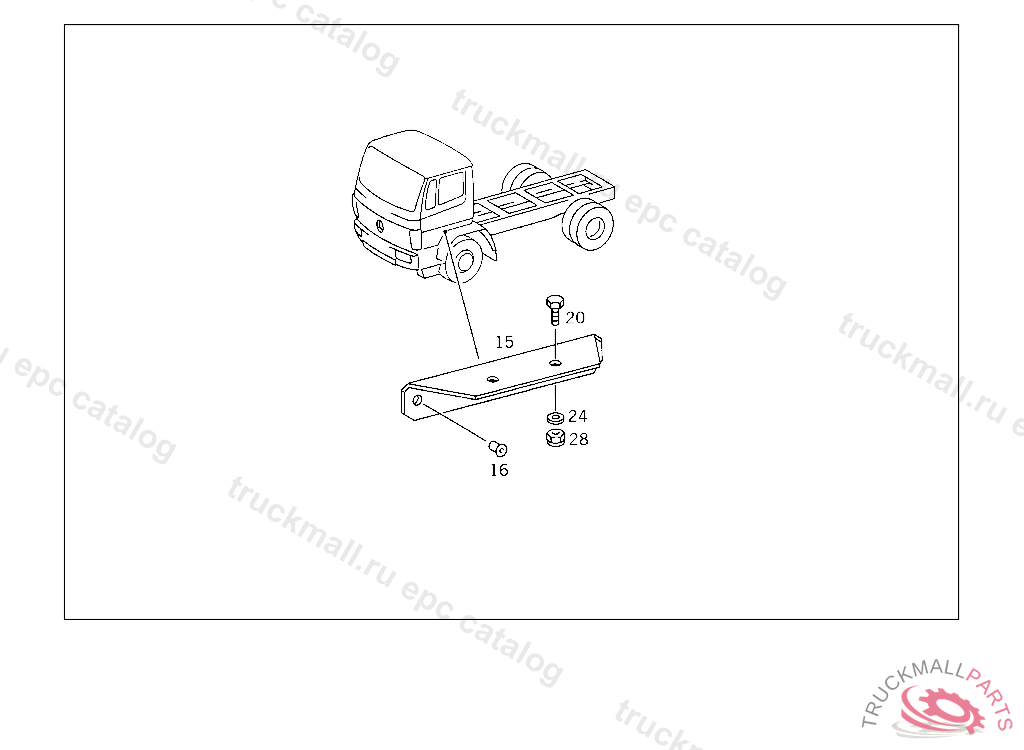

15
BRACKET OIL LINES
16
RIVET REAR CROSS MEMBER 12X42 MM
16
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
20
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
20
HEXAGON HEAD BOLT , Replaced By: A0029902704
20
SCREW CONSOLE TO SIDE MEMBER
20
SCREW , Replaced By: N308676012026
20
SCREW , Replaced By: N308676012013
20
SCREW , Replaced By: N304017008021
20
SCREW , Replaced By: N910142008001
20
SCREW , Replaced By: N308676012012
20
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
20
SCREW PIPE CLAMP
20
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
20
SCREW BRACKET TO BRACKET
20
SCREW BRACKET TO FRAME M 12X35
20
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
24
WASHER EXHAUST MUFFLER TO STRAP
24
WASHER , Replaced By: N000125008443
24
WASHER
28
NUT SUPPORT TO SIDE MEMBER
28
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
28
NUT , Replaced By: N913004008001
28
NUT BRACKET TO BRACKET
28
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
28
NUT STRAP TO SUPPORT
28
NUT , Replaced By: N910113012003
999
BRACKET OIL LINES
999
BRACKET LEFT TOP ANTINOISE CAPSULE TO FRONT BRACKET
999
BEARING BRACKET HYDRAULIC CYLINDER
999
BEARING BRACKET HYDRAULIC CYLINDER
999
BRACKET FRONT EXHAUST PIPE,5 528483
