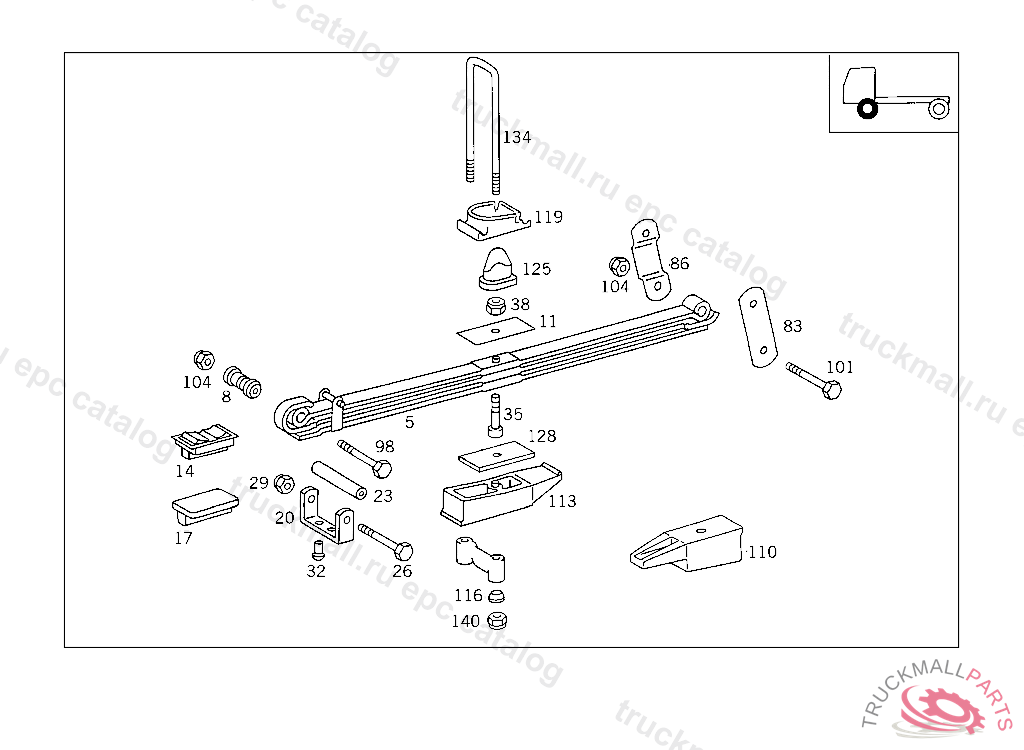

Поз.
Артикул
Описание
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "2"
5
FRONT SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6743203802
8
BUSHING
11
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
11
SHIM , Replaced By: A9703210184
14
RUBBER BUFFER BETWEEN THE SPRING EYES
20
SPRING CLAMP , Replaced By: A6173210333
20
SPRING CLAMP , Replaced By: A6173210333
20
SPRING CLAMP ,5 940410
32
RIVET SPRING CLAMP TO SPRING LEAF
35
SPRING BOLTM 12X65
38
HEXAGON NUT. NUT SPRING BOLT
38
NUT , Replaced By: N910113012005
83
SHACKLE INSIDE,FRONT SPRING TO SPRING REAR BRACKET
86
SHACKLE OUTSIDE,FRONT SPRING TO SPRING REAR BRACKET
98
SCREW SPACER TUBE TO MOUNTING
98
SCREW , Replaced By: N000960016251
101
SCREW ENGINE TO ENGINE FRONT SUPPORT M16X130,5 548534
104
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
104
NUT COMBINATION CYLINDER TO BEARING BRACKET
110
SHIM ,5 361886, Replaced By: A6733221684, +001A3289910060
110
SHIM ,5 361886, Replaced By: A6733221784, +001A3289910060
110
SHIM FRONT SPRINGS TO FRONT AXLE
110
SHIM FRONT SPRINGS TO FRONT AXLE
110
SHIM FRONT SPRINGS TO FRONT AXLE
116
SPHERICAL WASHER FRONT SPRINGS TO FRONT AXLE,5 468450
119
PLATE FRONT SPRINGS TO FRONT AXLE
125
HELPER SPRING FRONT SPRING STOP
134
U-BOLT , Replaced By: A3163510025
134
U-BOLT FRONT SPRING TO FRONT AXLE,REAR 180 MM
134
U-BOLT FRONT SPRING TO FRONT AXLE,FRONT LEFT 220 MM
134
U-BOLT FRONT SPRINGS TO FRONT AXLE 240 MM
134
U-BOLT FRONT SPRINGS TO FRONT AXLE 240 MM
140
NUT FRONT SPRINGS TO FRONT AXLE
