Поз.
Артикул
Описание

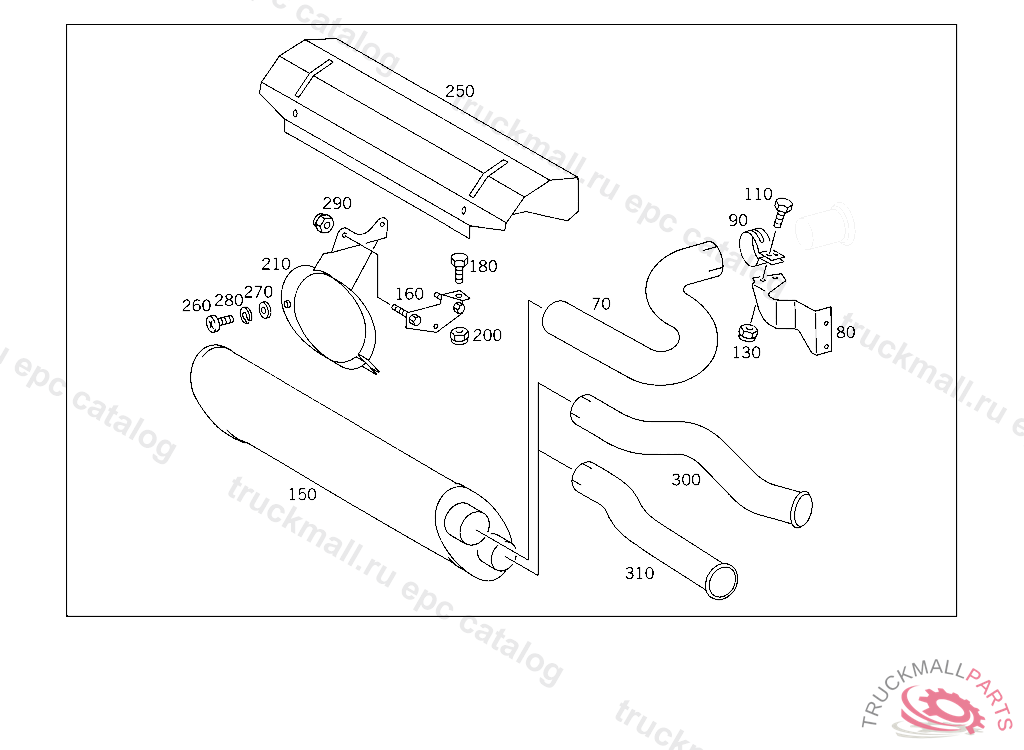

70
EXHAUST PIPE FRONT,REAR PART,5 536225
70
EXHAUST PIPE FRONT,REAR PART,5 536225
80
BRACKET EXHAUST LINE FLEXIBLE METAL TUBE
90
CLAMP AT CROSS MEMBER
90
CLAMP REAR EXHAUST PIPE TO BRACKET
110
SCREW , Replaced By: N304017010002
110
SCREW BRACKET TO CROSS CONNECTION STRUT
110
SCREW EXHAUST PIPE TO SIDE MEMBER
110
SCREW BRACKET TO SIDE MEMBER
130
NUT STRAP TO BRACKET
130
NUT , Replaced By: N913004008001
130
NUT , Replaced By: N913004008001
130
NUT , Replaced By: N910113010000
150
EXHAUST MUFFLER
150
EXHAUST MUFFLER , Replaced By: A6764900501
160
BRACKET RIGHT
160
BRACKET LEFT
180
SCREW BRACKET TO SIDE MEMBER
180
SCREW , Replaced By: N910105010011
180
SCREW PIPE CLAMP
180
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
180
SCREW EXHAUST PIPE TO SIDE MEMBER
180
SCREW CONNECTOR TO REAR SHIFTING ROD
200
NUT STRAP TO BRACKET
200
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
200
NUT EXHAUST PIPE TO SIDE MEMBER
210
BRACKET LEFT,5 561987
210
BRACKET RIGHT
250
PROTECTIVE PLATE (HEAT SHIELD)
260
SCREW , Replaced By: A0029904212
260
BOLT. SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
270
WASHER EXHAUST MUFFLER TO STRAP
280
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
290
NUT , Replaced By: N913004008001
300
REAR EXHAUST PIPE TAIL PIPE
300
REAR EXHAUST PIPE TAIL PIPE
310
REAR EXHAUST PIPE ,K 115819
310
REAR EXHAUST PIPE ,K 115819
999
RUBBER BUFFER BRACKET TO SUPPORT
999
BRACKET HAND PUMP
999
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
999
BRACKET PROTECTIVE PLATE
999
RUBBER BUFFER EXHAUST PIPE REAR ON BATTERY CASE
999
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
999
BRACKET FUEL LINES TO TRANSMISSION
999
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
999
FLEXIBLE METAL TUBE
999
SUPPORT EXHAUST MUFFLER TO BRACKET
999
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE TO MUFFLER,K 165446
999
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER
999
ANGLE EXHAUST MUFFLER,5 478324
999
BRACKET , Replaced By: A6744914541
999
BRACKET EXHAUST PIPE REAR ON BATTERY CASE
999
BRACKET EXHAUST MUFFLER,5 478324
999
BRACKET EXHAUST MUFFLER
999
BRACKET AT SIDE MEMBER,5 478324
999
ANGLE EXHAUST MUFFLER,5 478324
999
CLAMP EXHAUST PIPE TO MUFFLER
999
BRACKET TAIL PIPE,FRONT
999
BRACKET EXHAUST MUFFLER TO BRACKET
999
EXHAUST MUFFLER
999
EXHAUST PIPE RESONATOR,K 049384
999
EXHAUST PIPE FRONT, TO BE ADAPTED DURING ASSEMBLY
999
EXHAUST PIPE RESONATOR,K 049384
999
BRACKET EXHAUST PIPE TO SIDE MEMBER
999
BRACKET EXHAUST PIPE TO SIDE MEMBER
999
PROTECTIVE PLATE ,5 379080
999
BRACKET ,5 379080
999
BRACKET BRACKET TO FILTER BRACKET
999
REAR EXHAUST PIPE FRONT PART,5 337343
999
REAR EXHAUST PIPE REAR PART,5 337343
999
REAR EXHAUST PIPE REAR PART,5 337343
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE (TAIL PIPE)
999
EXHAUST MUFFLER
999
EXHAUST PIPE RESONATOR
999
CLAMP RESONATOR
999
RESONATOR
999
EXHAUST PIPE RESONATOR
999
BRACKET RESONATOR
999
REAR EXHAUST PIPE (TAIL PIPE),K 079963
