Поз.
Артикул
Описание

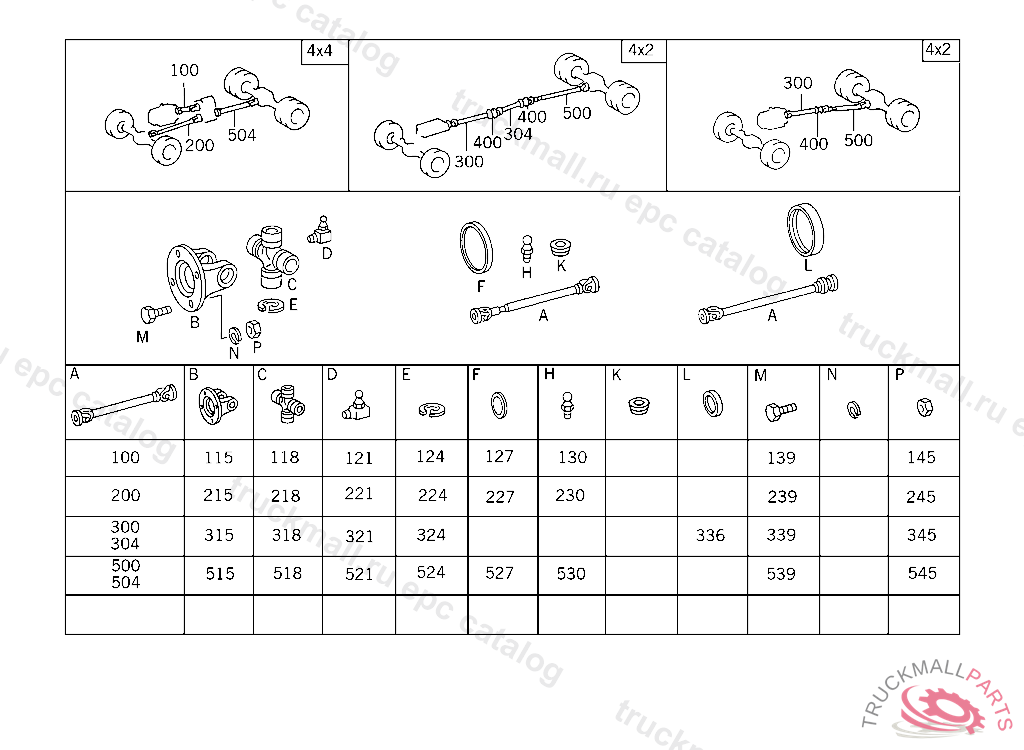

100
PROPELLER SHAFT FROM TRANSMISSION TO TRANSFER CASE 470 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
115
DRIVE FLANGE
118
UNIVERSAL JOINT CROSS WITH BUSHINGS
118
UNIVERSAL JOINT CROSS , Replaced By: A0004104031
121
GREASE NIPPLE
124
LOCK AS REQUIRED 2.00 MM
124
LOCK RING SHIFT LEVER BEARING
124
LOCK AS REQUIRED 1.825 MM
124
LOCK AS REQUIRED 1.93 MM
124
LOCK AS REQUIRED 1.88 MM
127
SEAL RING PROTECTIVE TUBE 74.5X22 MM
127
SEAL RING PROTECTIVE TUBE 77X14,5 MM
130
GREASE NIPPLE , Replaced By: N071412008102
130
GREASE NIPPLE
139
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
139
SCREW , Replaced By: A0079901001
145
NUT FROM PROPELLER SHAFT TO FRONT AXLE
200
PROPELLER SHAFT FROM INTERMEDIATE BEARING TO REAR AXLE 1070 MM,4 609737 BEARING BUSHING O..D.,42 MM PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
215
DRIVE FLANGE
218
UNIVERSAL JOINT CROSS WITH BUSHINGS
218
UNIVERSAL JOINT CROSS , Replaced By: A0004104031
221
GREASE NIPPLE
224
LOCK AS REQUIRED 2.00 MM
224
LOCK RING SHIFT LEVER BEARING
224
LOCK AS REQUIRED 1.88 MM
224
LOCK AS REQUIRED 1.93 MM
224
LOCK AS REQUIRED 1.825 MM
227
SEAL RING PROTECTIVE TUBE 74.5X22 MM
227
SEAL RING PROTECTIVE TUBE 77X14,5 MM
230
GREASE NIPPLE , Replaced By: N071412008102
230
GREASE NIPPLE
239
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
239
SCREW , Replaced By: A0079901001
245
NUT FROM PROPELLER SHAFT TO FRONT AXLE
504
PROPELLER SHAFT FROM TRANSMISSION TO TELMA BRAKE 959 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
504
PROPELLER SHAFT , Replaced By: A9734106202, +002A9734100031
515
DRIVE FLANGE , Replaced By: A6504110411
515
DRIVE FLANGE STAGGERED TEETH
518
UNIVERSAL JOINT CROSS WITH BUSHINGS
518
UNIVERSAL JOINT CROSS , Replaced By: A9734100031
521
GREASE NIPPLE
524
LOCK AS REQUIRED 1.65 MM
524
LOCK AS REQUIRED 1.80 MM
524
LOCK AS REQUIRED 1.70 MM
524
LOCK AS REQUIRED 1.85 MM
527
SEAL RING PROTECTIVE TUBE 95X14.5 MM
530
GREASE NIPPLE
530
GREASE NIPPLE , Replaced By: N071412008102
539
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
545
NUT PROPELLER SHAFT TO COUPLING FLANGE
