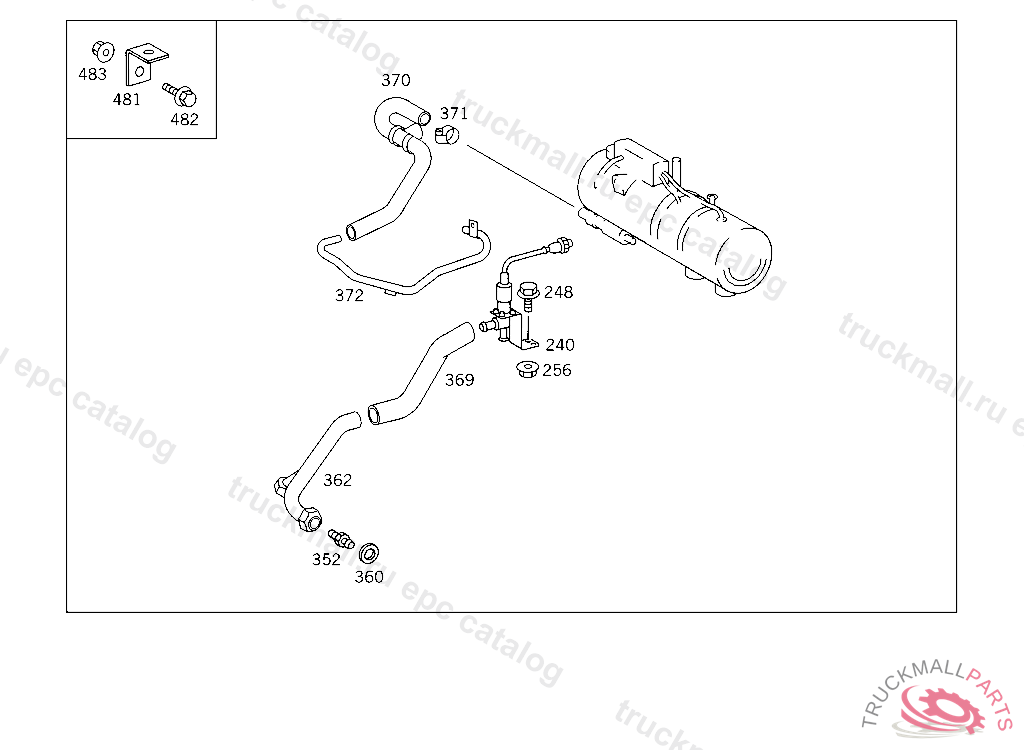

Поз.
Артикул
Описание
240
VALVE (SOLENOID VALVE),5 385341
248
SCREW BRACKET TO BRACKET
248
SCREW , Replaced By: N910142008001
256
NUT BRACKET TO BRACKET
352
CONNECTOR COOLING WATER DRAIN
352
FITTING COOLING WATER DRAIN
360
SEAL RING SOLENOID VALVE A 18X24
362
LINE FROM FITTING TO VALVE
369
HOSE FROM HEATING PIPE TO SOLENOID VALVE
369
HOSE FROM HEATING PIPE TO SOLENOID VALVE
370
HOSE FEED TO HEATER
371
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
371
CLAMP , Replaced By: N000000000667
372
LINE FEED TO HEATER
481
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
482
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
482
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
483
NUT BRACKET TO BRACKET
483
NUT EXHAUST PIPE TO SIDE MEMBER
999
AUXILIARY PUMP (METERING PUMP)
999
CLOCK60 MIN
999
LAMP , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0005430142
999
BURNER
999
TEMPERATURE SENSOR
999
HEATER PLUG
999
CONTROL UNITSTANDARD
999
CONTROL UNITGGVS
999
SWITCH , Replaced By: A0018354506
999
SWITCH
999
PUMP
999
RUBBER BUFFER SUPPORT TO BRACKET
999
SCREW BATTERY MOUNTING
999
BLOWER
999
SWITCH
999
SEAL RING
999
SEAL RINGTO 942 500 15 98
999
GROMMET , Replaced By: A4069975081
999
GROMMET LINE PASSAGE AT SIDE MEMBER
999
HOSE FROM HEATING WATER PIPE TO HEATER
999
HOSE FROM SCREW FITTING TO RECIRCULATING PUMP
999
PIPE FROM ENGINE TO HEATER, NOT USED
999
BRACKET HEATER UNIT
