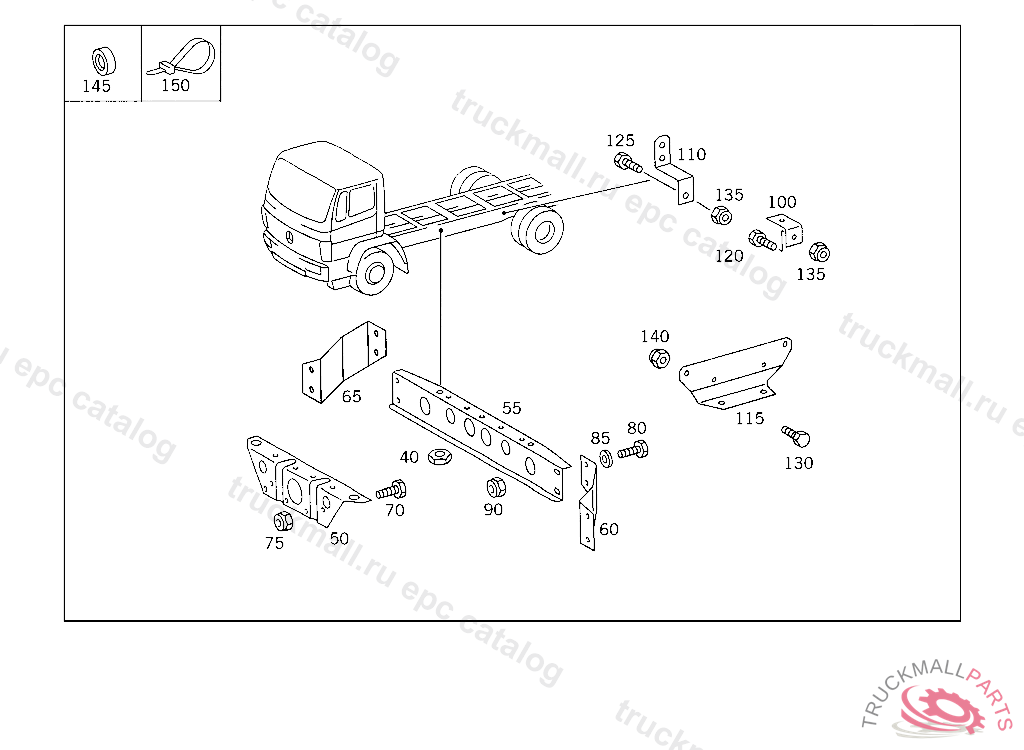

Поз.
Артикул
Описание
40
NUT BRACKET TO SIDE MEMBER
50
SUPPORT BULKHEAD FITTING
55
BRACKET BULKHEAD FITTING
60
BRACKET LEFT
65
BRACKET RIGHT
70
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
75
NUT STRAP TO BRACKET
75
NUT , Replaced By: N910113010000
80
SCREW PIPE CLAMP
80
SCREW , Replaced By: N304017008021
85
WASHER EXHAUST MUFFLER TO STRAP
85
WASHER , Replaced By: N000125008443
90
NUT , Replaced By: N913004008001
90
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
100
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
110
BRACKET COMPRESSED AIR LINE MOUNTING
115
BRACKET BRACKET TO STRUT
120
SCREW BRACKET TO CROSS CONNECTION STRUT
120
SCREW , Replaced By: N304017008034
125
SCREW , Replaced By: N304017008027
125
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
130
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
135
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
135
NUT , Replaced By: N913004008001
140
NUT STRAP TO BRACKET
140
NUT , Replaced By: N910113010000
145
WASHER BRACKET TO LEFT SIDE MEMBER
150
LOOM TIE LINE MOUNTING 280 MM
150
LOOM TIE LINE MOUNTING
999
BRAKE LINE COUPLING SUPPLY, RED "BOSCH"
999
BRAKE LINE COUPLING BRAKE,YELLOW "BOSCH"
999
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SCREW SPRING TO STRUT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
BRACKET FUEL LINE TO BELL HOUSING
999
BRACKET COMPRESSED AIR LINE MOUNTING
999
NUT , Replaced By: N913023010002
999
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
