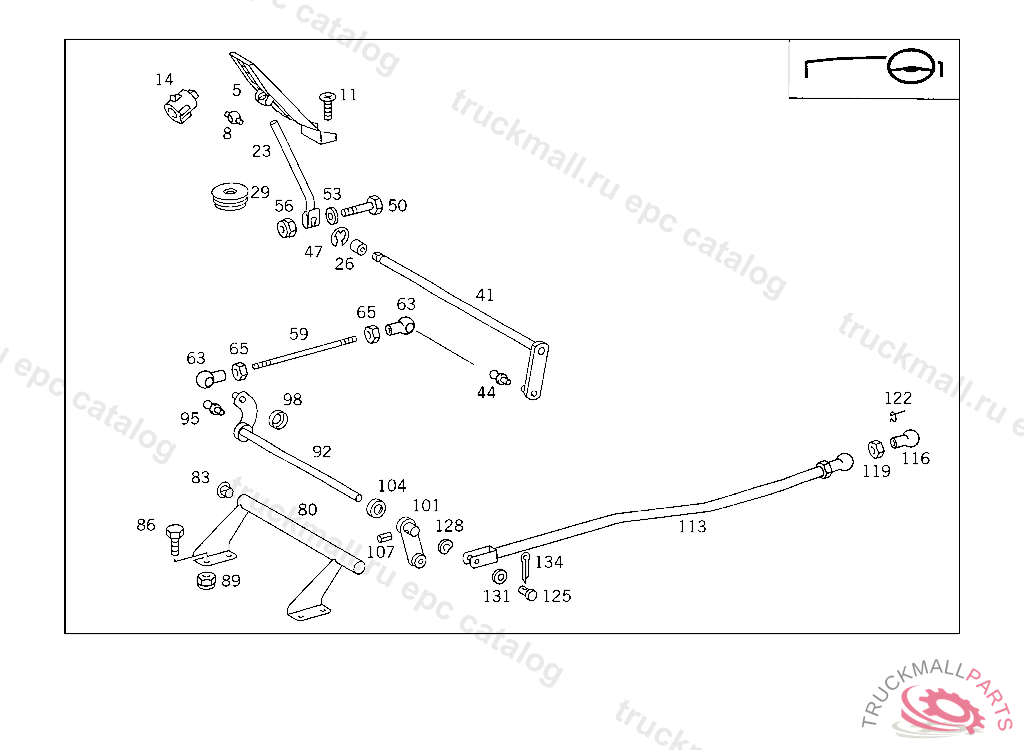

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
8
JOINT
11
SCREW SWITCH TO FLOOR PLATE M6X16,5 220373
14
STOP FULL THROTTLE
23
LEVER ACCELERATOR PEDAL
26
BUSHING ACCELERATOR CONTROL LINKAGE BEARING
29
GROMMET CONTROL ROD COVERING
41
SHAFT CONTROL,5 552123
44
BALL PIVOT
47
LOCK PLATE
50
SCREW , Replaced By: N304017006012
50
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
53
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
53
WASHER COMPRESSED AIR LINE TO BRACKET
56
NUT , Replaced By: N913004006001
56
NUT PUMP TO BRACKET
59
PULL ROD LOAD SENSOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
63
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
65
NUT BALL PIVOT TO LEVER
80
BEARING TUBE CONTROL SHAFT
83
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
86
SCREW , Replaced By: N304017008016
86
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
89
NUT , Replaced By: N913004008001
89
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
89
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
92
SHAFT (CONTROL SHAFT)
95
BALL PIVOT
98
COVERING
98
COVERING , Replaced By: A4073015088
101
LEVER (CONTROL LEVER)
104
COVERING
104
COVERING , Replaced By: A4073015088
107
CLAMPING SLEEVE , Replaced By: N308752004001
107
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
113
ROD (CONTROL ROD),FROM INTERMEDIATE BEARING TO ENGINE
116
BALL SOCKET ROD TO BALL PIVOT
119
NUT
122
SECURING CLIP. CIRCLIP
125
PIN WIRE CABLE TO LEVER
128
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
128
SPRING WASHER , Replaced By: N000137008212
131
WASHER BRACKET TO CROSS MEMBER
134
COTTER PIN LEVER TO ROD
134
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
ROD (CONTROL ROD),FROM INTERMEDIATE BEARING TO ENGINE,5 4232975 573246
999
ROD (CONTROL ROD),FROM INTERMEDIATE BEARING TO ENGINE,5 4232975 573246
