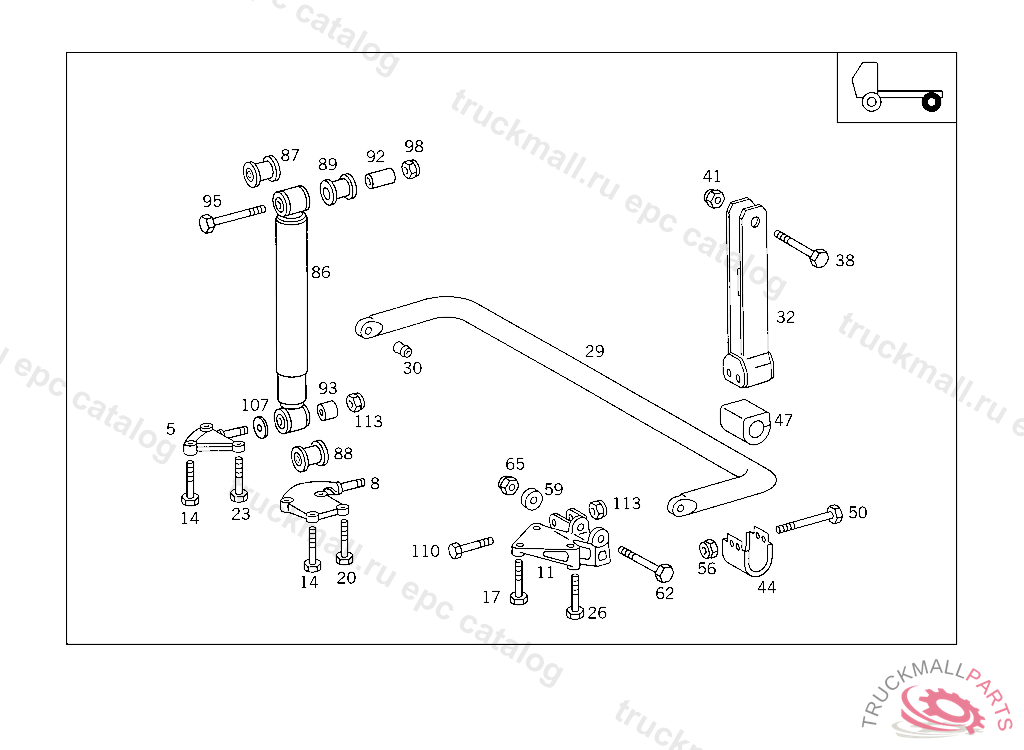

Поз.
Артикул
Описание
5
BRACKET REAR AXLE SHOCK ABSORBER,LEFT
5
BRACKET REAR AXLE SHOCK ABSORBER,RIGHT
14
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
14
SCREW , Replaced By: N308676014003
23
SCREW , Replaced By: N308676014012
23
SCREW SUPPORT TO SIDE MEMBER M 14X45
86
SHOCK ABSORBER REAR AXLE
86
SHOCK ABSORBER , Replaced By: A0053264500
86
SHOCK ABSORBER , Replaced By: A0053264500
87
JOINT TOP TO 005 326 53 00
88
JOINT BOTTOM TO 005 326 53 00
89
RUBBER MOUNTING004 326 01 00
92
BUSHING TOP TO 677 326 00 00,5 711071
93
SPACER TUBE
95
SCREW SHOCK ABSORBER TO TOP BRACKET
98
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
98
NUT COMBINATION CYLINDER TO BEARING BRACKET
107
WASHER SHOCK ABSORBER TO BOTTOM BRACKET TO 675 326 04 00,675 326 21 00
107
WASHER SHOCK ABSORBER TO BOTTOM BRACKET TO 675 326 06 00
107
WASHER SHOCK ABSORBER TO BOTTOM BRACKET TO 675 326 04 00,675 326 21 00
107
WASHER HYDRAULIC CYLINDER TO SWIVEL ARM
113
NUT CROSS MEMBER TO REINFORCEMENT
113
NUT , Replaced By: N913004020003
