Поз.
Артикул
Описание

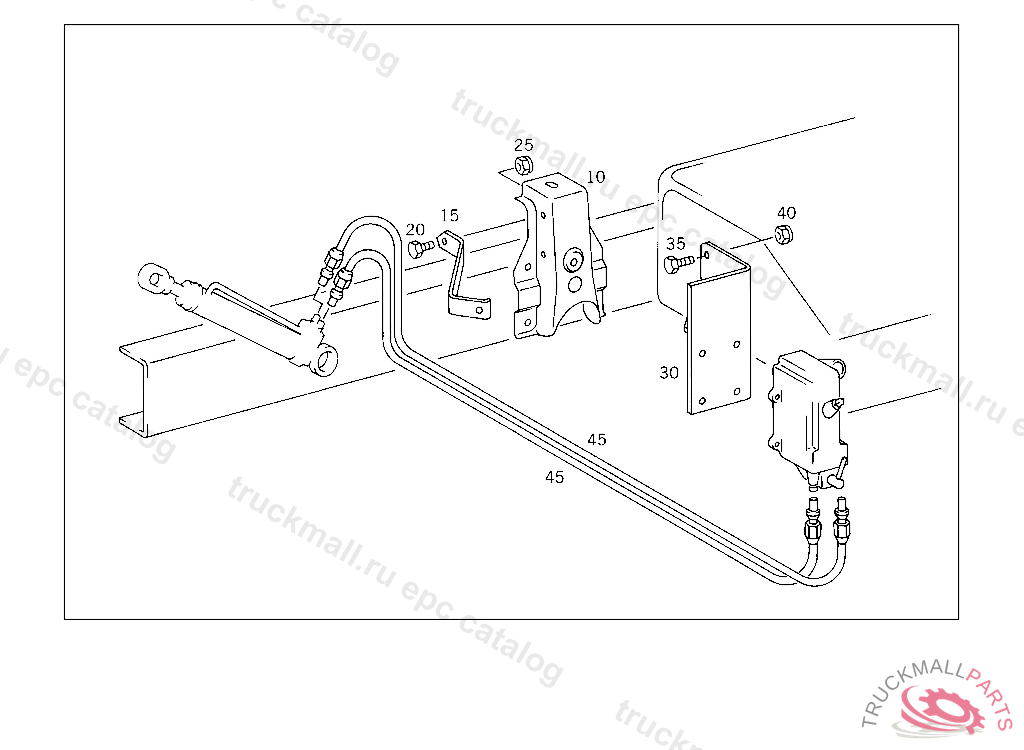

10
CONSOLE CAB SUSPENSION,REAR
15
BRACKET AT CONSOLE
20
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
25
NUT STRAP TO BRACKET
25
NUT , Replaced By: N910113010000
30
BRACKET BATTERY SUPPORT
30
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 470587, Replaced By: A6745500140
35
SCREW END PIECE TO EXHAUST PIPE M 10X25
40
NUT STRAP TO BRACKET
40
NUT , Replaced By: N910113010000
45
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
999
NUT SUPPORT TO SIDE MEMBER
999
SCREW CONSOLE TO SIDE MEMBER
999
BRACKET CAB SUSPENSION,REAR LEFT
999
BRACKET , Replaced By: A6753200943
999
HOSE FROM HYDRAULIC LINE TO CYLINDER
999
BRACKET AT CONSOLE
999
HOSE FROM HYDRAULIC LINE TO CYLINDER
