Поз.
Артикул
Описание

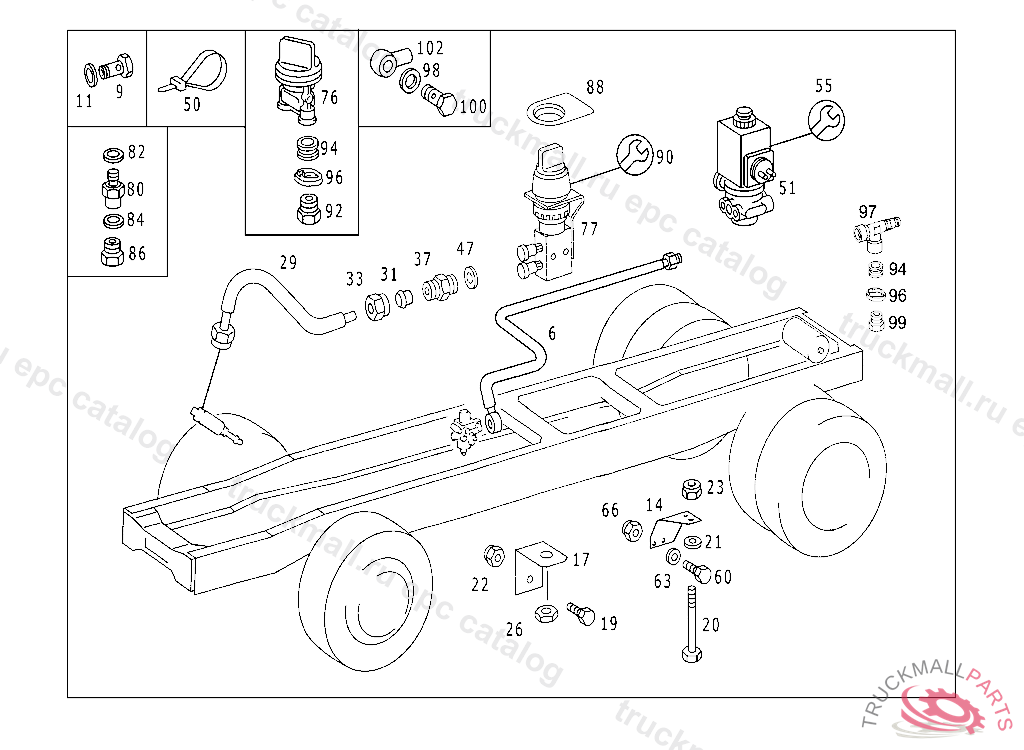

6
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "24" TO 3/2-WAY VALVE,NB961597
9
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
9
HOLLOW SCREW LEFT DISTRIBUTOR,CONNECTION: "70"
9
HOLLOW SCREW HEATING CONNECTION
11
SEAL RINGTO 006 997 00 72
11
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
11
SEAL RING LINE CONNECTION
14
BRACKET 3/2-WAY VALVE
14
BRACKET THREE-WAY VALVE
17
BRACKET LINE MOUNTING
17
BRACKET
17
BRACKET LINE MOUNTING
19
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
19
SCREW BRACKET TO SIDE MEMBER
20
SCREW VALVE TO BRACKET
20
SCREW VALVE TO BRACKET
20
SCREW VALVE TO BRACKET M 8X60
21
WASHER TRAILER PLUG SOCKET TO BRACKET
22
NUT BRACKET TO SIDE MEMBER,XB209706
22
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
23
NUT HORN TO BRACKET M8
23
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
26
NUT ,D 091466
29
BRAKE HOSE , Replaced By: N071435006002
31
GLAND , Replaced By: A0019901667
33
UNION NUT
37
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
47
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
47
SEAL RING LINE CONNECTION
50
LOOM TIE
50
LOOM TIE ELECTRIC CABLE MOUNTING
50
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
51
VALVE 3/2-WAY VALVE
51
VALVE 3/2-WAY VALVE
55
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
60
SCREW PLUG SOCKET TO FRAME
63
WASHER TRAILER PLUG SOCKET TO BRACKET
66
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
76
VALVE P.T.O.
77
VALVE (THREE-WAY SOLENOID VALVE), NO.8650I.......I I I II .......INO.9985I I I II I
77
VALVE 3/2-WAY VALVE
77
VALVE (THREE-WAY SOLENOID VALVE),047699 NO.8650I.......I I I II .......INO.9985I I I II I
77
VALVE
77
VALVE 3/2-WAY VALVE
77
VALVE (SOLENOID VALVE) WABCO
77
VALVE 3/2-WAY VALVE
77
VALVE , Replaced By: A0029975836
80
FITTING LINE CONNECTION
82
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
82
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
84
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
86
SCREW. UNION SCREW , Replaced By: A0009973734
86
UNION SCREW SPRING LOAD ACCUMULATOR CYLINDER M10X1 / VOSS 230,D 259885
88
SHIM THREE-WAY VALVE,047698 NO.8650I.......I I I II .......INO.9985I I I II I
88
SHIM THREE-WAY VALVE,047699 NO.8650I.......I I I II .......INO.9985I I I II I
90
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
92
UNION SCREW SPRING LOAD ACCUMULATOR CYLINDER M10X1 / VOSS 230,D 259885
94
SEAL RING , Replaced By: A0009940747
94
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
94
SEAL RING SPRING LOAD ACCUMULATOR CYLINDER TO M10 / VOSS 230,D 259885
96
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
96
LOCK SPRING LOAD ACCUMULATOR CYLINDER TO M10 / VOSS 230,D 259885
96
LOCK , Replaced By: A0009945448
97
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
98
SEAL RING , Replaced By: N007603010110
99
SCREW. UNION SCREW LINE CONNECTION
100
HOLLOW SCREW LINE CONNECTION
102
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
999
GUIDE SIGN DIFFERENTIAL LOCK
