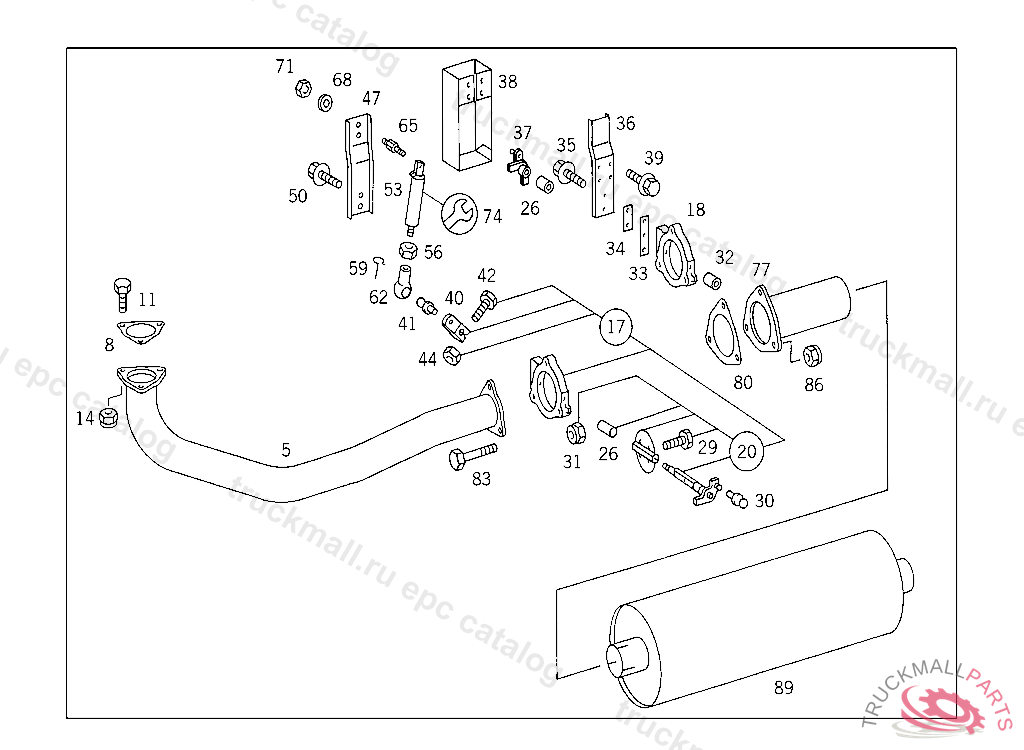

Поз.
Артикул
Описание
5
EXHAUST PIPE CONNECTING PIPE TO EXHAUST MANIFOLD
8
FLANGE GASKET EXHAUST PIPE TO EXHAUST MANIFOLD
11
SCREW CLAMPING BOLT TO BRACKET
14
NUT , Replaced By: N910113010004
14
NUT EXHAUST PIPE TO EXHAUST MANIFOLD
17
THROTTLE HOUSING EXHAUST BRAKE,B 898894
18
THROTTLE HOUSING EXHAUST BRAKE,B 898895
20
VALVE PARTS KIT,B 898895
20
VALVE PARTS KIT,B 884219
26
BUSHING ,B 898895
26
BUSHING
29
SCREW QUICK-RELEASE VALVE TO BRACKET
30
BALL PIVOT THROTTLE VALVE SHAFT,B 898894
31
NUT POWER CYLINDER TO BRACKET
32
BUSHING ,B 898895
33
INTERMEDIATE FLANGE ,B 898895
34
INTERMEDIATE FLANGE ,B 898895
35
SCREW BRACKET TO THROTTLE HOUSING,B 898895
36
BRACKET POWER CYLINDER TO PIVOT PIN,B 898895
37
LEVER THROTTLE VALVE SHAFT,B 898895
38
SCREENING PLATE ,B 898895
39
SCREW PROTECTIVE PLATE, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
40
LEVER EXHAUST-BRAKE THROTTLE VALVE
40
LEVER , Replaced By: A3661400232, +001N913017006000, +001N914126006025
41
BALL PIVOT
42
SCREW OVERLOAD PROTECTOR TO BRACKET
44
NUT
47
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 077169/N 817421 - 825202, Replaced By: A3661440440
47
BRACKET POWER CYLINDER, TO BE ADAPTED DURING ASSEMBLY
50
SCREW BRACKET TO THROTTLE HOUSING M 8X14,B 898894
53
CYLINDER (POWER CYLINDER),EXHAUST BRAKE, Replaced By: A0004307926
53
CYLINDER INCREASE IN NUMBER OF REVOLUTIONS KNORR
53
CYLINDER INTERMEDIATE SPEED STOP
53
CYLINDER , Replaced By: A0004306026
53
CYLINDER , Replaced By: A0004306026
53
CYLINDER , Replaced By: A0004305926
56
NUT ,B 884219
56
NUT ,B 884219
59
CIRCLIP ,B 884219
62
BALL SOCKET SHIFTING CYLINDER TO SHIFT LEVER
62
BALL SOCKET
65
PIN INTERMEDIATE SPEED STOP
68
WASHER INTERMEDIATE SPEED STOP
71
NUT LEVER TO SHIFTING SHAFT
74
REPAIR KITTO 000 430 48 26,KNORR
77
EXHAUST PIPE FRONT EXHAUST PIPE TO MUFFLER,B 884219
80
FLANGE GASKET EXHAUST PIPE TO EXHAUST MANIFOLD
80
FLANGE GASKET , Replaced By: A6004920080
83
SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M 12X1.5X75
86
NUT , Replaced By: N910113012006
89
EXHAUST MUFFLER
89
EXHAUST MUFFLER
89
EXHAUST MUFFLER
