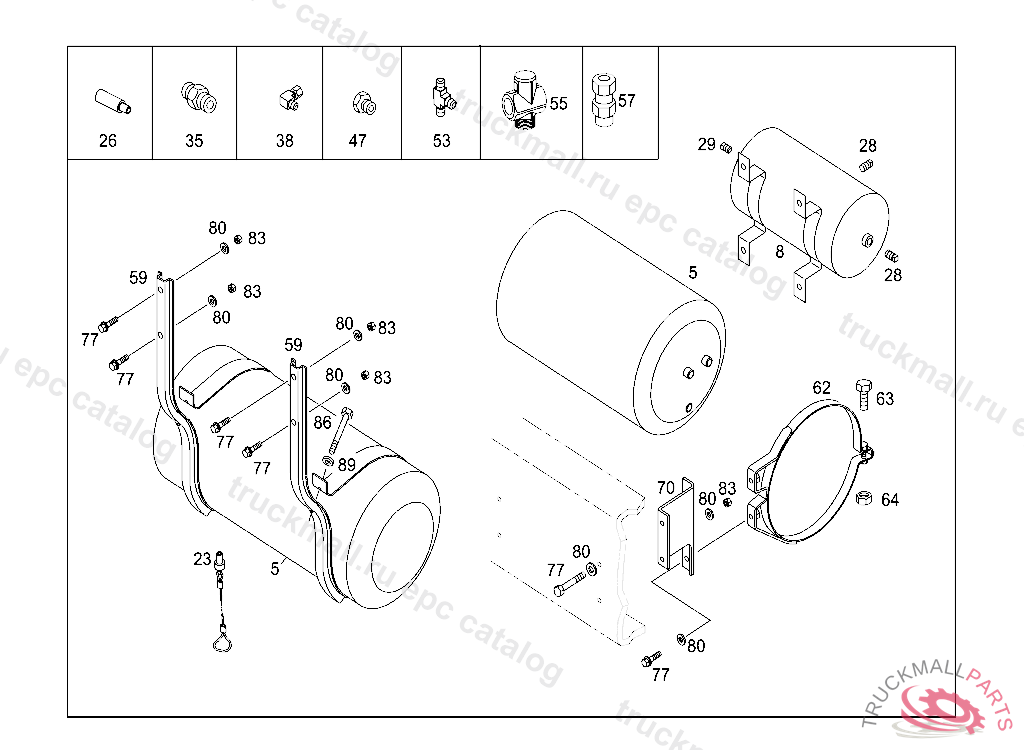

Поз.
Артикул
Описание
5
5
RESERVOIR AIR RESERVOIR, Replaced By: A6854300203
5
RESERVOIR AIR RESERVOIR 28.5 L
5
8
RESERVOIR AIR RESERVOIR4.5 LTS 276X1100MM
23
VALVE DRAIN VALVE
23
VALVE DRAIN VALVE
26
VALVE AT AIR RESERVOIR
28
PLUG OIL PRESSURE GAUGE
29
PLUG REGENERATION TANK BR 0,6MPT
35
PLUG AT AIR RESERVOIR
38
ELBOW FITTING AT AIR RESERVOIR
38
ELBOW FITTING90GR. 1/2NPTFX5/8T
47
FITTING AT AIR RESERVOIR
47
FITTING AT AIR RESERVOIR
53
T-FITTING , Replaced By: N210503000020
53
T-FITTING AT AIR RESERVOIR
59
BRACKET , Replaced By: A6854320540
59
BRACKET AIR RESERVOIR
62
BRACKET AIR RESERVOIR
63
64
70
BRACKET RIGHT AIR RESERVOIR
70
BRACKET LEFT AIR RESERVOIR
77
SCREW AIR RESERVOIR BRACKET TO FRAME 3/8-16X1/4 FG 8
80
WASHER SHIFTING ROD 3/8
80
WASHER FRONT SPRINGS TO FRONT AXLE 3/4
83
PART NAME MISSING NUT3/8" - 16
83
NUT. PART NAME MISSING NUT
86
SCREW AIR RESERVOIR TO BRACKET 3/8-16
89
SPRING WASHER 3/8
