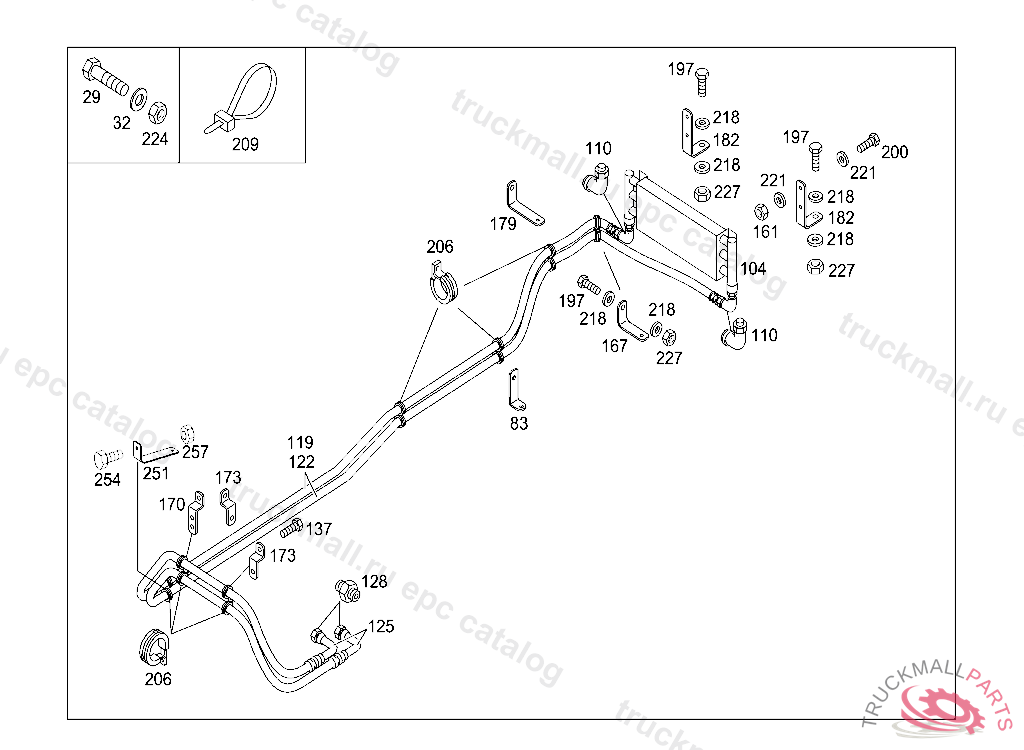

Поз.
Артикул
Описание
29
SCREW CABLE MOUNTING 1/4-20
32
WASHER HAND BRAKE VALVE 1/4
83
BRACKET LINE MOUNTING
104
OIL COOLER
110
ELBOW FITTING OIL COOLER
119
122
125
128
F-FITTING OIL COOLER
128
CONNECTOR OIL COOLER, Replaced By: A6859970069
137
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
161
PART NAME MISSING NUT
167
BRACKET ,M 026123
170
BRACKET BRAKE LINE TO CROSS MEMBER
173
BRACKET
179
BRACKET OIL COOLER,M 005046
182
197
PART NAME MISSING BATTERY CASE TO FRAME PARAFUSO
200
SCREW BRACKET TO STRUT 5/16-18
206
CLAMP COMPRESSED AIR LINE TO BRACKET
209
CLAMP. LOOM TIE
209
LOOM TIE BRAKE HOSE FIXTURE
218
PART NAME MISSING CONSOLE TO FRAME 1/2
221
WASHER VALVE TO BRACKET 5/16-.640
224
NUT COMPRESSED AIR LINE TO CROSS MEMBER1/4,M 033721
227
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
251
BRACKET
254
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
254
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
257
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
257
NUT HORN TO BRACKET M8
