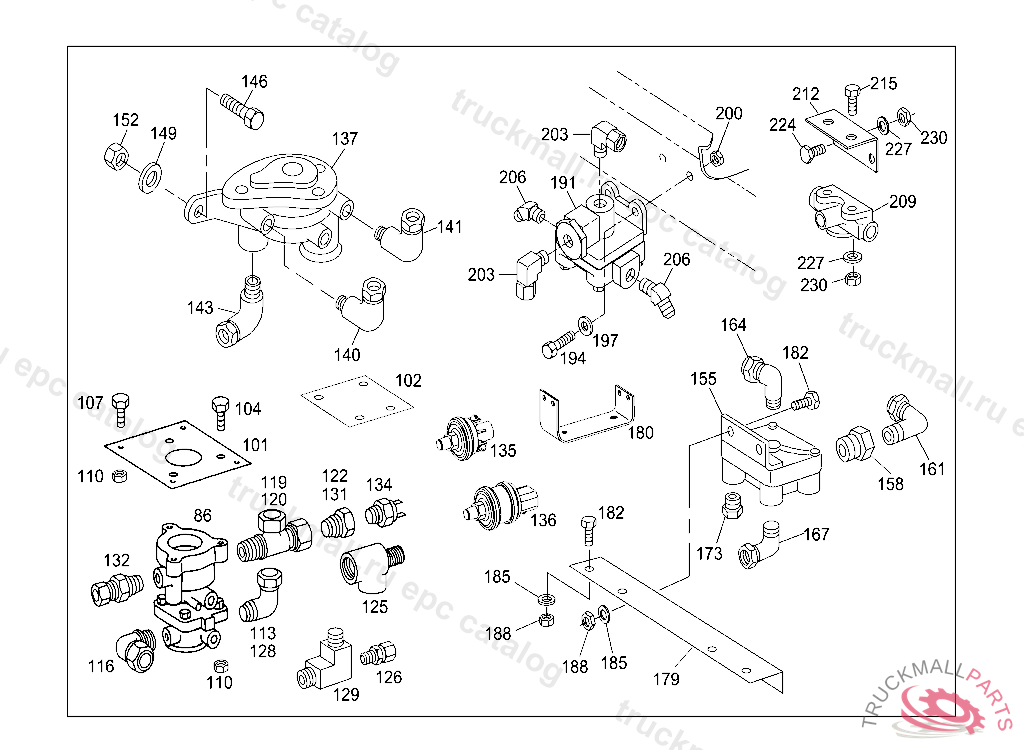

Поз.
Артикул
Описание
86
BRAKE VALVE
101
MOUNTING BRACKET BRAKE VALVE
104
PART NAME MISSING SCREW
107
SCREW5/16-18
107
PART NAME MISSING , Replaced By: A6889900001
110
PART NAME MISSING NUT
113
ELBOW FITTING90 GR. 1/4 NPTFM X 3/8T
116
ELBOW FITTING
119
T-FITTING
120
T-FITTING
122
ELBOW FITTING BRAKE VALVE 3/8 NPTFM X 1/4 NPTFH
125
FITTING90 GR. 1/4 NPTFM X 1/4 NPTH
126
128
ELBOW FITTING
129
ELBOW FITTING ,M 027041
131
ELBOW FITTING BRAKE VALVE 3/8 NPTFM X 1/4 NPTFH
132
ELBOW FITTING REGENERATION TANK
132
CONNECTOR ON AIR DRIER
134
SENDER UNIT4 PSI(.27BAR) - 1/4 - 18 NPT
136
SENDER UNIT66 PSI(4.55BAR) 1/8 - 27 NPT
137
VALVE (CHECK VALVE)
140
ELBOW FITTING45 GR. 1/4 NPTFM X 3/8 T
141
ELBOW FITTING90 GR. 1/4 NPTFM X 3/8T
143
FITTING90 GR. 1/4 NPTFM X 1/4 NPTH
146
SCREW BRACKET TO STRUT 5/16-18
149
WASHER VALVE TO BRACKET 5/16-.640
149
PART NAME MISSING , Replaced By: A6889900040
152
PART NAME MISSING NUT
155
VALVE (RELAY VALVE)
164
ELBOW FITTING90 GR. 1/4 NPTFM X 3/8T
167
ELBOW FITTING1/8" MPT X 1/4" T
173
FASTENER3/8-18 NPTF
179
MOUNTING BRACKET VALVE TO CROSS MEMBER
182
PART NAME MISSING SCREW
185
WASHER VALVE TO BRACKET 5/16-.640
188
PART NAME MISSING NUT
191
VALVE
194
PART NAME MISSING SCREW
197
WASHER VALVE TO BRACKET 5/16-.640
200
PART NAME MISSING NUT
206
ELBOW FITTING
224
SCREW CABLE MOUNTING 1/4-20
227
WASHER HAND BRAKE VALVE 1/4
230
NUT COMPRESSED AIR LINE TO CROSS MEMBER1/4,M 033721
999
ELBOW FITTING
999
FITTING AT AIR RESERVOIR
999
FITTING HOSE TO VALVE 3/8 NPTFM X 1/2 T
999
ELBOW FITTING90GR. 1/2NPTFX5/8T
999
FITTING1/4 X 1/4
999
999
T-FITTING AT AIR RESERVOIR
999
PLUG REGENERATION TANK BR 0,6MPT
999
WASHER
999
WASHER VALVE TO BRACKET 5/16-.640
999
FASTENER3/8-18 NPTF
999
NUT1-14
999
ELBOW FITTING BRAKE VALVE 3/8 NPTFM X 1/4 NPTFH
999
FITTING3/8 NPT
999
VALVE (QUICK-RELEASE VALVE) BW 5008333
999
VALVE (QUICK-RELEASE VALVE) GTD 223455
