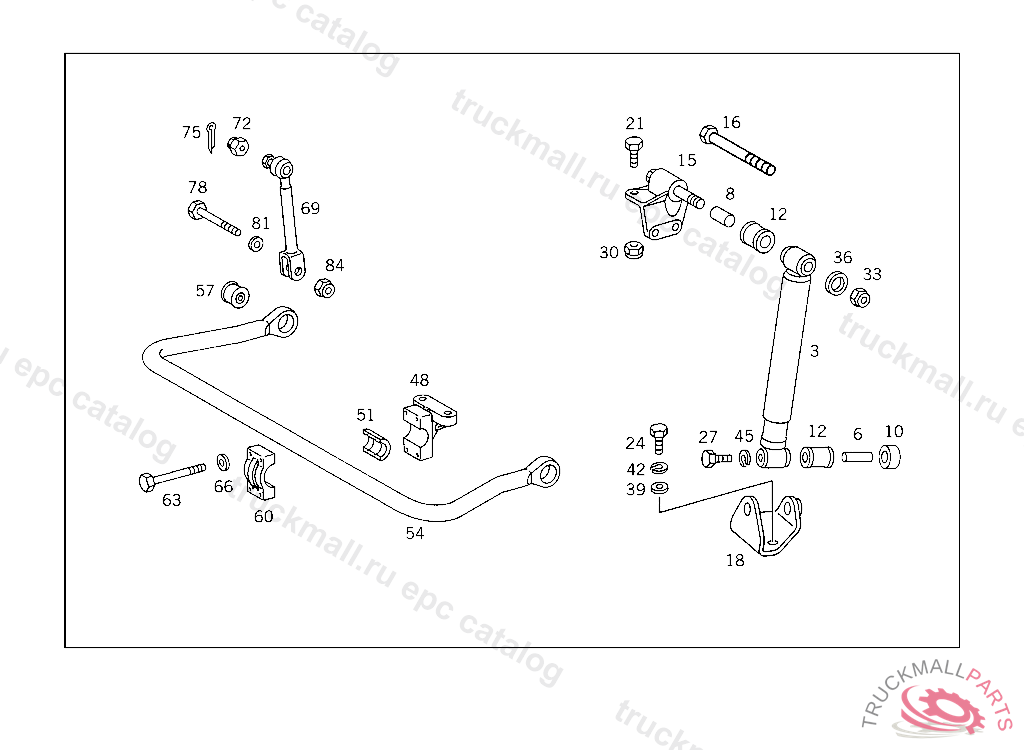

Поз.
Артикул
Описание
3
SHOCK ABSORBER ,B 967304
3
SHOCK ABSORBER FRONT
6
BUSHINGTO 384 323 72 00
8
BUSHINGTO 384 323 72 00
10
SPACER TUBETO 384 323 72 00
12
RUBBER MOUNTINGTO 384 323 72 00
15
CONSOLE TOP
16
SCREW
18
CONSOLE FRONT SHOCK ABSORBERS
21
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
24
SCREW CONSOLE TO BRACKET M 12X1.5X25,20 L
27
SCREW SHOCK ABSORBER TO BRACKET
30
NUT ALTERNATOR TO SUPPORT
33
NUT , Replaced By: N910113016001
36
WASHER , Replaced By: A6249900040
36
WASHER SHOCK ABSORBER TO UPPER BEARING BRACKET
39
WASHER SUPPORT TO FRAME,D 127794
42
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
45
LOCK WASHER TRANSMISSION TO BELL HOUSING
48
BEARING BRACKET HOLE SPACING: 100 MM
51
GROMMET STABILIZER
51
GROMMET STABILIZER
54
TORSION BAR STABILIZER,D 012296
57
BUSHING
60
BEARING SHELL TORSION BAR BEARING
63
SCREW (ARTICULATED ROD)
66
WASHER (ARTICULATED ROD)
69
ROD (ARTICULATED ROD) NAKATA,D 012296
69
ROD (ARTICULATED ROD) TRW,D 012296
72
NUT
75
COTTER PIN (ARTICULATED ROD)
78
SCREW ARTICULATED ROD TO LEVER
81
WASHER
84
NUT BRACKET TO BATTERY CASE
