Поз.
Артикул
Описание

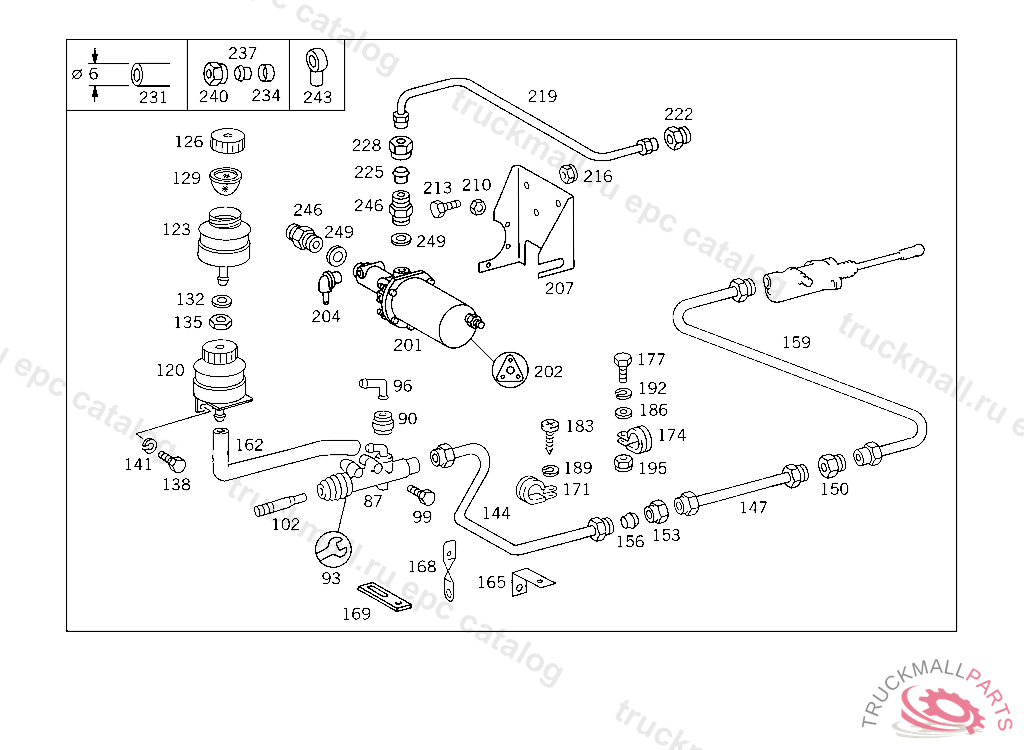

87
MASTER CYLINDER CLUTCH M14X1,D 561822
87
MASTER CYLINDER , Replaced By: A3882957206
87
MASTER CYLINDER , Replaced By: A0012959706
90
PLUG
93
CYLINDER. REPAIR KIT REPAIR KIT TO 384 295 70 06
93
REPAIR KIT CLUTCH MASTER CYLINDER TO 388 295 72 06
93
CYLINDER. REPAIR KIT CLUTCH MASTER CYLINDER,5 366604
96
INTERMEDIATE PIECE , Replaced By: A0002950036
99
SCREW
102
ROD CLUTCH PEDAL
120
RESERVOIR (RESERVOIR)
123
RESERVOIR WITH LOCKING CAP
126
FILLER CAP
129
STRAINER
132
PART NAME MISSING WASHER
135
NUT CONTROL ARM TO REAR AXLE
138
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
141
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
144
LINE FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE
147
LINE FROM CONNECTION FITTING TO SLAVE CYLINDER
150
UNION SCREW
162
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
168
BRACKET LINE MOUNTING
171
CLAMP LINE MOUNTING
177
SCREW CLAMP TO BRACKET
183
SHEET METAL SCREW BRACKET TO CAB
195
NUT
201
CLUTCH BOOSTER CLUTCH PEDAL PRESSURE BOOST
201
CYLINDER , Replaced By: A0002952718, +001A3842908214, +001A3822947140
202
GASKET KIT CYLINDER TO 000 290 21 12
204
BREATHER , Replaced By: A3933280065
207
BRACKET CYLINDER TO 0002902112,087894
207
BRACKET CYLINDER TO 000 290 21 12,100406
210
NUT CYLINDER TO BRACKET TO0002902112
213
SCREW SWITCH TO BRACKET 8X16
216
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
219
LINE CLUTCH MASTER CYLINDER A0002952718,100406
219
LINE CLUTCH MASTER CYLINDER A0002952718,087895
219
LINE CLUTCH MASTER CYLINDER TO 0002902112,087894
222
UNION SCREW
225
GLAND LINE CONNECTION
228
UNION NUT LINE CONNECTION
246
FITTING QUICK BREATHER VALVE,REAR, CONNECTION: "23"
246
FITTING , Replaced By: A0039979972
249
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
249
SEAL RINGTO 000 553 03 05,000 553 18 05,
999
GASKET KIT CYLINDER TO 000 295 27 18
