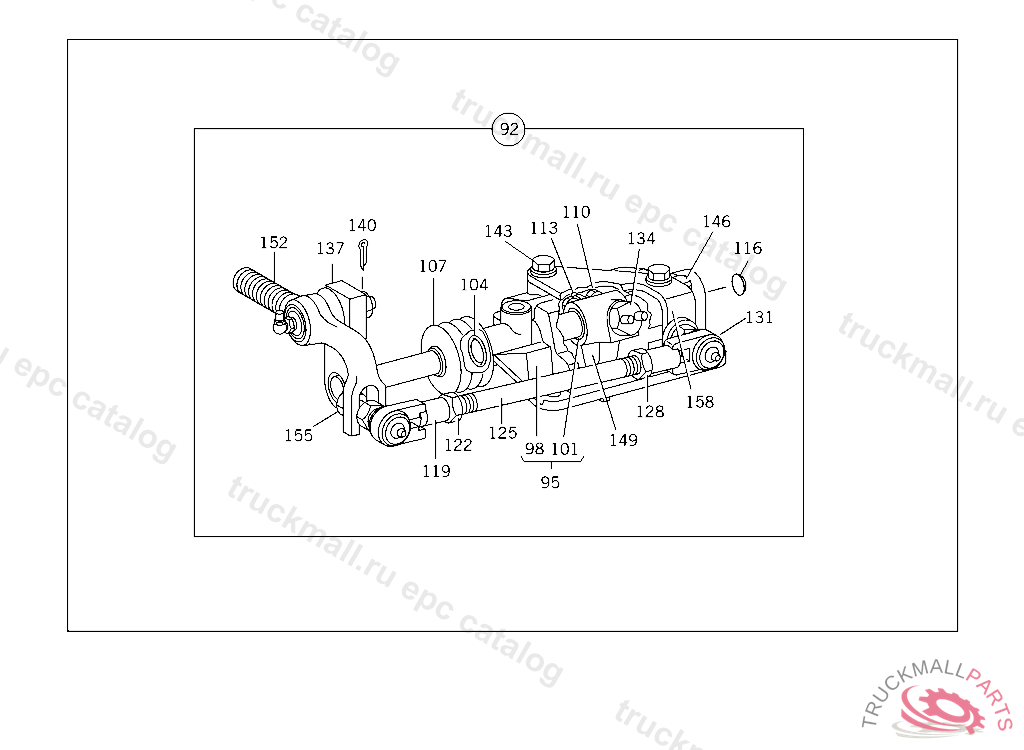

OMC 1421 - 685.441 - 26 TRANSMISSION
Поз.
Артикул
Описание
92
SHIFT CASE
95
SHIFT CASE
98
SHIFT CASE
101
BUSHING
104
SEAL RING
107
BOOT
110
SCREW
113
LOCK
116
COVER
119
JOINT
122
NUT
125
PULL ROD
128
NUT
131
JOINT
134
SWITCH
137
BRACKET
140
COTTER PIN
143
SCREW
146
VALVE
149
SHIFTING FINGER
152
SHIFTING ROD
155
NUT
158
BRACKET
999
SHIFTING ROD
999
SHIFTING ROD
999
SHIFTING ROD
999
SHIFTING ROD
999
BRACKET AT SHIFT LEVER HOUSING
999
JOINT SHIFTING TUBE
999
JOINT SHIFTING TUBE
999
SHIFTING TUBE
999
SCREW DRIVE FLANGE 7/16-20
999
SCREW DRIVE FLANGE 3/8-16
999
PART NAME MISSING SPRING WASHER
999
PART NAME MISSING WASHER 5/16
999
PART NAME MISSING BRACKET TO FRONT CROSS MEMBER 5/16-18 X 1 FG8
999
PART NAME MISSING SCREW 5/16-18
999
PART NAME MISSING SCREW
999
PART NAME MISSING NUT
999
PART NAME MISSING NUT
