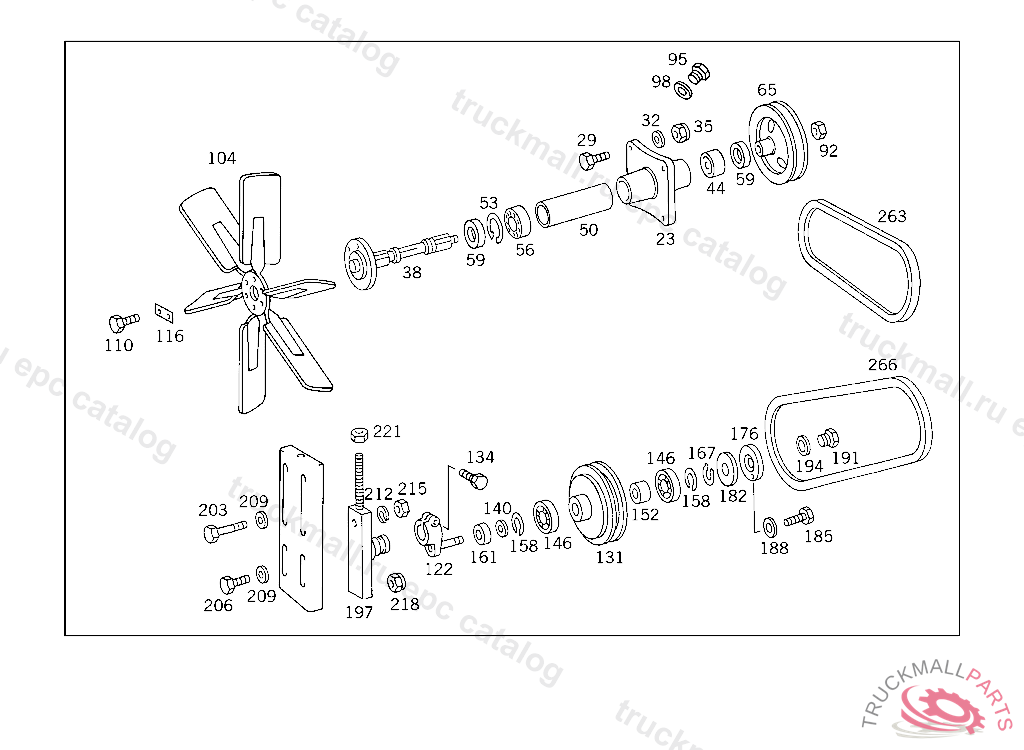

Поз.
Артикул
Описание
23
BEARING BODY FAN DRIVE
29
SCREW CLUTCH TO FLYWHEEL M 8X60
32
WASHER TRAILER PLUG SOCKET TO BRACKET
35
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
38
FAN SHAFT
44
CYLINDR. ROLLER BEARING FAN DRIVE
50
SPACER TUBE
53
LOCK RING52X2 MM
56
BALL BEARING FAN DRIVE
59
SEAL RING CASE COVER
65
PULLEY FAN DRIVE
92
NUT SPRING SEAT AND BEARING BRACKET TO REAR AXLE
95
SCREW PLUG 4/2-WAY VALVE
98
SEAL RING PNEUMATIC VALVE
104
FAN POWER SAVER FAN
110
SCREW LINES TO BRACKET
116
LOCK
131
PULLEY BELT TIGHTENER PULLEY
206
SCREW PLUG SOCKET TO FRAME
218
NUT BRACKET TO SIDE MEMBER
263
V-BELT FAN DRIVE,D 180260
266
V-BELT TIGHTENER PULLEY
