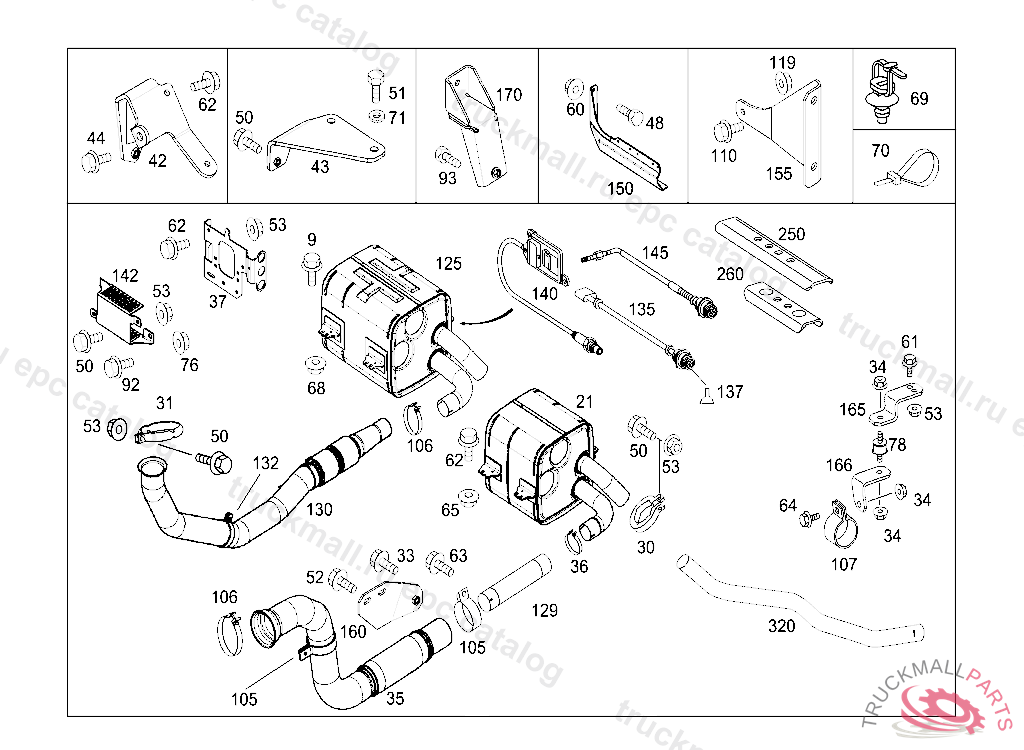

Поз.
Артикул
Описание
21
30
CLAMP REAR EXHAUST PIPE TO MUFFLER
30
CLAMP EXHAUST PIPE TO MUFFLER
33
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
34
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
35
35
36
37
44
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
48
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
50
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
50
SCREW BUMPER TO REAR CROSS MEMBER M 8X50
50
SCREW. HEXAGON HEAD BOLT FRONT EXHAUST PIPE TO MUFFLER M8X110 - TO A 979 492 03 40
50
SCREW , Replaced By: N910143008000
50
HEXAGON HEAD BOLTM8X130,TO A 674 492 00 40
52
SCREW STOP TO BATTERY CASE
53
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
53
NUT HORN TO BRACKET M8
53
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
60
NUT SUPPORT TO FRAME
61
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
62
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
62
SCREW BRACKET TO CAB REAR PANEL M 8X20
63
SCREW SHIFT LEVER TO BRACKET M8X30
64
SCREW BRACKET TO SIDE MEMBER M10X35
65
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
68
NUT BRACKET TO SIDE MEMBER M12X1.5
68
NUT BRACKET TO LEFT SIDE MEMBER
69
LOOM TIE
70
LOOM TIE ELECTRIC CABLE MOUNTING
71
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
76
NUT BRACKET TO BODY SHELL M6
78
RUBBER BUFFER EXHAUST MUFFLER
92
SCREW , Replaced By: N914146006102
93
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 65
105
CLAMP
106
CLAMP FRONT EXHAUST PIPE TO MUFFLER
107
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
110
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
119
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
129
129
135
ELECTRIC CABLE ADAPTER "NOX"
135
ELECTRIC CABLE ADAPTER "NOX"
137
NUT. CLAMPING RING
140
NOX SENSOR NOX PROBE
140
CONTROL UNIT SENSOR NOX
142
145
SENDER UNIT"T2"
145
SENDER UNIT"T1"
145
SENDER UNIT TEMPERATURE SENSOR,EXHAUST T2
150
150
150
155
155
160
165
166
170
250
260
320
REAR EXHAUST PIPE (TAIL PIPE) 90MM
320
999
STRAPTO A 695 490 04 01
999
BRACKET FRONT TO A 695 490 04 01
999
BRACKET REAR TO A 695 490 04 01
999
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
