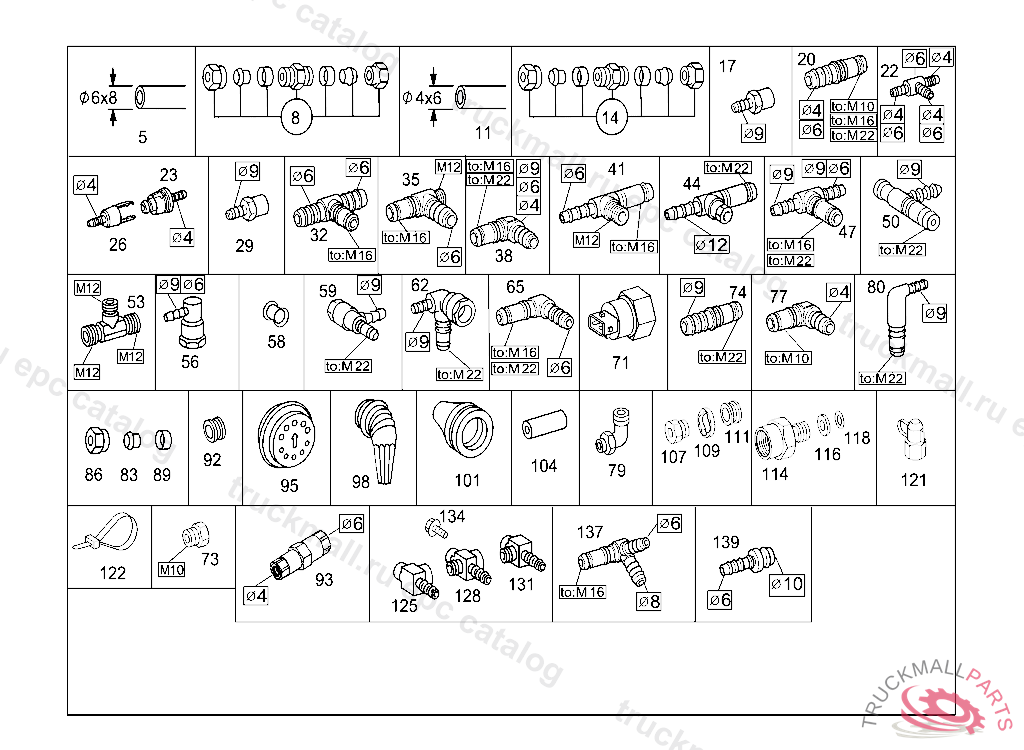

Поз.
Артикул
Описание
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
5
PLASTIC PIPE8X6 MM, ORDER BY THE METER
5
PLASTIC PIPE AERATION, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE
11
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
11
PLASTIC PIPE RISING PIPE 4X6 MM
14
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
17
CONNECTOR , Replaced By: A0009908878
20
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
20
CONNECTOR , Replaced By: A0029905378
20
CONNECTORTO M22 / 4MM / VOSS 230
20
CONNECTOR HOSE WIDTH, 6 MM, TO M22
20
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M22, 6MM, VOSS 232
20
CONNECTOR , Replaced By: A0029905478
20
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M16, 6MM, VOSS 232, Replaced By: A0049976989
22
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
23
PLUG COMPRESSED AIR PIPING,YB227219
23
PLUG COMPRESSED-AIR-LINE PLUG-CONNECTION
26
COUPLING COMPRESSED AIR PIPING,YB227219
26
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION
29
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
32
T-FITTING , Replaced By: A0059903170
35
ELBOW FITTING HOSE WIDTH, 8 MM, TO M 16
38
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 6 MM, VOSS 232, Replaced By: A0059972689
38
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
41
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
44
T-FITTINGTO M22 / 12MM / M 10X1 / VOSS 230
47
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M22 / 9MM / 9MM / VOSS 230,D 248571
47
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
50
T-FITTINGTO M22 / 9MM / M10X1 / VOSS 230,D 248571
53
T-FITTING FITTING,5 461950
56
ELBOW FITTING12 MM / M22X1,5 / VOSS 230
59
ELBOW FITTING COMPRESSED AIR LINE TO M22 / 9MM / M16X1,5 / VOSS 230
62
ELBOW FITTING COMPRESSED AIR PIPING,YB227219
65
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
65
ELBOW FITTING HOSE WIDTH, 4 MM,TO M 22
65
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 6 MM, VOSS 232
65
ELBOW FITTING , Replaced By: A0049905371
73
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 10, VOSS 232, Replaced By: A0009975034
74
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
77
ELBOW FITTINGTO M10 / 4MM /VOSS 230
80
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM
83
GLAND LINE CONNECTION
86
UNION NUT LINE CONNECTION
89
SLEEVE LINE CONNECTION
92
GROMMET
92
GROMMET MAIN CABLE HARNESS THRU WINDOW SILL 36X25 MM
95
95
98
INSULATING HOSE BRACKET TO FIRE WALL,D 013019
101
GROMMET , Replaced By: A3359970081
104
INSULATING HOSE COLOR CODE BLUE,YB227219
104
INSULATING HOSE COLOR CODE GREEN
104
INSULATING HOSE COLOR CODE BLUE 2X0,01 MM
104
INSULATING HOSE RED, ORDER BY THE METER
104
INSULATING HOSE COLOR CODE YELLOW, ORDER BY THE METER
104
INSULATING HOSE FROM FIRE WALL TO HAND BRAKE VALVE
104
INSULATING HOSE
104
INSULATING HOSE COLOR CODE BROWN
104
INSULATING HOSE CHECK VALVE,CONNECTION "2"
104
INSULATING TUBING COLOR CODE ORANGE 16 MM, ORDER BY THE METER
104
INSULATING HOSE BLUE
104
INSULATING TUBING WITHE, ORDER BY THE METER
104
INSULATING TUBING COLOR CODE GREY 16 MM, ORDER BY THE METER
104
INSULATING HOSE RED, ORDER BY THE METER
104
INSULATING HOSE COLOR CODE GREY,YB227219
104
INSULATING HOSE COLOR CODE BROWN
104
INSULATING HOSE8X0,01 MM
104
INSULATING TUBING COLOR CODE GREY, ORDER BY THE METER
104
INSULATING HOSE COLOR CODE YELLOW 16 MM, ORDER BY THE METER
104
INSULATING HOSE , ORDER BY THE METER
104
INSULATING HOSE COLOR CODE ORANGE 12X0.8 MM, ORDER BY THE METER
104
INSULATING HOSE , ORDER BY THE METER
104
INSULATING HOSE
122
LOOM TIE ELECTRIC CABLE MOUNTING
125
CONNECTOR DISTRIBUTOR TO CAB
131
CONNECTOR DISTRIBUTOR TO CAB
