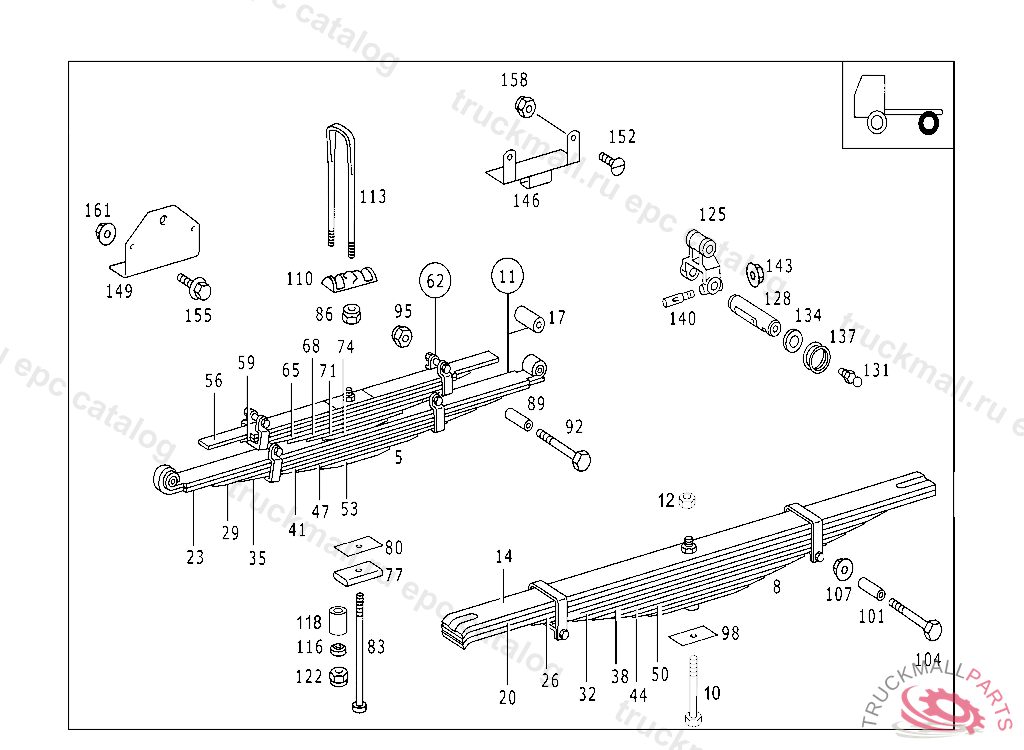

Поз.
Артикул
Описание
5
REAR SPRING 7-LEAF,WITH 7-LEAF HELPER SPRING
11
REAR SPRING PARTS KIT NO.1
17
BUSHING
17
BUSHING
23
SPRING LEAF
29
SPRING LEAF
35
SPRING LEAF
41
SPRING LEAF PARTS KIT NO.5
47
SPRING LEAF
53
SPRING LEAF
56
SPRING LEAF HELPER SPRING
59
SPRING LEAF HELPER SPRING
62
REAR SPRING PARTS KIT NO.3
65
SPRING LEAF HELPER SPRING NO. 04
68
SPRING LEAF HELPER SPRING NO. 05
71
SPRING LEAF HELPER SPRING NO.6
74
SPRING LEAF HELPER SPRING NO. 7
77
SPACER AT REAR AXLE
80
SPACER
83
SPRING BOLT ,5 201989
86
NUT , Replaced By: N910113012005
89
SPACER TUBE SPRING CLAMP
92
SCREW SPRING CLAMP M 10X70
95
NUT SPRING CLAMP
110
PLATE REAR AXLE TO TO REAR SPRINGS
113
U-BOLT , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY PAIRS5 999999K 000001 - K 028584, Replaced By: A6793510825, +001A6793250031
113
U-BOLT REAR SPRING TO REAR AXLE
116
WASHER FRONT SPRINGS TO FRONT AXLE
122
NUT STABILIZER TO FRONT AXLE
125
SHACKLE REAR-SPRING REAR BRACKET
128
SHACKLE PIN
128
SHACKLE PIN REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS
131
GREASE NIPPLE PROTECTIVE TUBE
134
WASHER AS REQUIRED 4.0 MM
134
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
134
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
134
WASHER AS REQUIRED 4.2 MM
137
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
140
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
143
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
146
149
ANGLE ,W186703
152
SCREW STOP BUFFER TO FRAME M 10X30
155
158
NUT SPRING CLAMP
161
NUT TRAILER COUPLING TO REAR CROSS MEMBER
