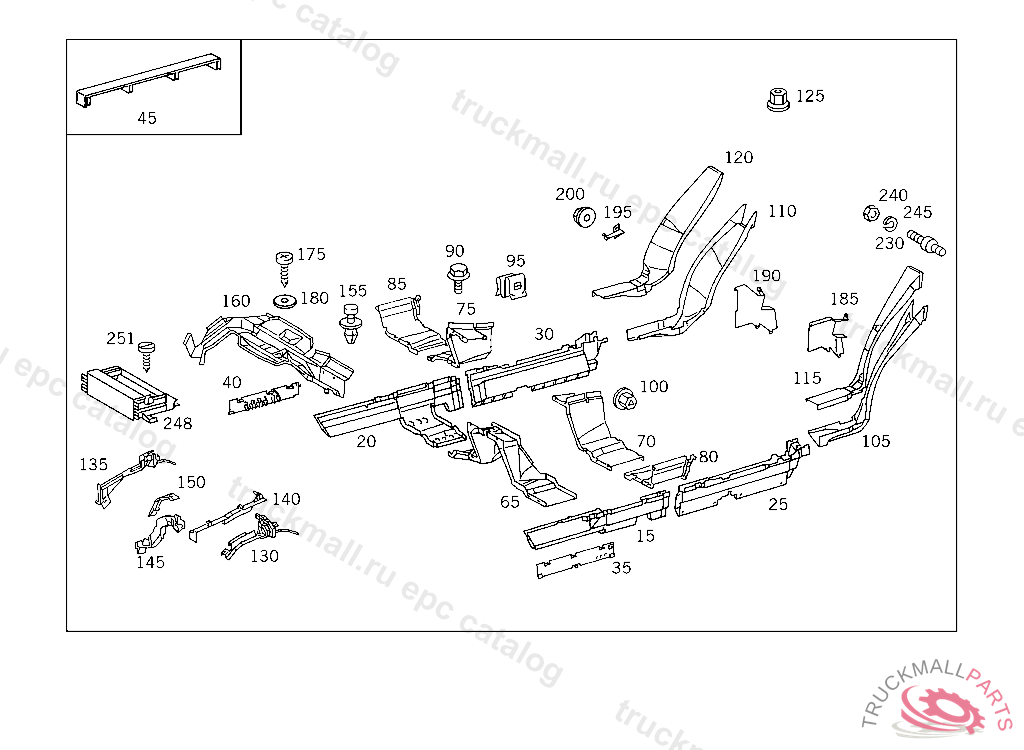

Поз.
Артикул
Описание
15
DUCT FRONT LEFT
20
DUCT FRONT RIGHT
25
DUCT CENTRAL LEFT
30
DUCT CENTRAL RIGHT
35
PLATE LEFT A-PILLAR CABLE DUCT, A 436535 F 483847 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM A 436536, F 483848 WITH CODE 806
35
PLATE RIGHT A-PILLAR CABLE DUCT, A 436535 F 483847 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM A 436536, F 483848 WITH CODE 806
40
LEDGE LEFT A-PILLAR CABLE DUCT
40
LEDGE RIGHT A-PILLAR CABLE DUCT
45
TERMINAL
65
DUCT OVER TUNNEL, F 129679 T 028296 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE TO F 129678, T 028295 WITH CODE 800
65
DUCT OVER TUNNEL, F 129678 T 028295 EXCEPT CODE 800 ALSO INSTALLED IN VEHICLE FROM F 129679, T 028296 WITH CODE 809
70
COVER ABOVE TUNNEL,LEFT, UP TO END OF MODEL YEAR 1999
70
COVER ABOVE TUNNEL,LEFT, FROM MODEL YEAR 2000
75
COVER ABOVE TUNNEL,RIGHT, UP TO END OF MODEL YEAR 1999
75
COVER ABOVE TUNNEL,RIGHT, F 129679 T 028296 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE TO F 129678, T 028295 WITH CODE 800
80
COVER LEFT T-FITTING CONNECTION
85
COVER RIGHT T-FITTING CONNECTION
90
TAPPING SCREW PROTECTIVE GRILLE 4.8X16 MM
90
COMBINATION BOLT. TAPPING SCREW , Replaced By: N000000000548
95
SPRING CABLE COVERING TO SIDE MEMBER
100
NUT COVERING TO CAB FIRE WALL
100
NUT , Replaced By: N913023006001
105
DUCT LEFT REAR WHEEL ARCH
110
DUCT RIGHT REAR WHEEL ARCH
115
COVER LEFT REAR WHEEL ARCH
120
COVER RIGHT REAR WHEEL ARCH
125
CLAMPING ELEMENT REAR WHEEL ARCH,TOP
130
CABLE CONDUIT LEFT FRONT WHEELHOUSE
135
CABLE CONDUIT WHEELHOUSE, FRONT RIGHT
145
DUCT FRONT
150
COVER FRONT
155
RIVET , Replaced By: A1249900592
160
DUCT COVERING TO INSTRUMENT PANEL
160
DUCT COVERING TO INSTRUMENT PANEL
175
SHEET METAL SCREW BRACKET TO FIRE WALL
180
WASHER COMPRESSED AIR LINE TO BRACKET
180
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
185
BRACKET WHEEL ARCH IN LUGGAGE COMPARTMENT,LEFT
185
BRACKET WHEEL ARCH IN LUGGAGE COMPARTMENT,LEFT
190
BRACKET WHEEL ARCH,LUGGAGE COMPARTMENT,RIGHT
190
BRACKET WHEEL ARCH,LUGGAGE COMPARTMENT,RIGHT
195
BRACKET RIGHT REAR SIDE MEMBER
200
NUT COVERING TO CAB FIRE WALL
230
CABLE CONNECTOR HEATED WINDSHIELD
240
NUT BALL PIVOT TO LEVER
245
SPRING WASHER LICENSE PLATE TO BRACKET
248
BRACKET
251
SHEET METAL SCREW ELECTRIC CABLE TO CAB
999
TERMINAL LEFT & RIGHT CABLE DUCTS
