Поз.
Артикул
Описание
5

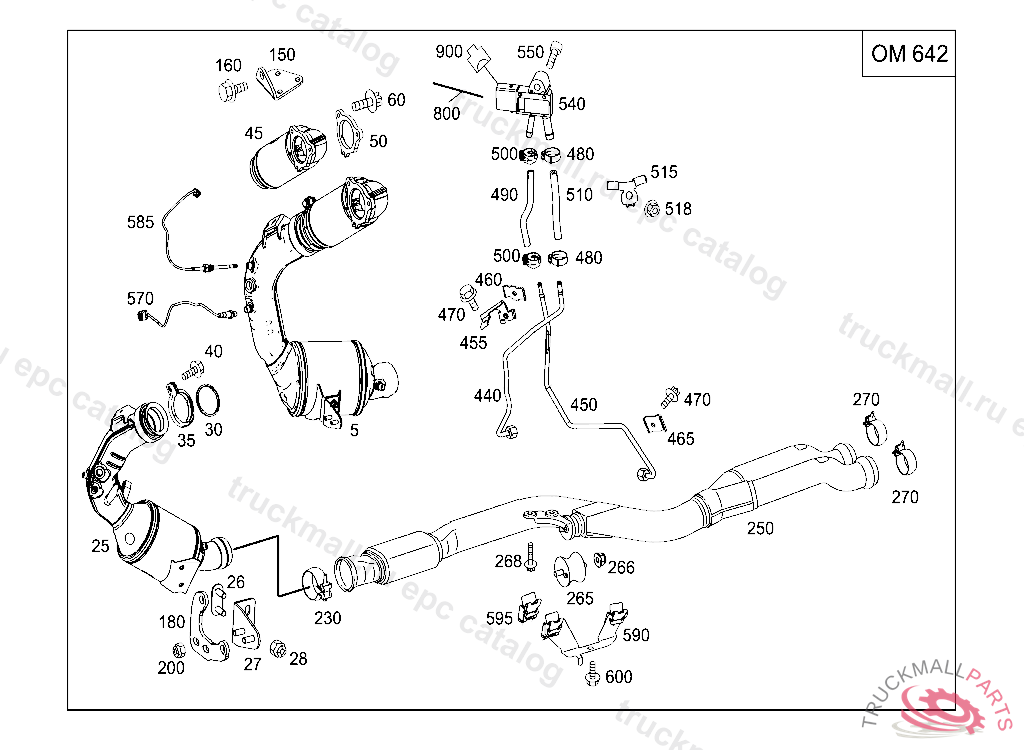

EXHAUST SYSTEM
25
DIESEL PARTICULATE FILTER , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
25
CATALYTIC CONVERTER SYS. , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
26
BASE PLATE BRACKET TO FRONT EXHAUST PIPE
27
BRACKET
27
BRACKET TO PARTICULATE FILTER
28
HEXAGON NUT SCREENING PLATE,5 163561
30
SEAL RING UPSTREAM OF PARTICULATE FILTER
35
CLAMP EXHAUST LINE TO EXHAUST PIPE, FRONT
40
SCREW CLAMP ON BRACKET
45
CATALYTIC CONVERTER SYS. , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
45
CATALYTIC CONVERTER SYS. , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
50
FLANGE GASKET FRONT
60
BOLT CATALYST TO BRACKET M8X20
150
BRACKET TO PRE-CATALYST
160
HEXALOBULAR BOLT COVER PANEL FASTENING M8 X 16
180
BRACKET AT OIL PAN
200
HEXAGON NUT SCREENING PLATE,5 163561
230
CLAMP FRONT EXHAUST PIPE TO REAR EXHAUST PIPE 76 MM
250
EXHAUST PIPE
265
SUSPENSION RING AT EXHAUST PIPE
266
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
268
BOLT EXHAUST PIPE AT FRONT TO ENGINE SUPPORT
270
CLAMP FRONT EXHAUST PIPE TO REAR EXHAUST PIPE 60 MM
440
PRESSURE LINE UPSTREAM OF PARTICULATE FILTER
450
PRESSURE LINE DOWNSTREAM OF PARTICULATE FILTER
455
BRACKET ATTACHMENT DELIVERY LINE
460
SHACKLE UPPER PART
470
SCREW. HEXAGON HEAD BOLT RELAY TO BRACKET M5X16
480
LOOM TIE , A 358832 EXCEPT FOR A 331465 - A 358832 WITH CODE 057
490
EXHAUST HOSE TO PRESSURE SENSOR
500
HOSE CLAMP HOSE ATTACHMENT
510
EXHAUST HOSE TO PRESSURE SENSOR
515
BRACKET FASTENING, EXHAUST HOSES
518
NUT BRACKET TO BODY SHELL M6
540
PRESSURE SENSOR
540
PRESSURE SENSOR PARTICLE FILTER
550
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
570
OXYGEN SENSOR
585
TEMPERATURE SENSOR , F 40103120090831MF 411381
585
TEMPERATURE SENSOR
585
TEMPERATURE SENSOR , A 29262120090430 F 34908420090503 A 32455320090730 F 40103020090831 P F 411381
590
BRACKET OXYGEN SENSOR LEAD MOUNTING
595
BRACKET TO SHIELD
600
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
800
ELECTRICAL WIRING HARNESS DIFFERENTIAL PRESSURE SENSOR
900
HOUSING DIFFERENTIAL PRESSURE SENSOR 3-PIN SLK2.8,B28/8
900
COUPLING HOUSING DIFFERENTIAL PRESSURE SENSOR 3-PIN SLK2.8,B28/17
