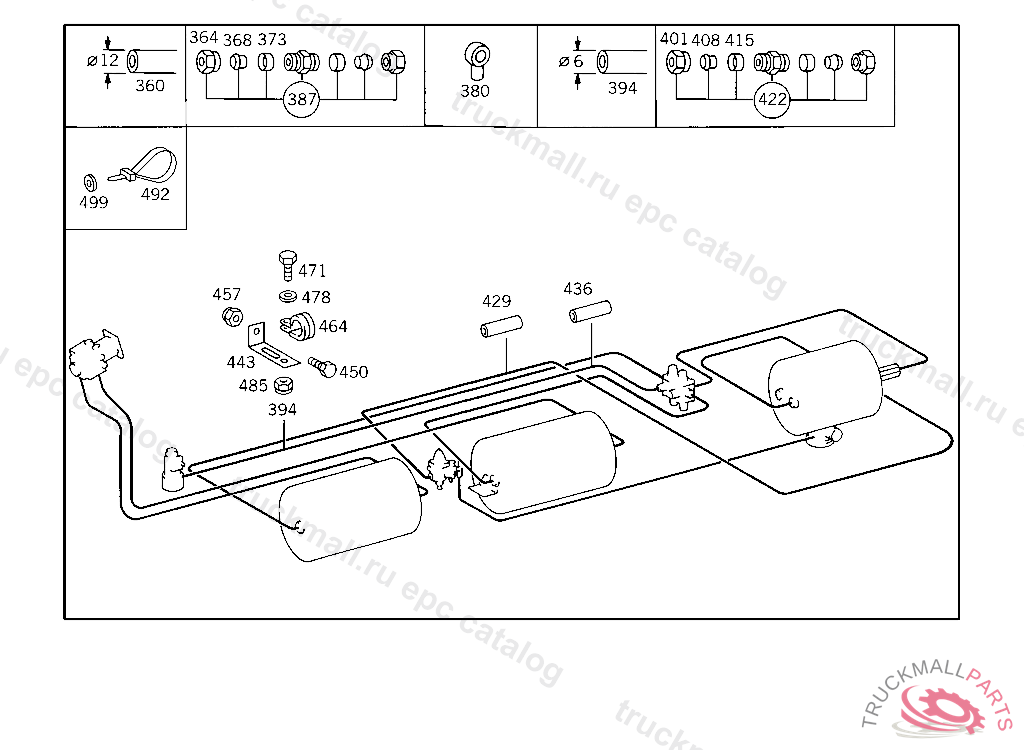

Поз.
Артикул
Описание
360
HOSE , Replaced By: A0009872827
360
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
360
PLASTIC PIPE FRONT AXLE PNEUMATIC SUSPENSION 12X9 MM, ORDER BY THE METER
364
UNION NUT LINE CONNECTION, Replaced By: N000000006239
368
GLAND , Replaced By: A0019901967
373
SLEEVE LINE CONNECTION
380
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM,026097
387
FITTING (PARTS KIT),LINE RUPTURE
394
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
401
UNION NUT
408
GLAND , Replaced By: A0019901667
415
SLEEVE LEAK LINE
422
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
429
INSULATING HOSE CHECK VALVE,CONNECTION "2"
436
INSULATING HOSE8X0,01 MM
443
BRACKET , Replaced By: A3464296040
450
SCREW BRACKET TO SIDE MEMBER
457
NUT BRACKET TO SIDE MEMBER,XB209706
464
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
471
SCREW CLAMP TO BRACKET
478
WASHER PLUG SOCKET TO BRACKET
485
NUT PUMP TO BRACKET
492
LOOM TIE
492
LOOM TIE , Replaced By: A3459977390
492
LOOM TIE LINE MOUNTING
492
LOOM TIE ELECTRIC CABLE MOUNTING
492
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
499
WASHER , Replaced By: A3609902340
999
VALVE
999
VALVE DRAIN, Replaced By: A0004322407
999
VALVE , Replaced By: A0004322407
999
VALVE , Replaced By: A0004322407
999
VALVE. DRAIN VALVE DRAIN
999
VALVE
999
RUBBER BUFFER EXHAUST MUFFLER
999
SUPPORT TAIL PIPE
999
SUPPORT , Replaced By: A6884327316
999
REINFORCEMENT
999
BASE AIR RESERVOIR TO CONSOLE
999
PROTECTIVE TUBE COMPRESSED AIR LINE TO BATTERY CASE
999
CLAMP COMPRESSED AIR LINE TO BATTERY CASE
999
BRACKET LINE MOUNTING
999
PLATE STRAP
999
CLAMP , Replaced By: N916017011000
999
BRACKET , Replaced By: A3184280240
999
STRAP AIR RESERVOIR TO CONSOLE
999
CLAMP LINE MOUNTING
999
GROMMET , Replaced By: A4069975081
999
CONSOLE AIR RESERVOIR II
999
BRACKET LEFT SIDE MEMBER,D 030553
999
BRAKE CABLE , Replaced By: A6884207985
999
BRAKE CABLE , Replaced By: A6884208285
999
BRAKE CABLE
999
BRAKE CABLE
999
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
999
CLAMP EXHAUST PIPE TO SUPPORT,D 250888
999
EXHAUST PIPE REAR
999
BRACKET TAIL PIPE BRACKET
999
BRACKET TAIL PIPE TO BRACKET
999
PROTECTIVE PLATE ,B 984609
999
SUPPORT ,B 984609
999
RESERVOIR
999
PAD SUPPORT TO SIDE MEMBER
999
REAR EXHAUST PIPE (TAIL PIPE),D 339845
999
SUPPORT ,D 250888
999
REAR EXHAUST PIPE ,D 339845
999
SUPPORT ,D 250888
999
BRACKET REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER,D 250888
999
BRACKET ,D 250888
999
CLAMP LINE MOUNTING
999
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
999
CLAMP BATTERY CABLE TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
