Поз.
Артикул
Описание

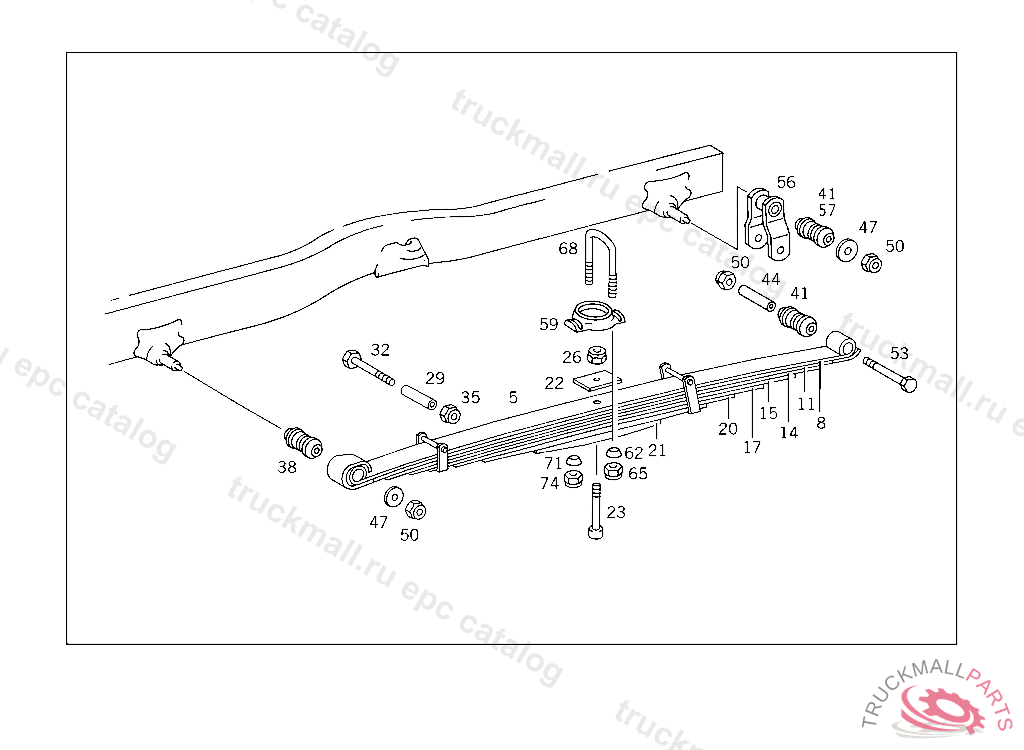

5
REAR SPRING 7-LEAF
5
REAR SPRING 9-LEAF
5
REAR SPRING 9-LEAF
8
SPRING LEAFNO.1,TO 688 320 02 06
8
SPRING LEAFNO.1,TO 688 320 72 06
8
SPRING LEAF PARTS KIT NO.1,TO 688 320 71 06
11
SPRING LEAFNO.2,TO 688 320 72 06
11
SPRING LEAFNO.2,TO 688 320 02 06
11
SPRING LEAFNO.2,TO 688 320 71 06
14
SPRING LEAFNO.3,TO 688 320 71 06
14
SPRING LEAFNO.3,TO 688 320 02 06
14
SPRING LEAFNO.3,TO 688 320 72 06
15
SPRING LEAFNO.4,TO 688 320 72 06
15
SPRING LEAFNO.4,TO 688 320 71 06
17
SPRING LEAFNO.5,TO 688 320 71 06
17
SPRING LEAFNO.5,TO 688 320 72 06
20
SPRING LEAFNO.6,TO 688 320 72 06
20
SPRING LEAFNO.6,TO 688 320 71 06
20
SPRING LEAFNO.6,TO 688 320 02 06
21
SPACERTO 688 320 72 06
23
SPRING BOLT REAR SPRING M10X150
26
NUT SPRING BOLT
29
SPACER TUBE , Replaced By: A0003213253
29
SPACER TUBE ,R 034014
32
SCREWM 8X90
32
SCREW ,R 034014
35
NUT HORN TO BRACKET M8
35
NUT , Replaced By: A0009906350
38
RUBBER BUFFER SPRING EYE,FRONT
41
RUBBER MOUNTING REAR SPRING TO SPRING SHACKLE AND TO SPRING REAR BRACKET
44
SPACER TUBE REAR SPRING TO SPRING SHACKLE
47
WASHER REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET
50
NUT , Replaced By: N910113018004
53
SCREW REAR SPRING TO SPRING SHACKLE
56
SHACKLE REAR SPRING TO REAR SPRING REAR BRACKET
56
SHACKLE REAR SPRING TO REAR SPRING REAR BRACKET
57
RUBBER MOUNTING REAR SPRING TO SPRING SHACKLE AND TO SPRING REAR BRACKET
59
PLATE FRONT SPRINGS TO FRONT AXLE
68
U-BOLT REAR SPRING TO REAR AXLE M 16X1,5X210MM
71
SPHERICAL WASHER FRONT SPRINGS TO FRONT AXLE,5 468450
74
NUT REAR AXLE TO TO REAR SPRINGS,B 825283
999
SPRING LEAFNO. 1, TO 688 320 72 06
999
SPRING LEAFNO. 5, TO 688 320 72 06
999
SPRING LEAFNO. 6, TO 688 320 72 06
999
SPRING LEAFNO. 1, TO 688 320 72 06
999
SPRING LEAFNO. 6, TO 688 320 02 06
999
SPRING LEAFNO. 8, TO 688 320 02 06
