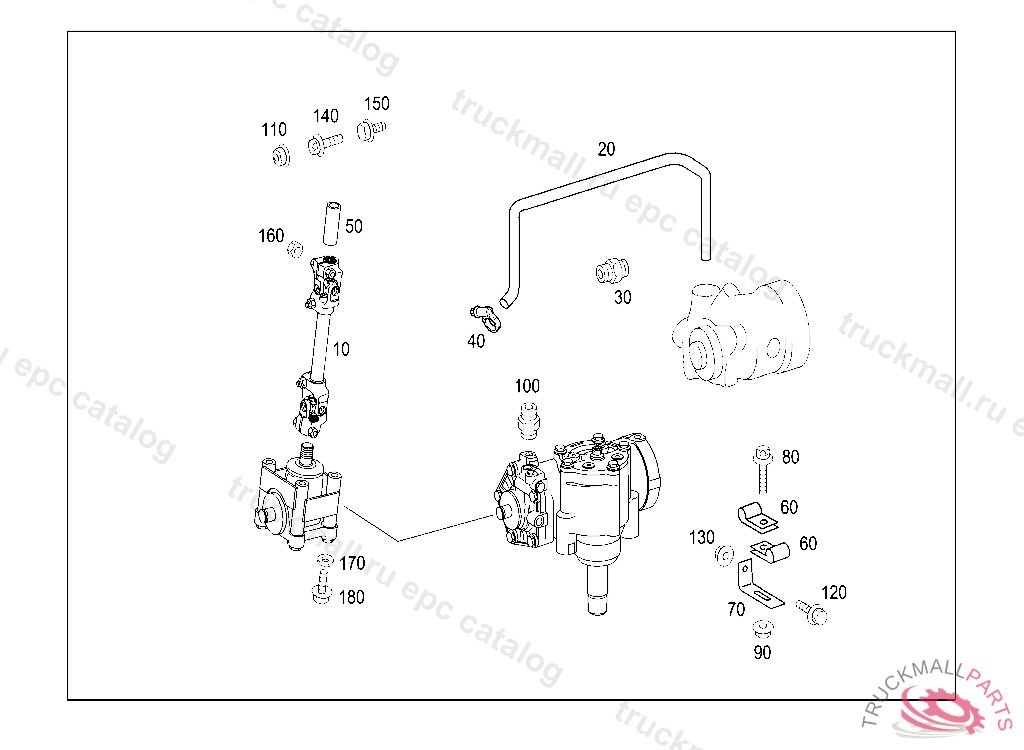

Поз.
Артикул
Описание
10
STEERING SHAFT STEERING WORM SECTOR SHAFT
10
STEERING SHAFT STEERING WORM SECTOR SHAFT
20
HOSE SUCTION LINE CONNECTION, ORDER BY THE METER
20
HOSE , Replaced By: A3859971582
30
FITTING RETURN LINE CONNECTION,225538
40
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
50
HOSE CONNECTION OF OIL FILLER PIPES, ORDER BY THE METER
60
CLAMP DELIVERY AND SUCTION LINES TO STEERING
70
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
80
HEXALOBULAR BOLT LINE MOUNTING M6 X 25
80
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
90
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
100
FITTING BETWEEN THE LINES
110
NUT HEATING PIPE TO BRACKET
120
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
130
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
140
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
150
SCREW BRACKET MOUNTING M6 X 20
160
NUT CROSS MEMBER TO SIDE MEMBERS
170
FITTED WASHER
180
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
